INVENTOR LV6CI-12WiFiR Installationshandbuch Seite 12

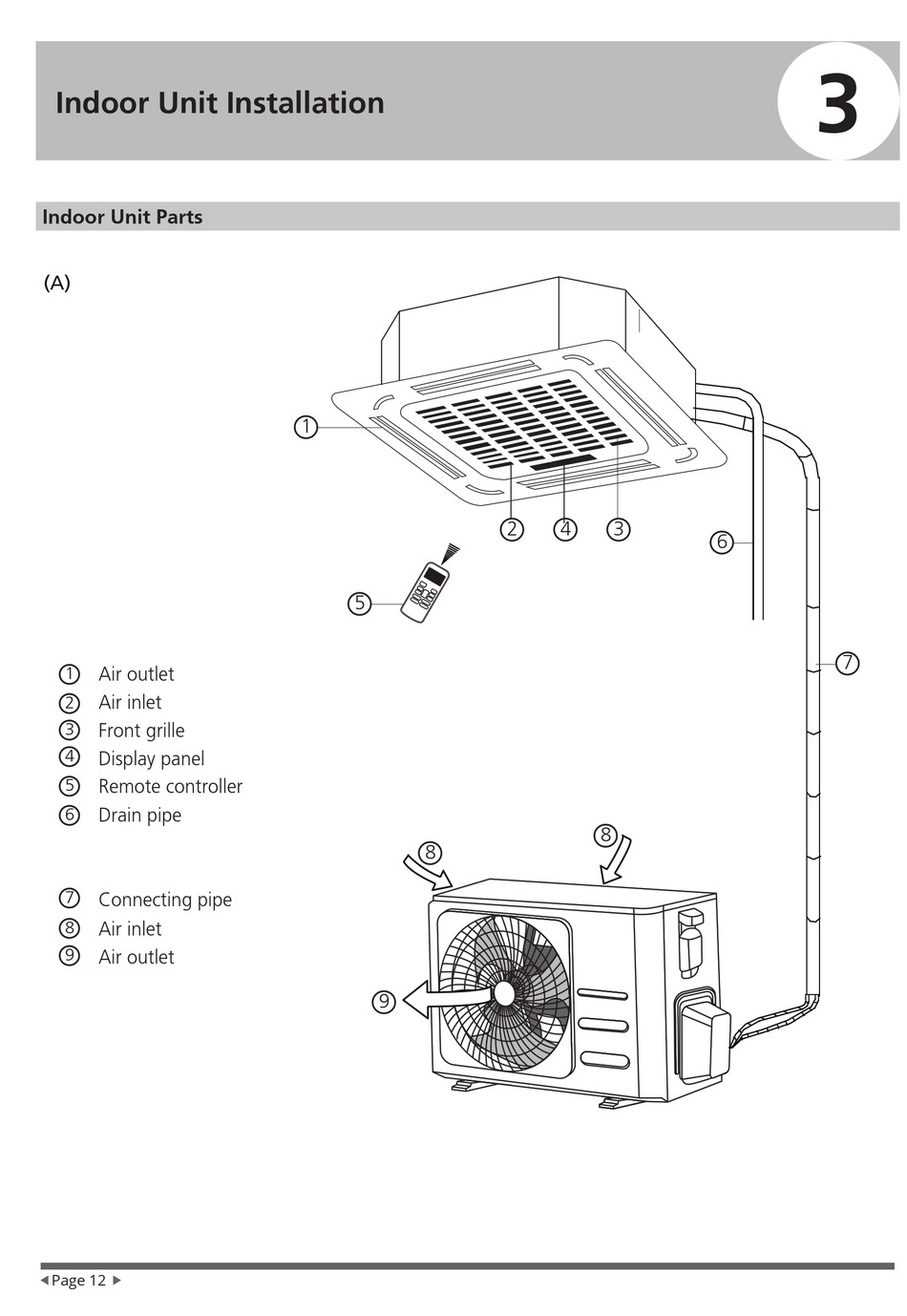

Indoor Unit Installation
Unit Parts
NOTE: The installation must be performed in accordance with the requirement of local and
national standards. The installation may be slightly different in different areas.
Indoor Unit Parts
(A)
Air outlet
1
Air inlet
2
3 Front grille
4
Display panel
5 Remote controller
Drain pipe
6
Safety Precautions
7
Connecting pipe
WARNING
8 Air inlet
9
Air outlet
Securely install the indoor unit on a
•
structure that can sustain its weight. If the
structure is too weak, the unit may fall
causing personal injury, unit and property
damage, or even death.
• Install the indoor unit at a height of more
than 2.5m (8') above the floor.
• DO NOT install the indoor unit in a
bathroom or laundry room as excessive
moisture can short the unit and corrode
the wiring.
ƒPage 12
„
 Page 10 
Drain pump
(within indoor unit)
Drain pipe
1
5
Louver
Display panel
Refrigerant pipe
9
2 4
Front grille
Fig. 3.1
8
CAUTION
• Install the indoor and outdoor units, cables
and wires at least 1m (3.2') from televisions
or radios to prevent static or image
distortion. Depending on the appliances, a
1m (3.2') distance may not be sufficient.
•If the indoor unit is installed on a metal
part of the building, it must be grounded.
3
6
Air outlet
Air inlet
8
3
7
