Right-Sided
Placement
• Axillary crease to right clavicular head. Measure to
the right clavicular head for both left and right-sided
placements.
• Right clavicular head to the right sternal border at the
third intercostal space.
Note: The first intercostals space may be difficult to palpate
due to its proximity to the clavicle.
d. Record External Surface Measurement_______________cm
A. Attach ECG Patient Hub to the three ECG snap leads.
B. Prepare and attach ECG adhesive electrodes per the following
steps.
Caution: ECG adhesive electrodes should be applied only to
intact, clean skin (e.g. not over open wounds, lesions, infected
or inflamed areas). For best results use the supplied ECG
adhesive electrodes.
• Attach ECG adhesive electrodes to all three ECG snap leads.
•
Remove backing and press ECG adhesive electrodes firmly onto
skin at the specified locations.
Warning: Place ECG adhesive electrodes carefully at locations
indicated in these Instructions for Use and ensure good skin-
electrode contact. Failure to do so may cause unstable ECG
waveforms and/or ECG waveforms that are not described in
these Instructions for Use.
• Black ECG snap lead/adhesive electrode on the patient's left
upper chest.
• Red ECG snap lead/adhesive electrode on patient's lower left
side, inferior to the umbilicus and laterally along the mid-
axillary line.
Caution: Placement of red electrode outside of this region may
result in reduced ECG performance.
White

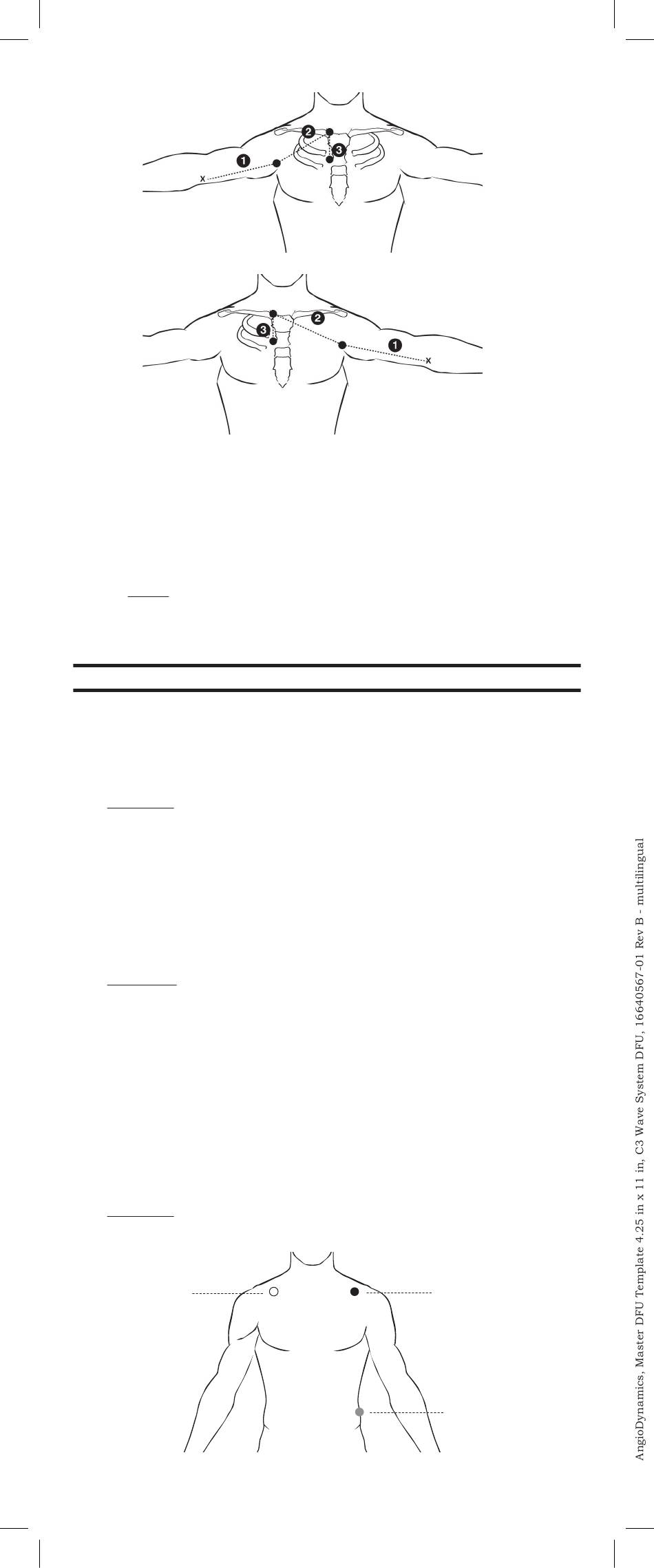

Figure 1. Measured Path
PREPARE ELECTRODES
Figure 2. Electrode Locations
- 3 -
Left-Sided
Placement
Black
Red
