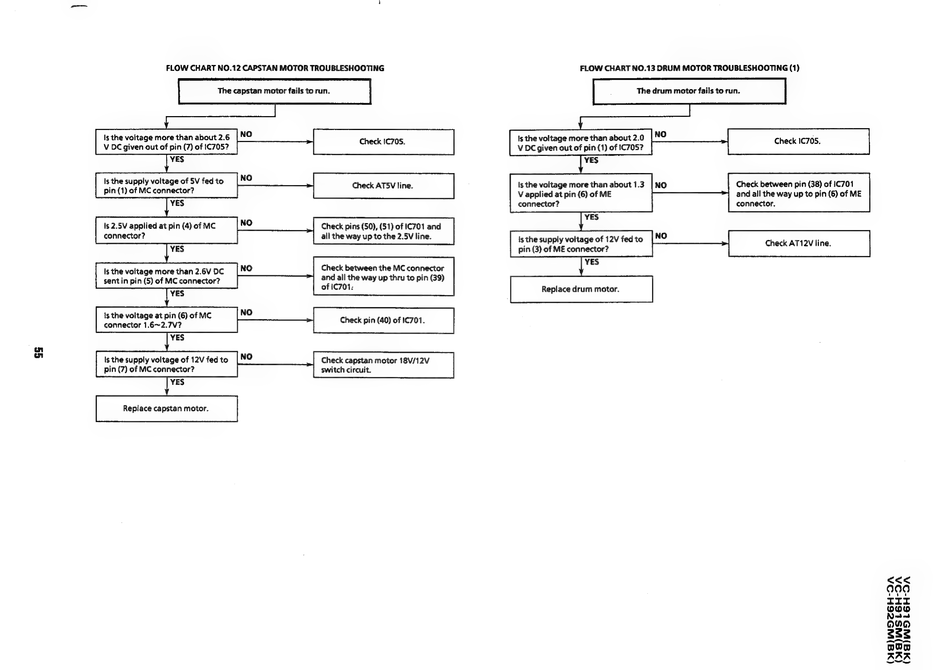

FLOW CHART NO.12 CAPSTAN MOTOR TROUBLESHOOTING
The capstan motor fails to run.
Is the voltage more than about 2.6
NO
V DC given out of pin (7) of 1C705?
YES
ls the supply voltage of SV fed to
NO
pin (1) of MC connector?
YES
Is 2.5V applied at pin (4) of MC
NO
connector?
YES
Is the voltage more than 2.6V DC
N
sent in pin (5) of MC connector?
YES
Is the voltage at pin (6) of MC
N
connector 1.6~2.7V?
YES
Is the supply voltage of 12V fedto
|N
pin (7) of MC connector?
YES
Replace capstan motor.
[)
[e)
[e]
Check IC705.
Check AT5V line.
Check pins (50), (51) of IC701 and
ail the way up to the 2.5V line.
Check between the MC connector
and all the way up thru to pin (39)
of 1€701:
Check pin (40) of IC701.
Check capstan motor 18V/12V
switch circuit.
FLOW CHART NO.13 DRUM MOTOR TROUBLESHOOTING (1)
The drum motor fails to run.
Check 1C705.
Check between pin (38) of 1C701
and all the way up to pin (6) of ME
connector.
Check AT12V line.
o
Is the voltage more than about 2.
V DC given out of pin (1) of C705?
Is the voltage more than about 1.3 | NO
V applied at pin (6) of ME
connector?
1s the supply voltage of 12V fed to
pin (3) of ME connector?
YES
Replace drum motor.
