Ref. No. Part No. * Description Code

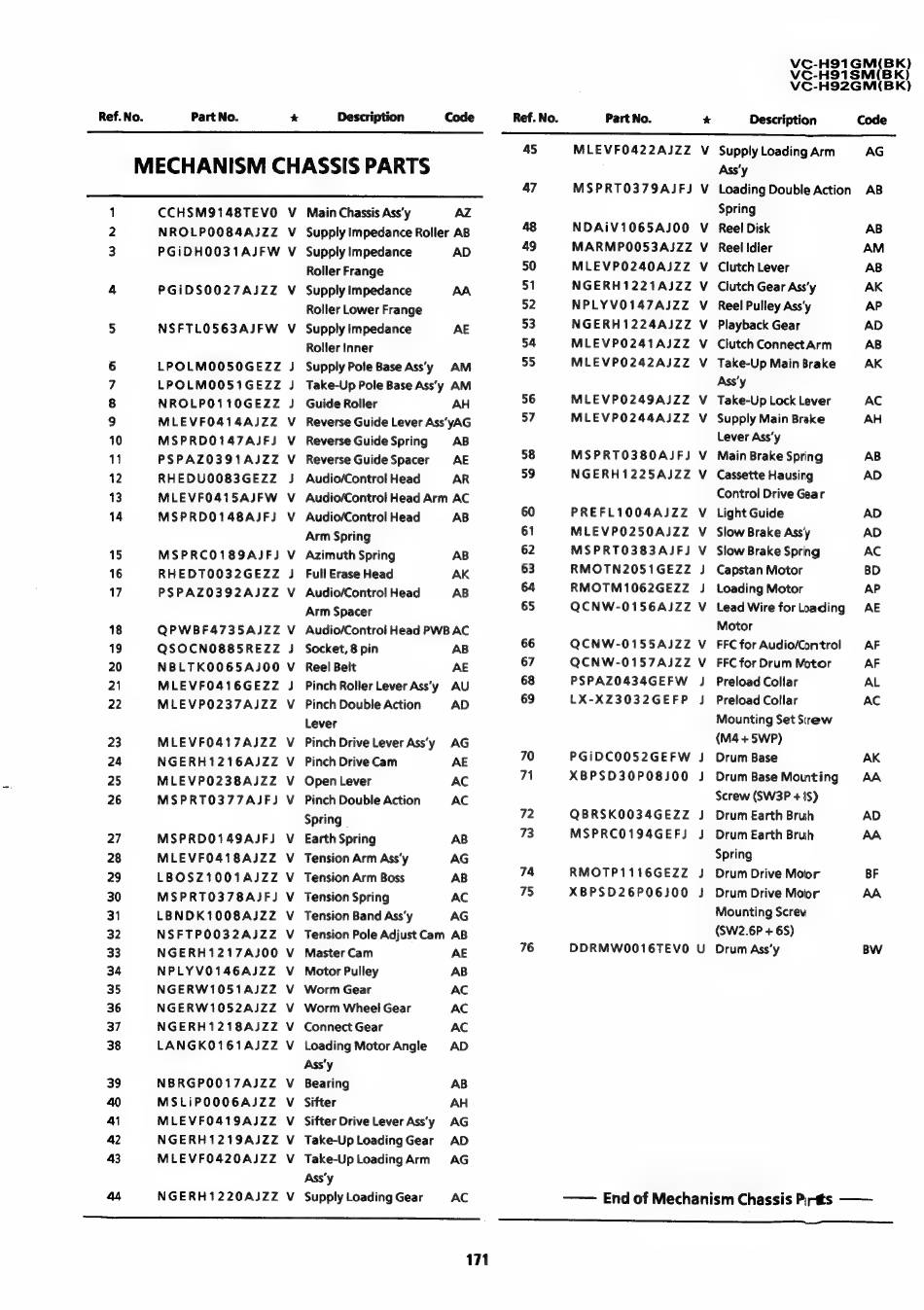

MECHANISM CHASSIS PARTS
1 CCHSM9148TEVO V Main Chassis Ass'y AZ
2 NROLPOO84AJZZ V_ Supply Impedance Roller AB
3 PGiIDHOO31AJFW V Supply Impedance AD
Roller Frange
4 PGiDS0027AJZZ V_ Supply Impedance AA
Roller Lower Frange
5 NSFTLOS63AJFW V Supply impedance AE
Roller Inner
6 LPOLMOOSOGEZZ J Supply Pole Base Ass'y AM
7 LPOLMOOS1GEZZ J Take-Up Pole Base Ass''y AM
8 NROLPO110GEZZ J Guide Roller AH
9 MLEVFO414AJZZ V_ Reverse Guide Lever Ass'yAG
10 MSPRDO147AJFJ V_ Reverse GuideSpring AB
11 PSPAZ0391AJZZ V ReverseGuideSpacer AE
12 RHEDUO083GEZZ 3 Audio/Control Head AR
13 MLEVFO415AJFW V_ Audio/Control Head Arm AC
14 MSPRDO148AJFJ V_ Audio/Control Head AB
Arm Spring
15 MSPRCO189AJFJ V Azimuth Spring AB
16 RHEDT0032GEZZ J Full Erase Head AK
17 PSPAZ0392AJZZ V_ Audio/Control Head AB
Arm Spacer
18 QPWBF473S5AJZZ V_ Audio/Controi Head PWB AC
19 QSOCNO885REZZ J Socket,8 pin AB
20 NBLTKOO65AJ00 V Reel Belt AE
21 MLEVF0416GEZZ J PinchRoller Lever Ass''y AU
22 MLEVP0237AJZZ V_ Pinch Double Action AD
Lever
23 MLEVF0417AJZZ V Pinch Drive Lever Ass'y AG
24 NGERH1216AJZZ V Pinch Drive Cam AE
25 MLEVP0238AJZZ V OpenLever AC
26 MSPRT0377AJFJ V_ Pinch Double Action AC
Spring |
27 MSPRDO149AJFJ V_ Earth Spring AB
28 MLEVF0418AJZZ V_ Tension Arm Ass'y AG
29 LBOSZ1001AJZZ V_ Tension Arm Boss AB
30 MSPRTO378AJFJ V_ Tension Spring AC
31 LBNDK1008AJ5ZZ V_ Tension Band Ass'y AG
32 NSFTP0032AJZZ V_ Tension Pole Adjust Cam AB
33 NGERH1217AJ00 V MasterCam AE
34 NPLYV0146AJZZ V Motor Pulley AB
35 NGERW1051AJZZ V Worm Gear AC
36 NGERW1052AJZZ V Worm Wheel Gear AC
37 NGERH1218AJZZ V_ Connect Gear AC
38 LANGKO161AJZZ V_ Loading MotorAngle AD
Ass'y
39 NBRGPOO17AJZZ V Bearing AB
40 MSLiPOOO6AJjZZ V Sifter AH
4 MLEVF0419AJZZ V Sifter Drive Lever Ass'y AG
42 NGERH1219AJZZ V_ Take-UpLoadingGear AD
43 MLEVFO420AJZZ V Take-UpLoadingArm AG
Ass'y
44 NGERH1220AJZZ V_ Supply Loading Gear AC
171
VC-H91GM(BK)
VC-H91SM(BK)
VC-H92GM(BK)
Ref. No. Part No. * Description Code
45 MLEVF0422AJZZ V Supply Loading Arm AG
Ass'y
47 MSPRTO379AJFJ V_ Loading Double Action AB
Spring
48 NDAiV1065AJ00 V Reel Disk AB
49 MARMPO0053AJZZ V_ Reelidiler AM
50 MLEVP0240AJZZ V Clutch Lever AB
51 NGERH1221AJZZ V_ Clutch Gear Assy AK
52 NPLYVO147AJZZ V Reel Pulley Ass'y AP
53 NGERH1224AJZZ V_ Playback Gear AD
54 MLEVP0241AJZZ V_ Clutch ConnectArm AB
55 MLEVP0242A5ZZ V_ Take-Up Main Brake AK
Ass'y
56 MLEVP0249AJZZ V_ Take-Up Lock Lever AC
57 MLEVP0244AJZZ V_ Supply Main Brake AH
Lever Ass'y
58 MSPRTO380AJFJ V Main Brake Spring AB
59 NGERH1225AJZZ V Cassette Hausing AD
Control Drive Gear
60 PREFL1004AJZZ V Light Guide AD
61 MLEVPO250AJZZ V Slow Brake Assy AD
62 MSPRT0383AJFJ V Slow Brake Spring AC
63 RMOTN2051GEZZ J Capstan Motor BD
64 RMOTM1062GEZZ J Loading Motor AP
65 QCNW-0156AJZZ V Lead Wire forlLoading AE
Motor
66 QCNW-0155AJZZ V FFCforAudio/Control AF
67 QCNW-0157AIZZ V_ FFC for Drum Motor AF
68 PSPAZO434GEFW J Preload Collar AL
69 LX-XZ3032GEFP J Preload Collar AC
Mounting Set Sirew
(M4 + 5WP)
70 PGiDCOOS2GEFW J Drum Base AK
71 XBPSD30P08J00 J DrumBase Mounting AA
Screw (SW3P + {S)
72 QBRSKO034GEZZ J Drum Earth Bruh AD
73 MSPRCO194GEFJ J DrumEarth Bruh AA
Spring
74 RMOTP1116GEZZ J Drum Drive Moor BF
75 XBPSD26P06J00 J Drum Drive Moir AA
Mounting Screw
(SW2.6P + 6S)
76 DDRMWOO016TEVO U Drum Ass'y BW
—— End of Mechanism Chassis Pir-tts ——
