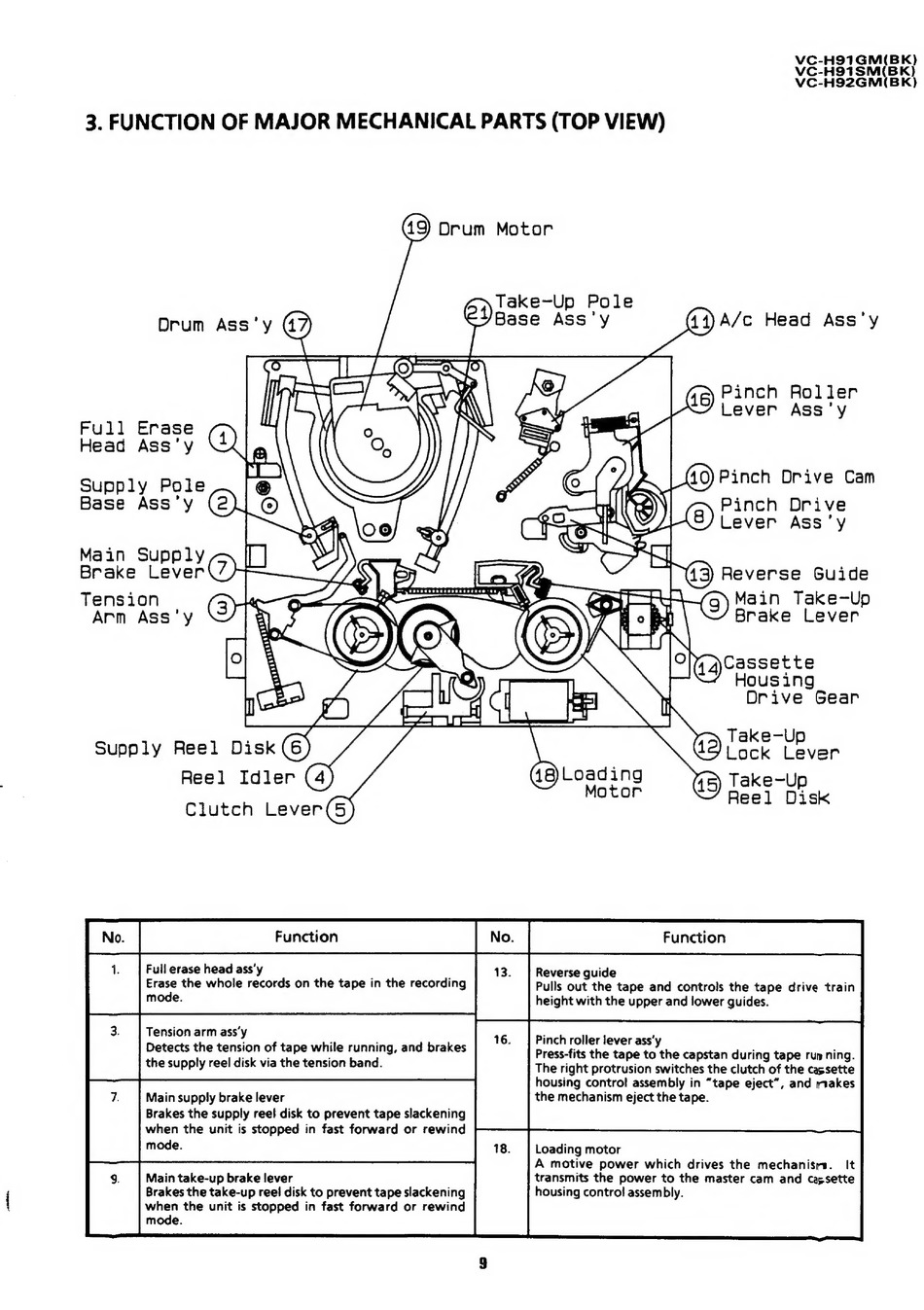

3. FUNCTION OF MAJOR MECHANICAL PARTS (TOP VIEW)
Full
Erase
Head
Ass'y
Supply
Pole
Base
Ass'y
Main
Supply
Brake
Tension
Arm
Ass'y
Supp
Drum Ass'y (47)
Lever
ly Reel
Disk (6)
Reel Idler (4)
Clutch Lever(5)
Full erase head ass'y
Erase the whole records on the tape in the recording
mode.
Tension arm ass'y
Detects the tension of tape while running, and brakes
the supply reel disk via the tension band.
Main supply brake lever
Brakes the supply reel disk to prevent tape slackening
when the unit is stopped in fast forward or rewind
mode.
Main take-up brake lever
Brakes the take-up reel disk to prevent tape slackening
when the unit is stopped in fast forward or rewind
mode.
Take-Up
Pole
LL
w/
49 Drum
Motor
(44) A/c Head Ass'y
Lever
Ass'y
Pinch
Drive
Lever
Ass'y
Cassette
Housing
Take-Up
Lock
Lever
Take-Up
Reel
Disk
Reverse guide
Pulls out the tape and controls the tape drive train
height with the upper and lower guides.
Pinch roller lever ass'y
Press-fits the tape to the capstan during tape running.
The right protrusion switches the clutch of the cassette
housing control assembly in "tape eject", and makes
the mechanism eject the tape.
Loading motor
A motive power which drives the mechanisrs.
It
transmits the power to the master cam and cassette
housing control assembly.
Pinch
Roller
Main
Take-Up
Brake
Lever
Drive
Gear
