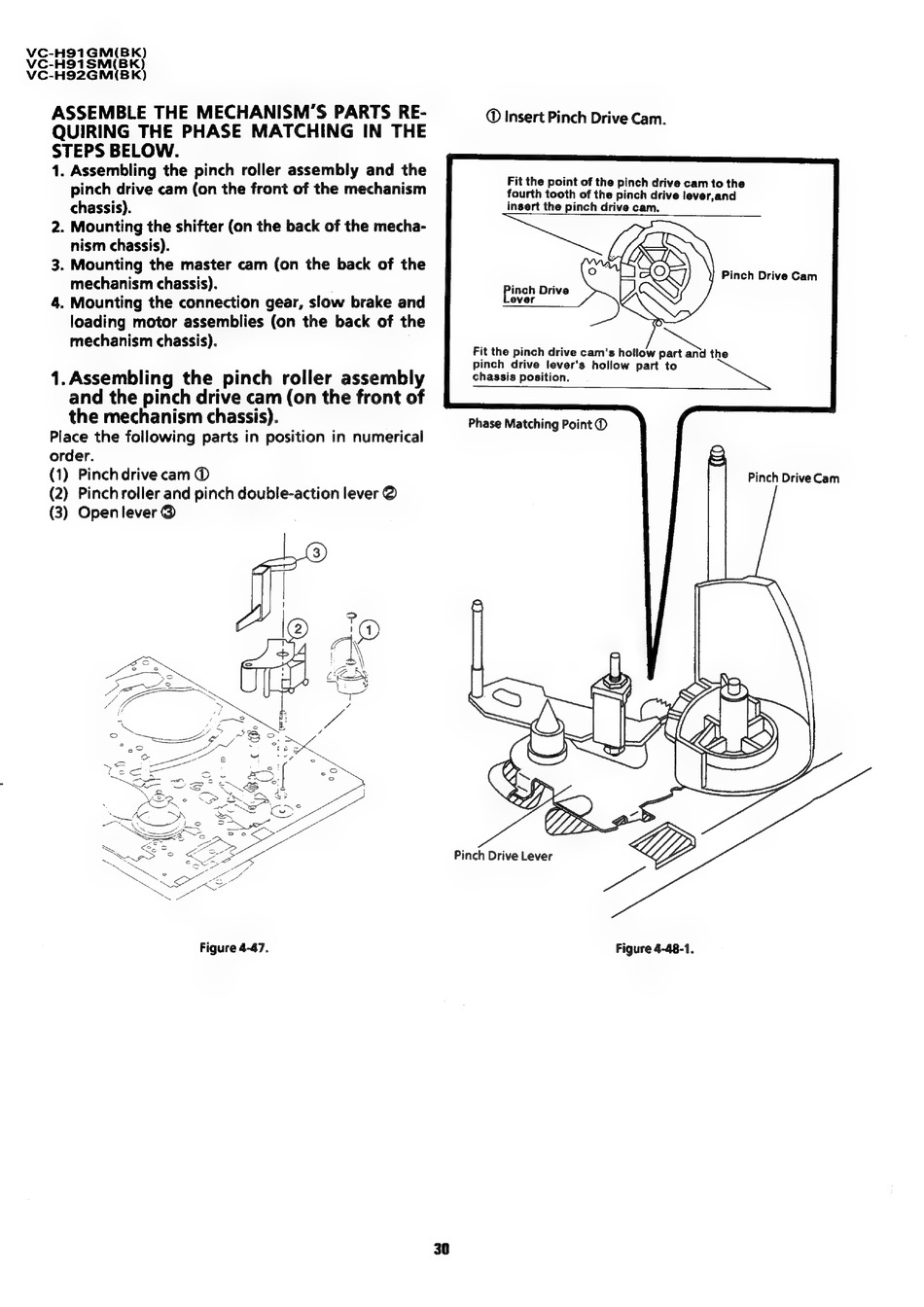

ASSEMBLE THE MECHANISM'S
PARTS RE-
© Insert Pinch Drive Cam.
QUIRING THE PHASE
MATCHING
IN THE
STEPS BELOW.
1. Assembling the pinch roller assembly and the
Een
rare
ee
tae cam (on the front of the mechanism
fourth tooth of the pinch pl contatie
cnassis).
inse
e pinch
drive cam.
2. Mounting the shifter (on the back of the mecha-
nism chassis).
3. Mounting the master cam (on the back of the
mechanism chassis).
4. Mounting the connection gear, slow brake and
loading motor assemblies (on the back of the
mechanism chassis).
Pinch Drive Cam
finch Drive
ever
Fit the pinch drive cam's hollow part and the
pinch drive lever's hollow
part to
1.Assembling the pinch roller assembly
chassis position.
and the pinch drive cam (on the front of
the mechanism chassis).
==
Phase Matching Point @
Place the following parts in position in numerical
order.
(1) Pinch drive cam @
Pinch DriveCam
(2) Pinch roller and pinch double-action lever @
(3) Openlever @
Figure 4-47.
Figure 4-48-1.
