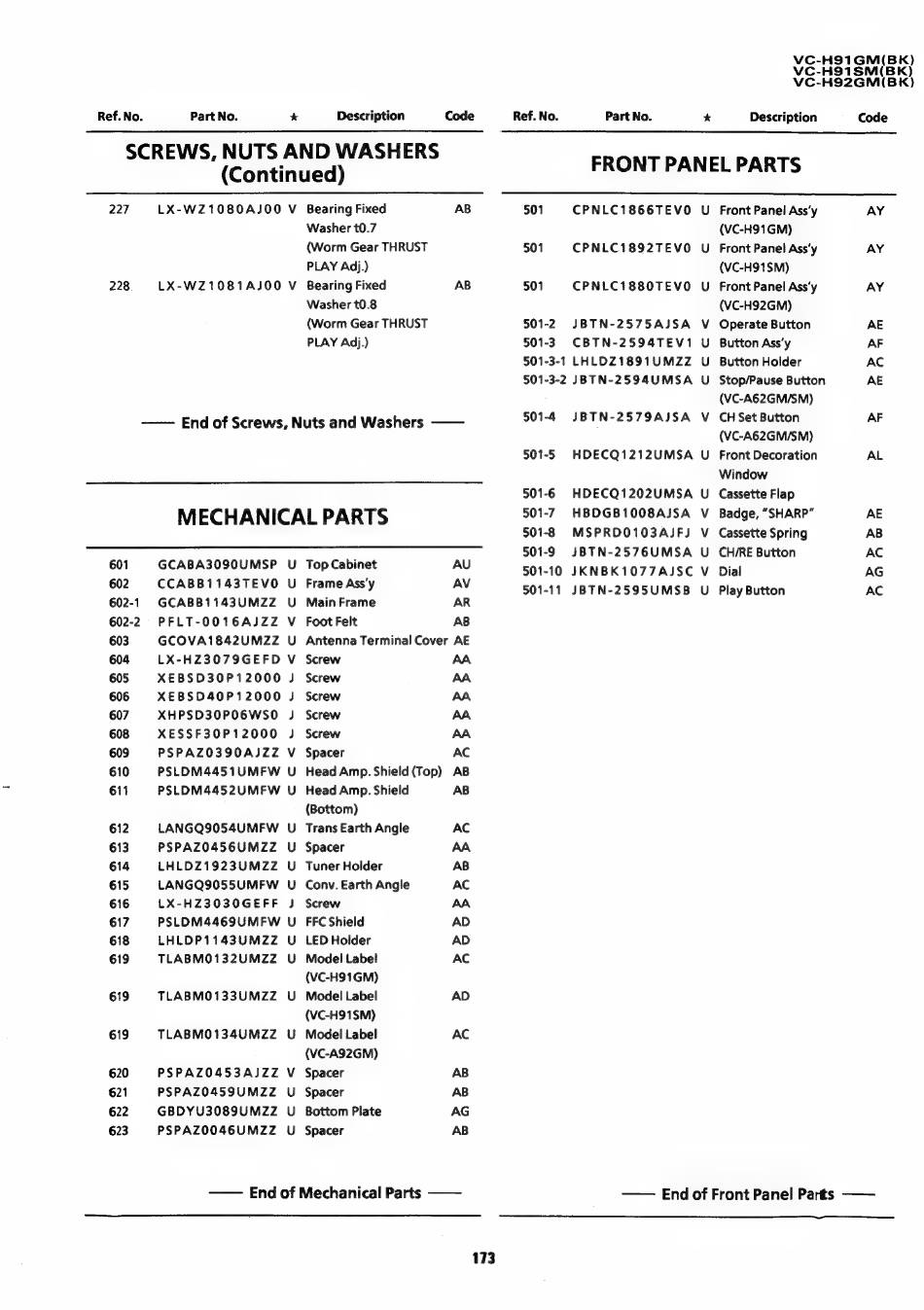

Sharp VC-H92HM Serviceanleitung Seite 162

Ref. No.
Part No. *
Description Code
SCREWS, NUTS AND WASHERS
(Continued)
227 LX-WZ1080AJ00 V Bearing Fixed AB
Washer t0.7
(Worm Gear THRUST
PLAY Adj.)
228 LX-WZ1081AJ00 V_ Bearing Fixed AB
Washer t0.8
(Worm Gear THRUST
PLAY Adj.)
—— End of Screws, Nuts and Washers ——
MECHANICAL PARTS
601 GCABA3090UMSP U TopCabinet AU
602 CCABB1143TEVO U Frame Ass'y AV
602-1 GCABB1143UMZZ U MainFrame AR
602-2 PFLT-0016AJZZ V FootFelt AB
603 GCOVA1842UMZZ U Antenna Terminal Cover AE
604 LX-HZ3079GEFD V Screw AA
605 XEBSD30P12000 J Screw AA
606 XEBSD40P12000 J Screw AA
607 XHPSD30PO6WSO J Screw AA
608 XESSF30P12000 J Screw AA
609 PSPAZ0390AJZZ V Spacer AC
610 PSLDM4451UMFW U HeadAmp.Shield(Top) AB
611 PSLDM4452UMFW U Head Amp. Shield AB
(Bottom)
612 LANGQ9054UMFW U Trans Earth Angle AC
613 PSPAZO456UMZZ U Spacer AA
614 LHLDZ1923UMZZ U Tuner Holder AB
615 LANGQSOS55UMFW U Conv. Earth Angle AC
616 LX-HZ3030GEFF J Screw AA
617 PSLDM4469UMFW U FFCShield AD
618 LHLDP1143UMZZ U LEDHolder AD
619 TLABM0132UMZZ U Model Label AC
(VC-H91GM)
619 TLABM0133UMZZ U Model Label AD
(VC-H91SM)
619 TLABM0134UMZZ U Model Label AC
(VC-A92GM)
620 PSPAZ0453AJZZ V Spacer AB
621 PSPAZO459UMZZ U Spacer AB
622 GBDYU3089UMZZ U Bottom Plate AG
623 PSPAZO046UMZZ U Spacer AB
— End of Mechanical Parts ——
173
VC-H91GM(BK)
VC-H91SM(BK)
VC-H92GM(BK)
Ref. No. Part No. * Description Code
FRONT PANEL PARTS
501 CPNLC1866TEVO U Front Panel Ass'y AY
(VC-H91GM)
501 CPNLC1892TEVO U FrontPanel Ass'y AY
(VC-H91SM)
501 CPNLC1880TEVO U FrontPanel Ass'y AY
(VC-H92GM)
501-2 JBTN-2575AJSA V Operate Button AE
501-3 CBTN-2594TEV1 U Button Ass'y AF
501-3-1 LHLDZ1891UMZZ U Button Holder AC
501-3-2 JBTN-2594UMSA U Stop/Pause Button AE
(VC-A62GM/SM)
501-4 JBTN-2579AJSA V CHSet Button AF
(VC-A62GM/SM)
501-5 HDECQ1212UMSA U Front Decoration AL
Window
501-6 HDECQ1202UMSA U Cassette Flap
501-7 HBDGB1008AJSA V Badge, "SHARP" AE
501-8 MSPRDO103AJFJ V Cassette Spring AB
501-9 JBTN-2576UMSA U CH/RE Button AC
501-10 JKNBK1077AJSC V Dial AG
501-11 JBTN-2595UMSB U Play Button AC
—— End of Front Panel Parts ——
