VC-H91GM(BK)
VC-H91SM(BK)
VC-H92GM(BK)

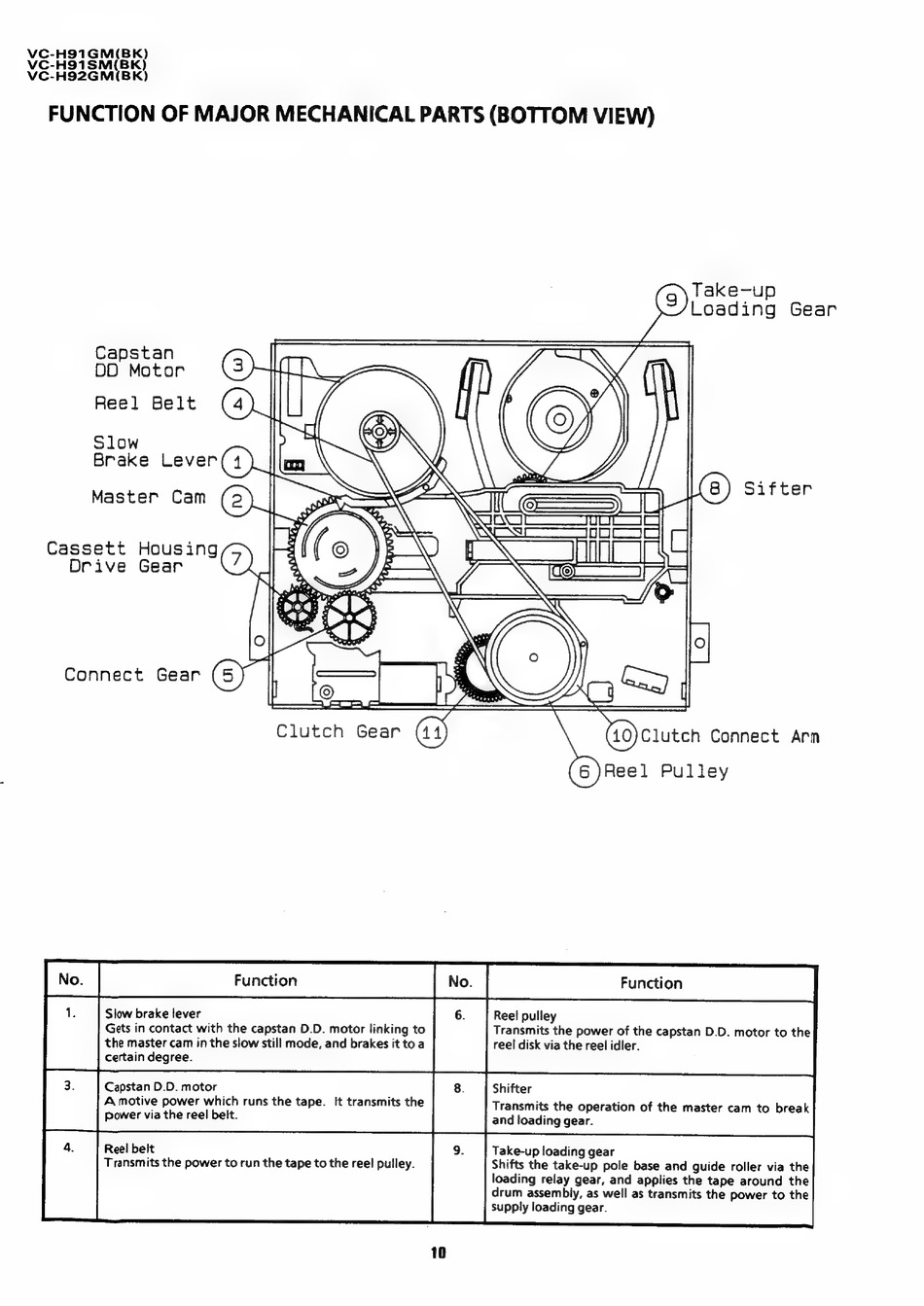

FUNCTION OF MAJOR MECHANICAL PARTS (BOTTOM VIEW)
Take-up
Loading Gear
Capstan
DD Motor
Reel Belt
Slow
Brake Lever @&
Cassett Housing
Drive Gear
(140) Clutch Connect Arm
(6)Reel Pulley
Function
Slow brake lever Reel pulley
certain degree.
Capstan D.D. motor Shifter
A motive power which runs the tape. It transmits the
power via the reel belt.
Reel belt
Transmits the power to run the tape to the reel pulley.
Take-up loading gear
Shifts the take-up pole base and guide roller via the
loading relay gear, and applies the tape around the
drum assembly, as well as transmits the power to the
supply loading gear.
