St

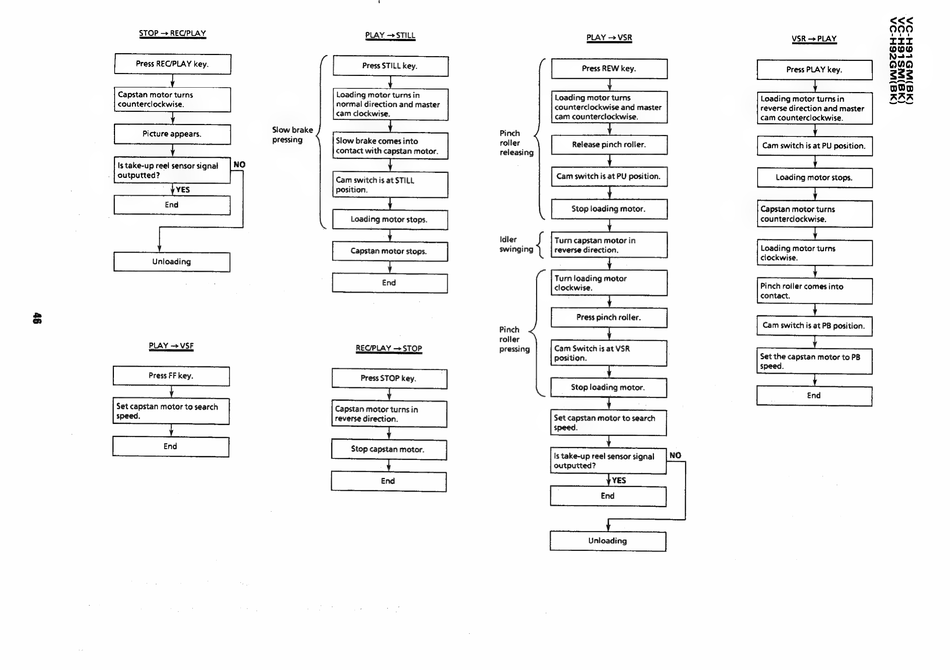

STOP —> REC/PLAY
Press REC/PLAY key.
Capstan motor turns
counterclockwise.
Picture appears.
Is take-up reel sensor signal
|NO
outputted?
PLAY —> VSF
Press FF key.
Set capstan motor to search
speed.
Release pinch roller.
Cam switch is at PU position.
Stop loading motor.
Turn capstan motor in
reverse direction.
Turn loading motor
clockwise.
Press pinch roller.
Cam Switch is at VSR
position.
Stop loading motor.
Set capstan motor to search
speed.
Is take-up reel sensor signal
outputted?
YES
Loading motor turns
counterclockwise and master
Cam switch is at STILL
cam counterclockwise.
position.
Loading motor stops.
Idler
Capstan motor stops.
swinging
Pinch
roller
REC/PLAY —> STOP
pressing
Press STOP key.
Capstan motor turns in
reverse direction.
Stop capstan motor.
Unloading
VSR —» PLAY
Press PLAY key.
Loading motor turns in
reverse direction and master
cam counterclockwise.
Cam switch is at PU position.
Loading motor stops.
Capstan motor turns
counterclockwise.
Loading motor turns
clockwise.
Pinch roller comes into
contact.
Cam switch is at PB position.
Set the capstan motor to PB
speed.
