Electric features of VMF-REB expansions
Terminal
M9 NTC probe input
M10.AI3 ÷ M10.AI4 NTC probe input
M10.AI5 Analog input 4÷20 mA
M10.AI6 Analog input 0÷10 V
M11 (OUT1/2/3) Analog outputs 0÷10 V/ PWM
M11 (+24V) Auxiliary voltage
M12 Digital inputs
M5 Digital inputs
M6 Digital inputs
RS485 serial port
M7
(for connection to bus)
RS485 serial port
M8
(Not used)
M2 (O1, O2, O3, O4, O5, O6) Triac outputs
M4 (O10, O11, O12) Triac outputs
M3 (O7, O8) Triac outputs
M3 (O9) Clean contact output from relay
M1 Board power supply input

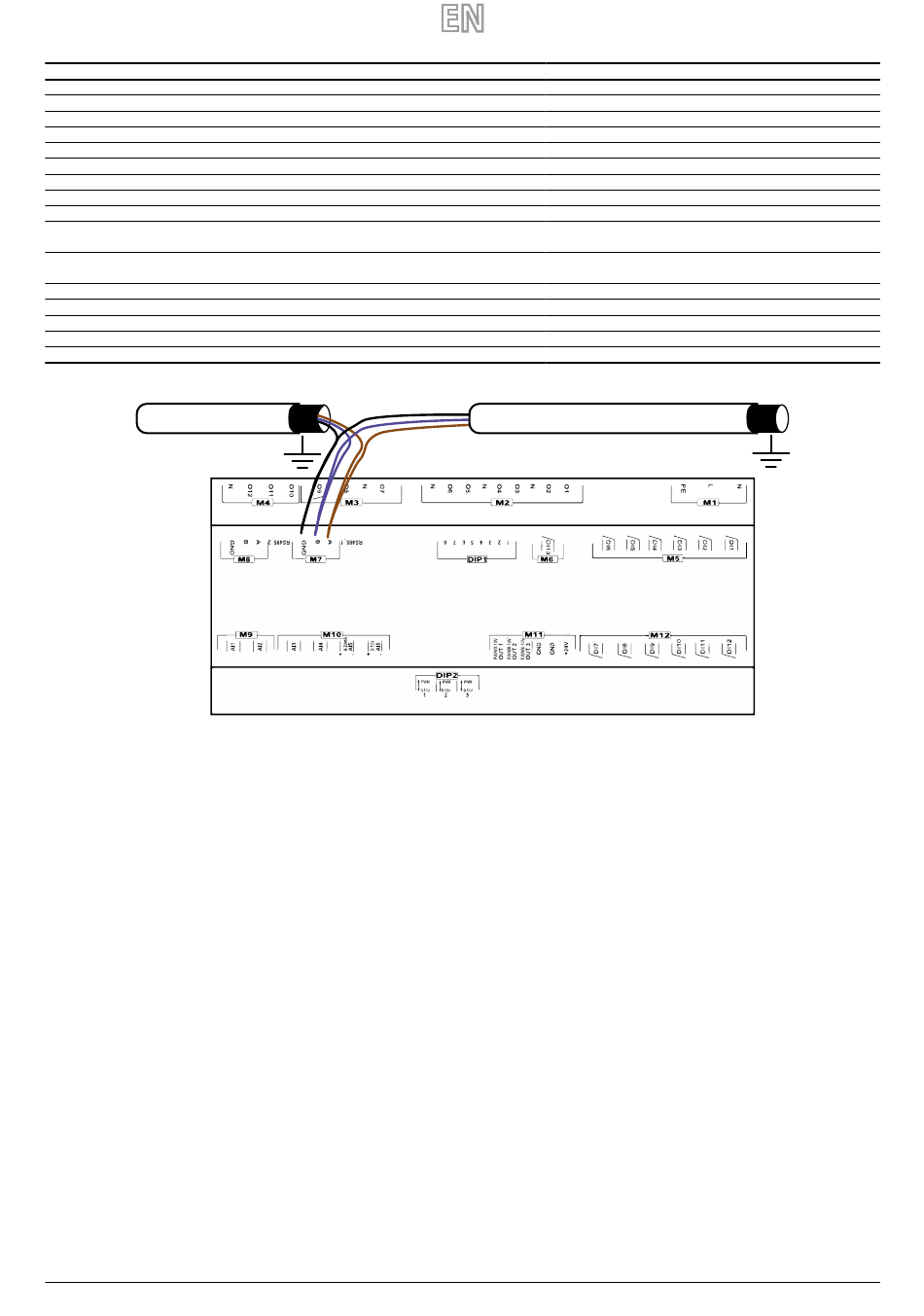

Serial connection to VMF-REB expansions
70
Description

Electrical characteristics

R(25°C) = 10Kohm, B(25°/50°C)= 950K
R(25°C) = 10Kohm, B(25°/50°C)= 950K
I max 20 [mA]
V max 10 [V]
V max 12 [V] / I max 2 [mA]
V 24[V] / I max 125 [mA]
V max 12 [V] / I max 10 [mA]
V max 12 [V] / I max 10 [mA]
V max 12 [V] / I max 10 [mA]
V max −9 [V] ÷ +14 [V]
V max −9 [V] ÷ +14 [V]
V max 230 [V]/ I max 100 [mA]
V max 230 [V]/ I max 0.7 [A]
V max 230 [V]/ I max 100 [mA]
V max 250 [V]/ I max 6 [A]
V max 230 [V]/ I max 5 [A]
