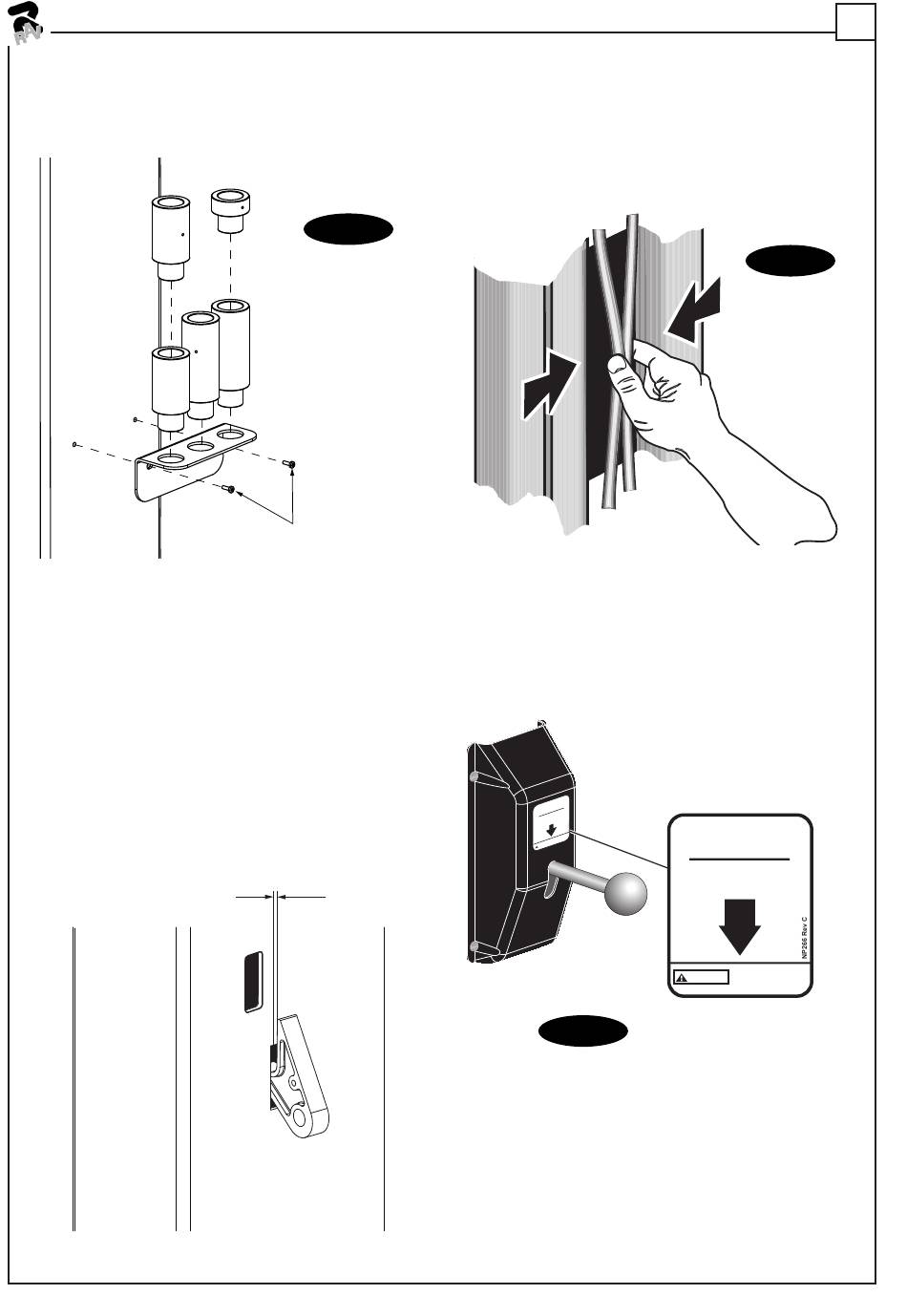

21. Exterior Adapters: Install adapter bracket
to outside of each column using (2) 5/16"-18NC x
3/8" PHMS. Then, add adapters to the bracket as
shown, Fig. 29.

22. Latch Cable Adjustment:

A) Check to make sure the latch will properly
engage and disengage. Slowly release the
latch handle. A 1/8" gap between the top of the
latch dog and the column is allowable, Fig. 30.
B) When raising, listen to latches to be sure that
both latch dogs fall into latch slots. If they
do not, loosen clamp and adjust tension as
necessary.
C) Install left latch cover using 5/16-18NC x 3/8"
lg PHMS.
1/8" (3mm) Gap
48
Fig. 28
5/16"-18NC x 3/8" PHMS
23. Equalizer Cable Adjustment: Raise lift to
check equalizer cable tension. Below carriage, grasp
adjacent cables between thumb and foreinger, with
about 6.8kg. effort you should just pull the cables
together, Fig. 31. Adjust at upper tie-offs Fig. 17.
24. Latch Release Decal: Install latch release
decal on cover above latch release handle, Fig. 32.
ff
if t O
e L
R a is h e s
L a tc s e
e le a
T o R
a te h e s
A c tu L a tc
t
o in
c h P
P in
N
TI O
C A U
Fig. 30
Fig. 32
25. Pressure Test: Run lift to full rise and keep
motor running for 5 seconds. Stop and check all hose
connections. Tighten or reseal if required. Repeat air
bleeding of cylinders.
0496-M005-0
Fig. 29
Raise Lift Off
Latches
Actuate To Release
Latches
Pinch Point
CAUTION
