RAVAGLIOLI KPH-40ECGA Installationshandbuch Seite 39

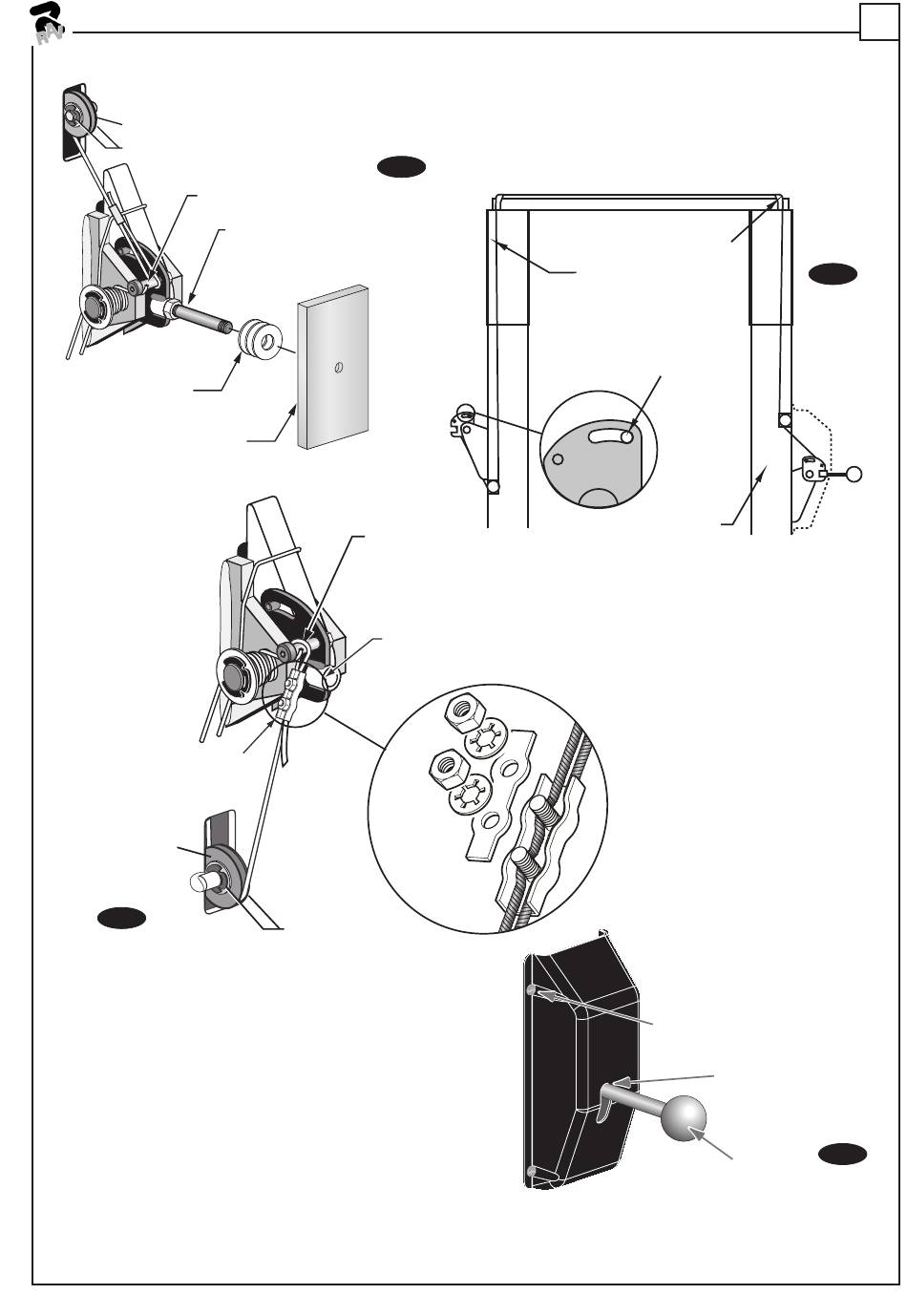

Latch Cable Sheave
(2) 3/8" Retaining Rings
Shoulder Bolt
(3) 3/8" Flat Washers
Slot Cover
Cable Clamp
Latch Cable Sheave
Fig. 21
Fig. 19
Install Latch Handle using a 3/8"
hex jam nut to lock in place. Then
install flat washers and slot cover.
Shoulder Bolt
Feed cable up through Cable
Clamp, loop over end of
shoulder bolt and feed back
down through Cable Clamp.
(2) 3/8" Retaining
Rings
Latch Cable
0496-M005-0
Latch Cable Guide
Notice the clearance
removed between
Control Plate Slot
and Latch Dog Pin.
Right Column
5/16-18NC x 3/8" lg. PHMS
Latch handle MUST be
positioned at the top of
the latch control cover .
Ball Handle
Fig. 20
Fig. 22
39
