NOTE: TOP is stamped on top side of gear. You
may need to pull up on the pin to allow enough
room to install Restraint Gear.

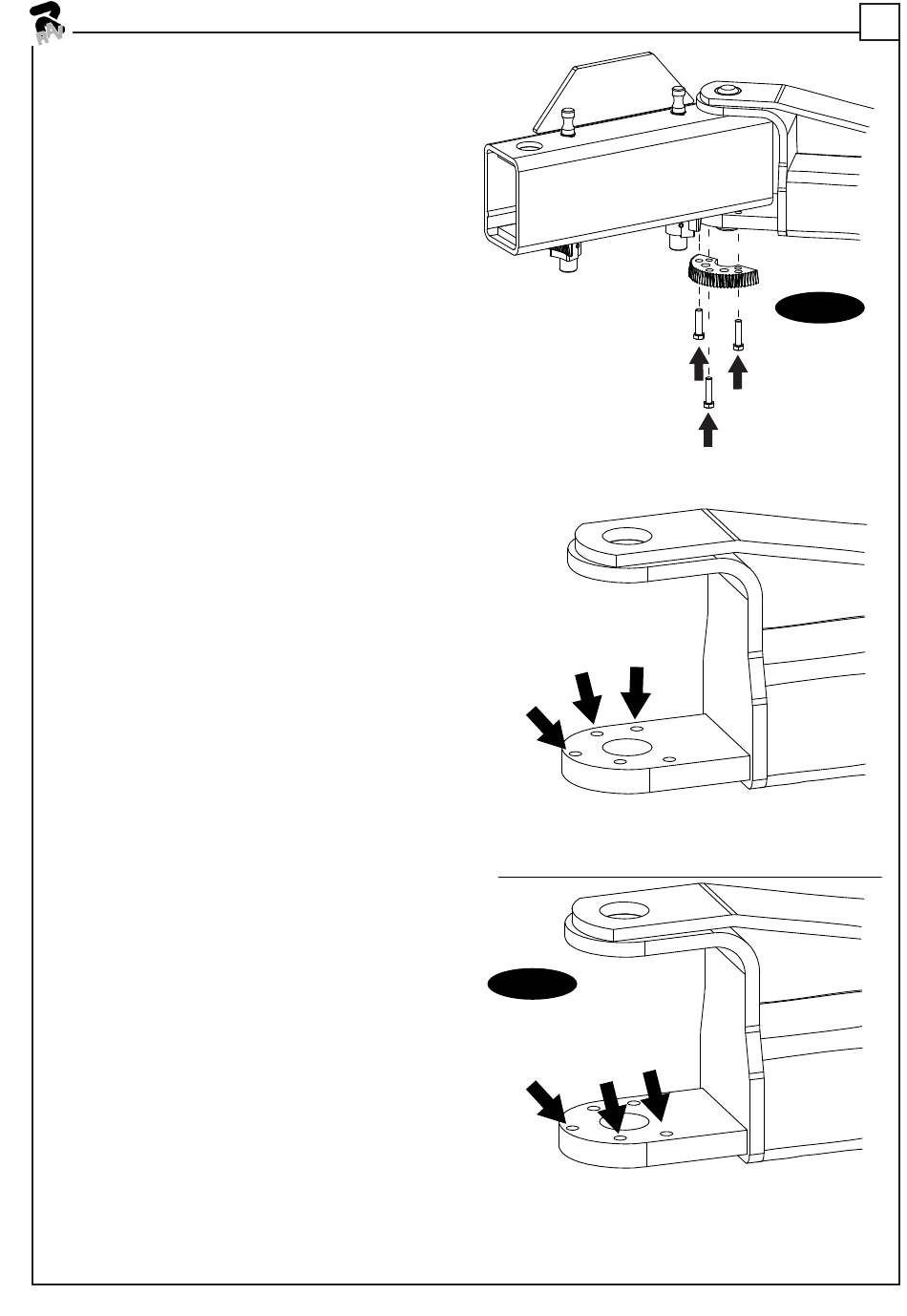

Arms With 5 Holes In Bearing Bars: Then, install
the (3) 3/8"-16NC x 1-1/2" Lg. HHCS ((12) total for
all (4) arms) into the gear and arm. Reference Fig.
26b and Fig. 27.
Torque the Restraint Gear bolts to 30-34 ft.-lbs.
(41-46 Nm).
NOTE: To check operation of arm restraints, raise
carriage 1" (25mm) min. from full down
position. Pull up on pin and adjust arms
to desired position. To engage restraint, let
pin-ring down allowing gear teeth to mesh
together. It may be necessary to rotate arm
slightly to engage gear teeth.
NOTE: Pin, Spring, & Gear Block are all pre-
assembled.
A
A
Use holes marked "A" for Right Front
and Left Rear.
Fig. 27
A
A
Use holes marked "A" for Left Frontand Right Rear.
0496-M005-0
Fig. 26b
A
A
