Equalizing Cables

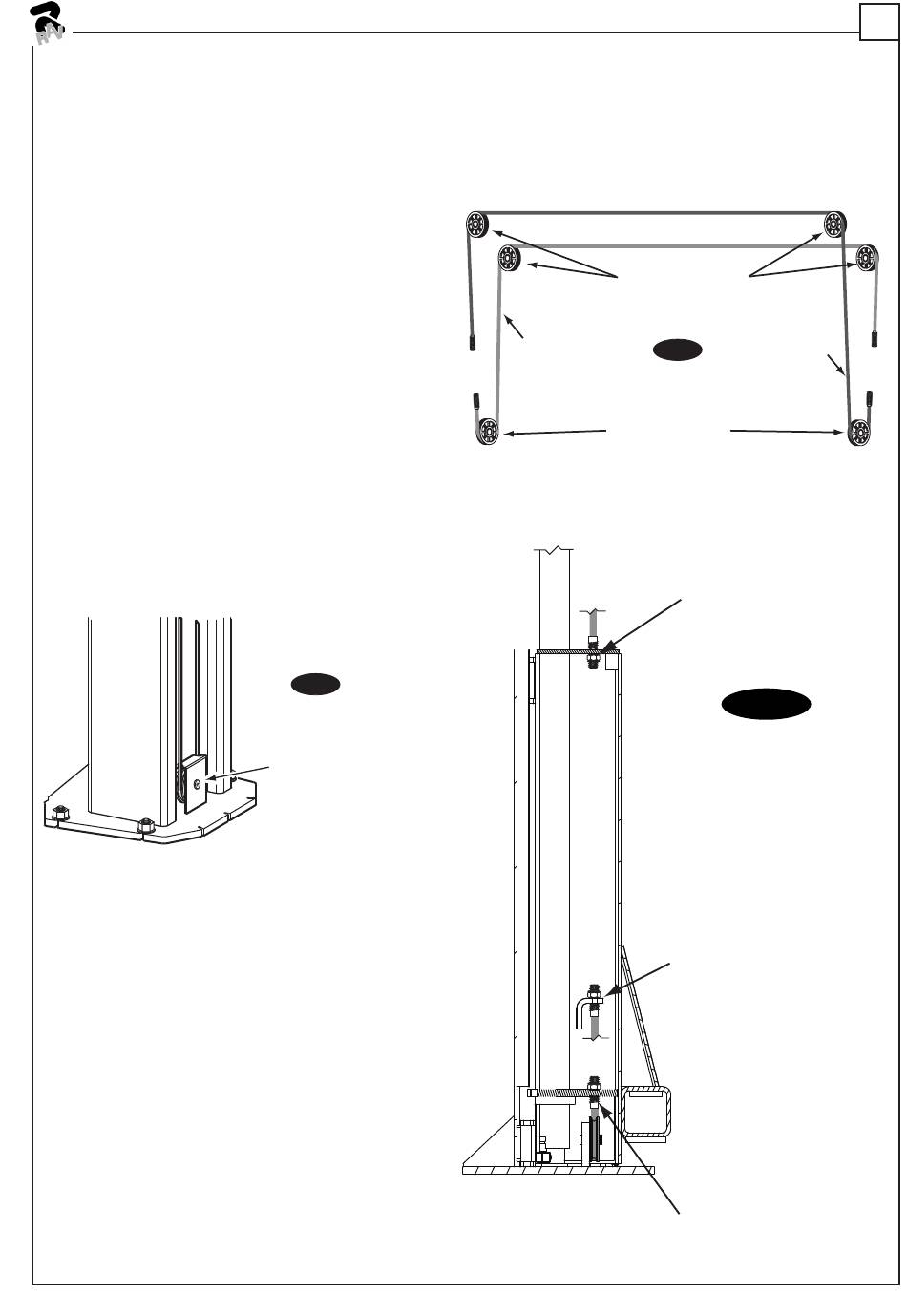

A) Refer to Fig. 16 for the general cable
arrangement.
B) First, run a cable end up through the small hole
in the tie-off plate, Fig. 17.
C) Push the cable up until the stud is out of the
carriage top opening.
D) Run a nylon insert locknut onto the cable stud
so 1/2" (13mm) of the stud extends out of the
locknut.
E) Pull the cable back down, Fig. 17.
F) Run cable around the lower sheave, then up
and out of the top of the column.
G) Run cable around overhead sheave and
across and down to the opposite carriage.
Install sheave cover, Fig. 15.
H) Fasten the cable end to the carriage upper
tie-off bracket, Fig. 17. Tighten the locknut
enough to
I) Adjust the tension of both cables during the
final adjustments in Paragraph 24.
Fig. 15 Fig. 15
Sheave Cover Sheave Cover
0496-M005-0
Upper Sheaves Upper Sheaves
2nd Cable 2nd Cable
Fig. 16 Fig. 16
Lower Sheaves Lower Sheaves
Upper Cable Tie Off&
5/8" Nylon Insert
Locknut
Narrow - Cable Tie Off &
5/8"Nylon Insert Locknut
Width - Cable Tie Off &
5/8"Nylon Insert Locknut
1st Cable 1st Cable
Upper Cable Tie O Upper Cable Tie O
& 5/8" Nylon Insert & 5/8" Nylon Insert
Locknut Locknut
Fig. 17
Fig. 17 Fig. 17
Lower Cable Lower Cable
Tie O & 5/8" Nylon Tie O & 5/8" Nylon
Insert Locknut Insert Locknut
