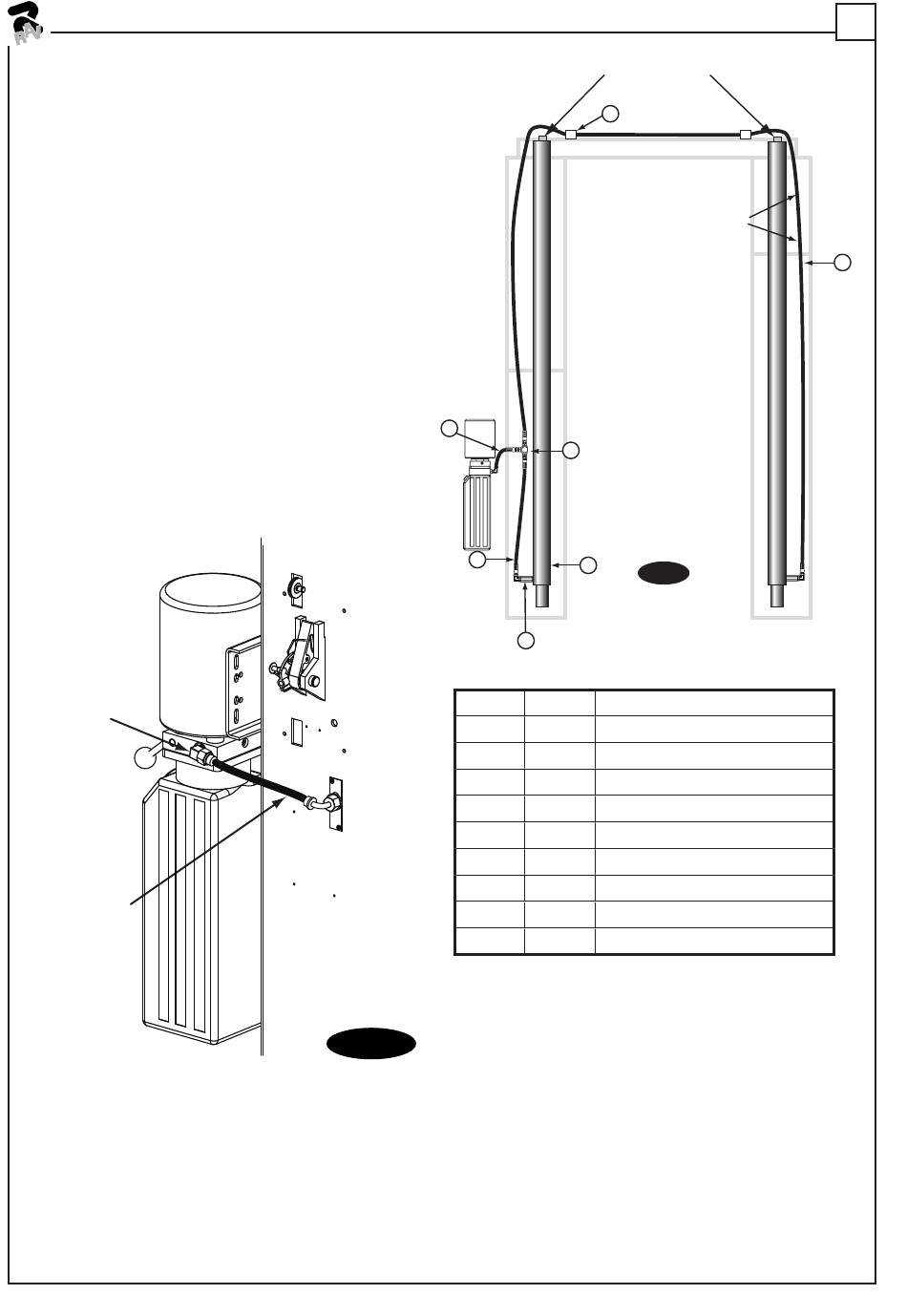

13. Adapter & Hose Installation (see Fig. 14)
1. Connect the free end of the second shortest
hose Pc. (2), from paragraph 3, to the power
unit side cylinder Pc. (1). Run hose through
channel inside column.
3. Run the free end of the longest hose Pc. (3),
from paragraph 3, through hose clamps Pc.(9),
and channel. Then connect it to the slave side
cylinder.
4. Take the end of the remaining hose Pc. (4) out
of the column and connect it to the Ftting on
the power unit Fig. 13.
NOTE:
Overhead hose goes over top end of
overhead assembly, Fig. 14 & Fig. 18a & Fig.
18b.
Fitting
Power Unit
Hose
36
Fitting
Power Unit
Hose
Fig. 13
Fig. 13
0496-M005-0
Cylinder Bleeders
6
cylinder on left column.
4
5
2
1
7
ITEM Q.ty. DESCRIPTION
1 2 Hydraulic Cylinder
2 1 Cylinder Hose
3 1 Slave Side Hose
4 1 Power Unit Hose
5 1 3/8" Branch Tee
6 2 Hose Clips
2 M10-1.5 x 20mm HHCS
2 M10-1.5 Flanged Locknuts
7 3 Fitting
Hose runs down
approach side to
FRONT
Fig. 14
3
