15.

Locking Latch Cable

A) Install latch cable sheave and retainging rings
in upper slot of power unit column as shown,
Fig. 19.
B) Slip loop end of cable over end of shoulder
screw on right side latch control plate, Fig. 19.
C) Feed the other end of the cable through the
latch cable sheave slot making sure that the
cable is running under the bottom side of the
latch cable sheave and inside the right column,
Fig. 19.

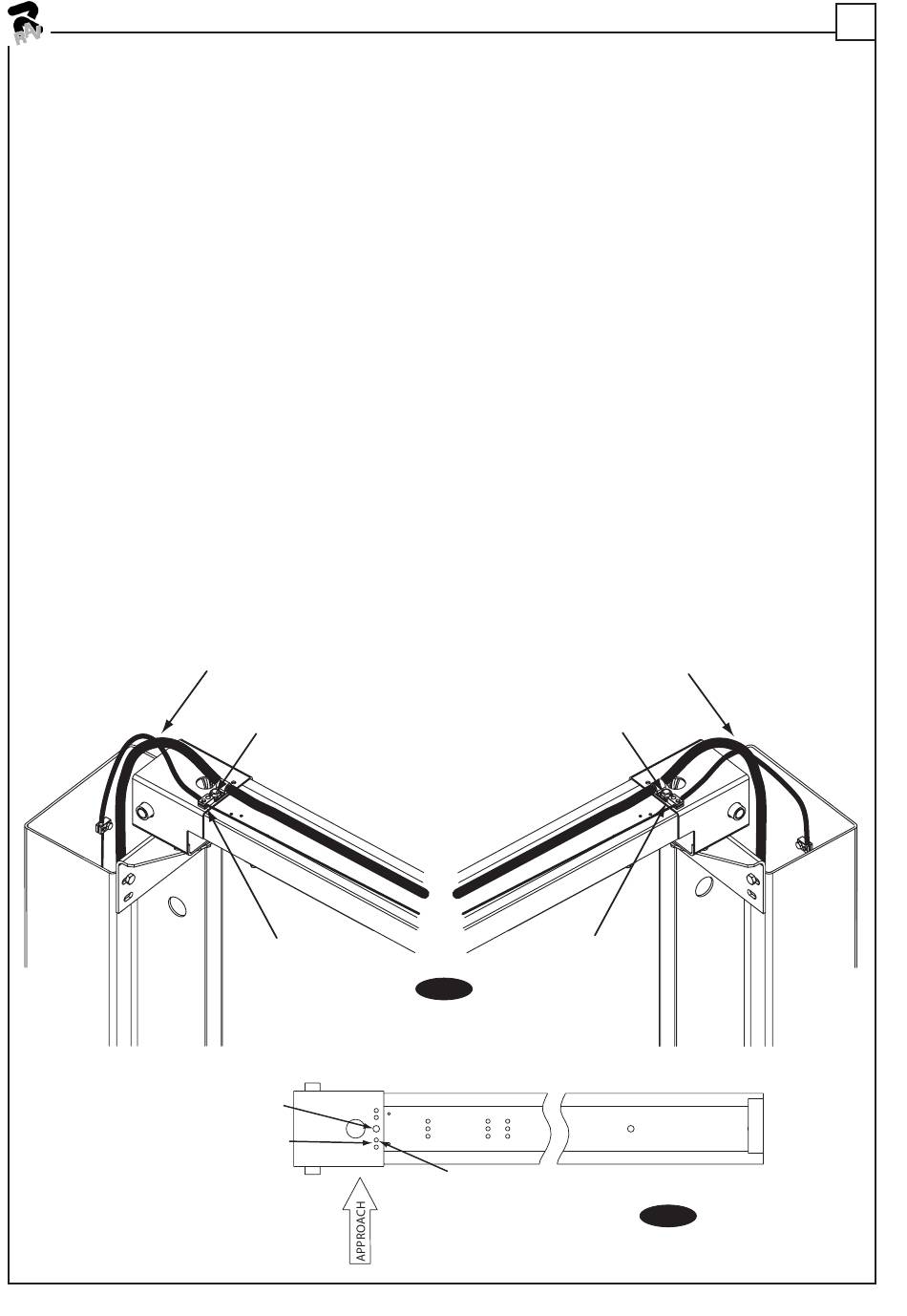

D) Attach latch cable conduit guide brackets
to overhead as shown, Fig. 18a & Fig. 18b.
Always use the holes on the approach side of
the lift. HHCS should be in hole nearest the
center of the overhead, Fig. 18b.
E) Route cable up inside column and through the
latch cable guide, Fig. 18a & Fig. 20.
IMPORTANT:
Using wire ties provided, tie off
hydraulic hose snug to cylinders to keep
hose away from equalizing cable, Fig. 14.
Attach Hose Clamps Here
Attach Latch Cable Conduit
Guide Bracket Here. Always
use two holes on approach
side of extension to attach bracket.
38
Cable Guide
runs UNDER
hydraulic hose
M10-1.5 x 20mm HHCS
and Flanged Locknut
1/4"-20NC x 1" HHCS
and Flanged Locknut
F) Continue routing cable to the left column latch
cable guide, Fig. 18a & Fig. 20, routing the
cable through the left column latch cable guide,
Fig. 18a.
G) Bring the cable down inside the left column and
feed the end of the cable through the lower
latch cable sheave slot so that the cable is
now back outside the column, Fig. 21.
H) Route cable under the bottom side of the latch
cable sheave, Fig. 21.
I) At this point you MUST install the latch handle,
jam nut, and right column latch cover Fig. 19
& Fig. 22. Install latch handle ball, Fig. 22.
J) Insert cable in cable clamp along one side,
loop around shoulder screw and back down,
inserting cable along other side of cable clamp,
Fig. 21. Place top back on clamp, barely
tightening.
K) Next, pull the control plate down, Fig. 20 &
Fig. 21, to eliminate any clearance between
the control plate slot and the latch dog pin,
Fig. 20.
L) Using Pliers, pull cable tight and secure the
clamp close to the shoulder screw. Tighten
clamp.
M10-1.5 x 20mm HHCS
and Flanged Locknut
1/4"-20NC x 1" HHCS
and Flanged Locknut
Fig. 18a
Always put HHCS through hole
closest to center of overhead.
0496-M005-0
Cable Guide
does not cross
hydraulic hose
Fig. 18b
