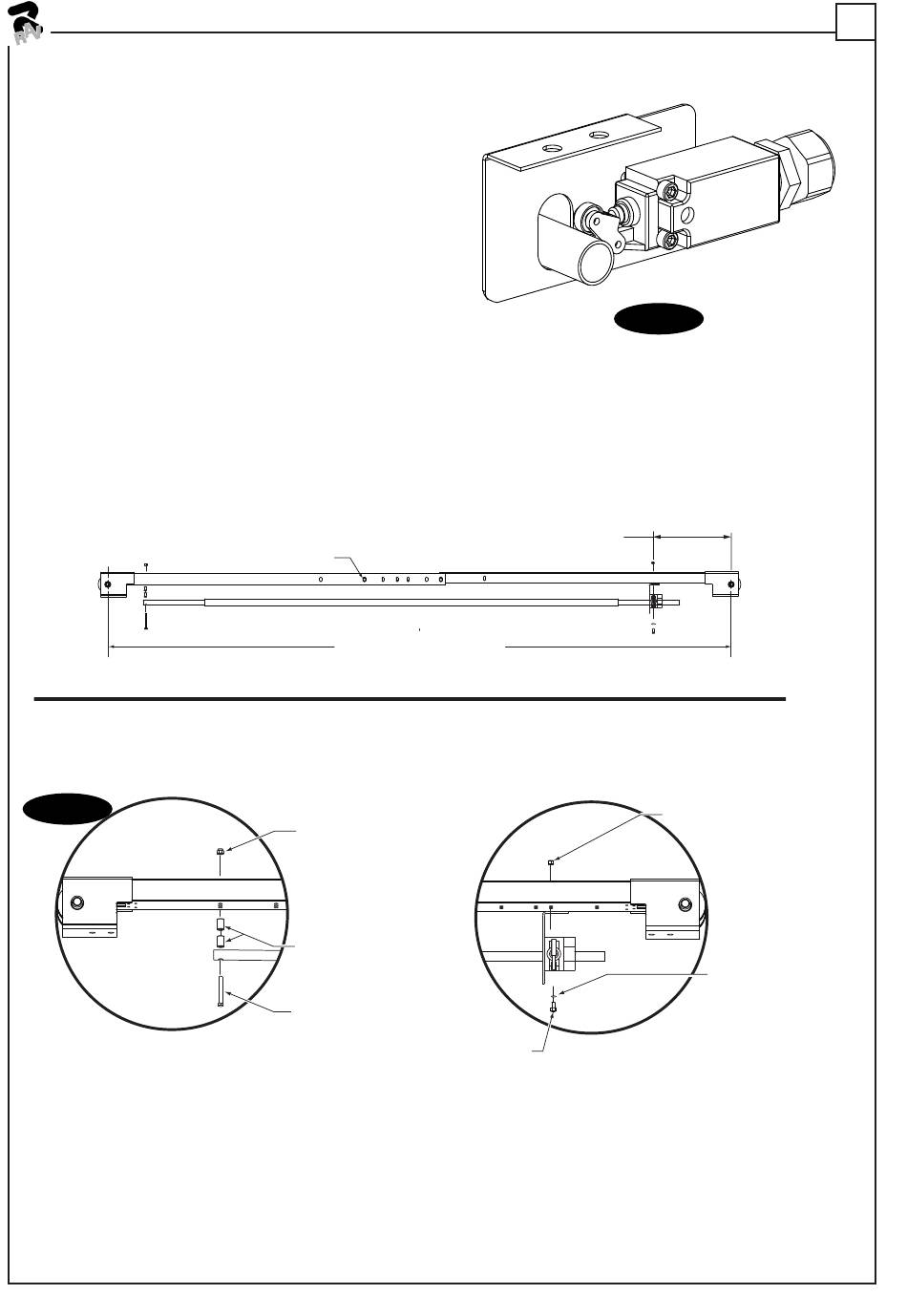

10a. Overhead Assembly: Fig. 10: Adjust overhead
to appropriate dimension. Install (4) 3/8"-16NC
x 3/4" HHCS & 3/8"-16NC Flanged Locknuts,
do not tighten. Slide Switch Box over switch bar
ensuring knock out holes face the power unit
column. Use (2) 1/4"-20NC x 3/4" lg. HHCS,
1/4" Flat Washer, and 1/4"-20NC Nuts to mount
switch box to overhead, see Fig. 9.
10b. Continued Overhead Assembly: For the lifts:
Insert 1/4"-20NC x 2 3/4" HHCS through pivot
hole in end of switch bar. Insert opposite end
of bar through slot in switch mounting bracket.
Then secure HHCS and Switch Bar to overhead
as shown, Fig. 10, using (2) 3/4" spacers and
1/4"-20NC Locknut. Tighten Hex bolt leaving
1/16" gap between the spacer and the overhead
assembly.
Open Bar Side
Fig. 10
Fig. 9
34
M10-1.5 x 20mm HHCS
& Flanged Locknut
2861 mm Standard (KPH-45)
2708 mm Standard (KPH-40)
1/4" Lock Nut
2 Spacers
1/4"-20NC x 2 3/4" HHCS
Fig. 8
298 mm Standard
Switch Box Side
1/4"-20NC x 3/4" HHCS
0496-M005-0
Fig. 9
1/4" Lock Nut
1/4" Flat
Washer
