18. Oil Filling & Bleeding: Use Dexron III ATF,
or Hydraulic Fluid that meets ISO 32 specifications.
Remove fill-breather cap, Fig. 12. Pour in (8) quarts
of fiuid. Start unit, raise lift about 2 ft. Open cylinder
bleeders approximately 2 turns, Fig. 14.
Close bleeders when fiuid streams. Torque values
for the bleeders are 15 ft. lb. minimum and 20 ft
lb. maximum. Fully lower lift. Add more fiuid until it
reaches the MIN
fill-breather cap.
CAUTION:
If fill-breather cap is lost or broken,
order replacement. Reservoir must be
vented.
19. Overhead switch: Check overhead switch
assembly to assure that switch is working. The
overhead switch is wired normally close. When
the switch bar is lifted and touch the overhead switch,
the Power Unit will stop working.
mark on the tank. Replace
Fitting
Power Unit
Hose
Fig. 13
4
2
7
0496-M005-0

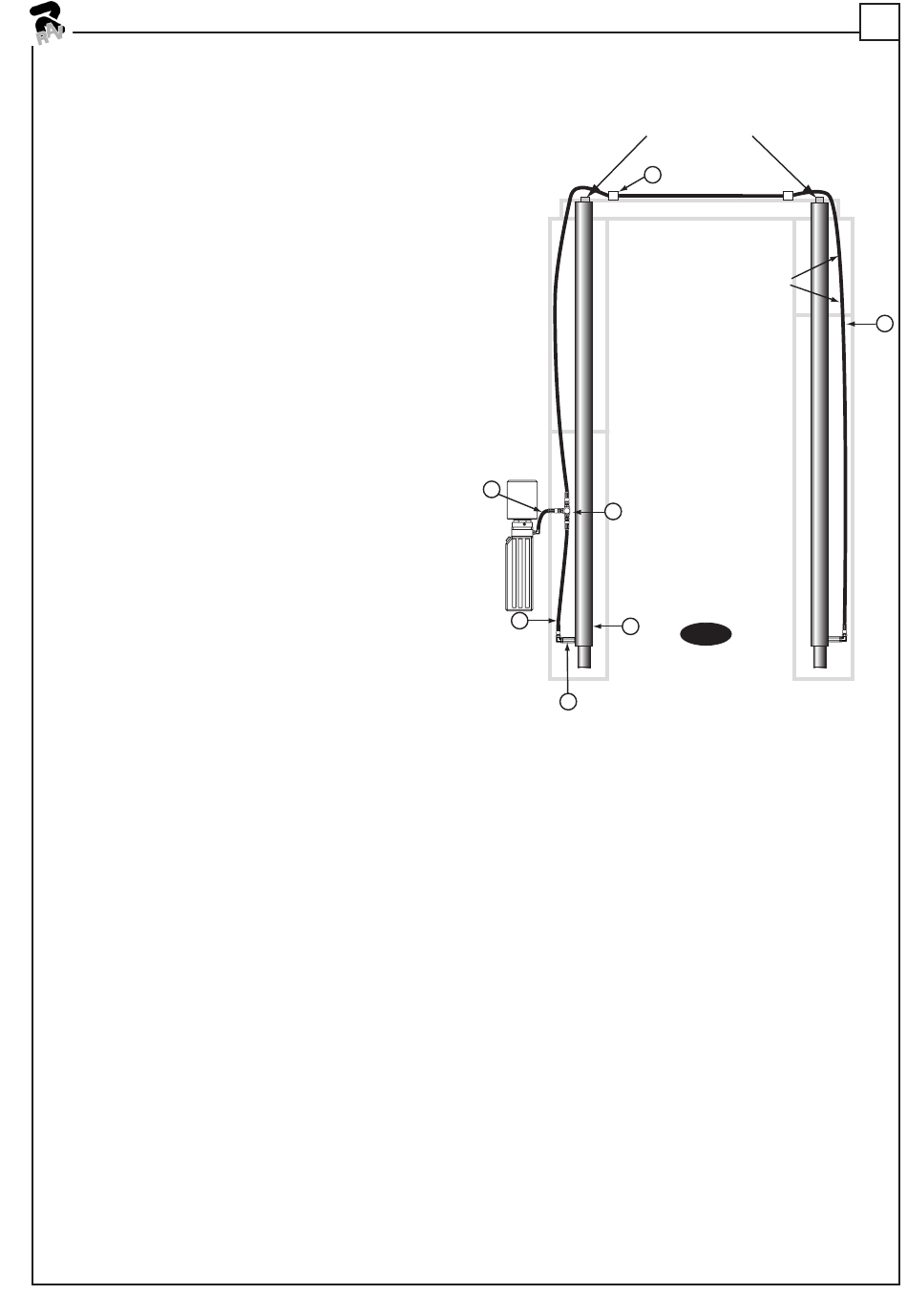

Cylinder Bleeders
6
Hose runs down
approach side to
cylinder on left column.
5
FRONT
1
Fig. 14
3
