Type RPC positioner

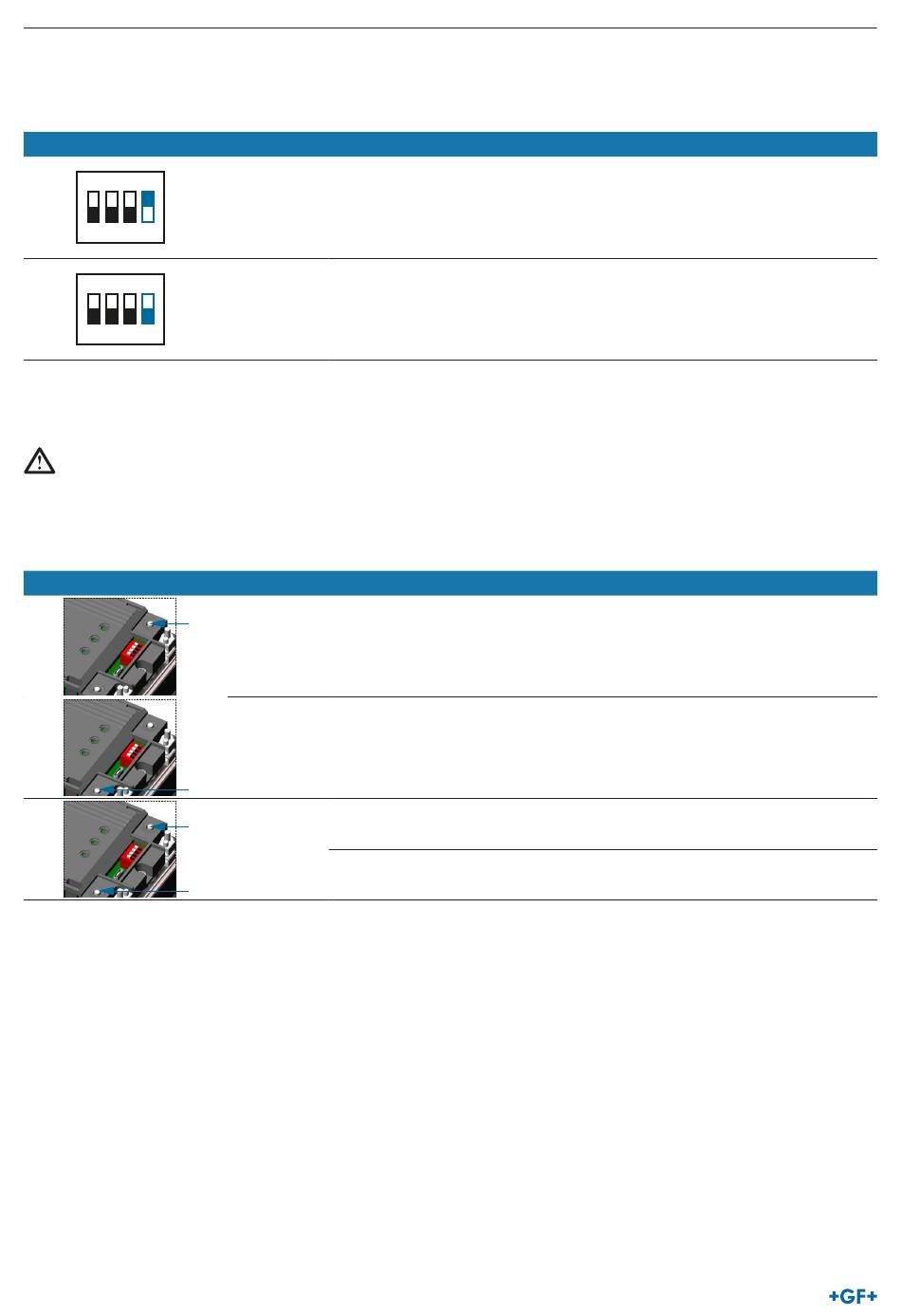

5.2.2 Operating state
Slide switch 4 can be used to switch between the two operating states AUTOMATIC (AUTO) and MANUAL (MANU).
ON DIP
1 2 3 4
ON DIP
1 2 3 4
5.2.3

Function of the buttons

NOTE!
The assignment of the 2 buttons differs depending on the operating state (AUTOMATIC/MANUAL).
Operating state MANUAL (Slide DIP switch 4 ON)
* Depending on the mode of operation of the actuator.
26
Button 4 Function
ON In MANUAL operating state, the valve can be opened or closed manually using the
buttons.
OFF In the AUTOMATIC (AUTO) operating state, normal controller operation is perfor-
med and monitored.
Button Function
1 Aerate (manually open or close the actuator)*
2 Ventilate (manually open or close the actuator)*
1 and 2 Longer than 10 s (< 30 s, LED 2 flashes at 5 Hz): Device restart
Longer than 30 s (LED 2 flashes at 10 Hz): Reset the device to factory settings
