Type RPC positioner
4.2
Pivoting range
The swivel movement of the flattened shaft must take place within the displacement transducer rotation range of 180°.
► To ensure that the flattened displacement transducer works with optimal resolution, the pivoting range must be at least 30°.
► The scale printed on the lever is not relevant.
3
NOTE!
Maximum rotation range!
The maximum rotation range of the displacement transducer is 180°. If the type RPC positioner is operated outside this range, ma-
terial damage may occur.
► Type RPC Move positioner only within the specified pivoting range.
16
2
2

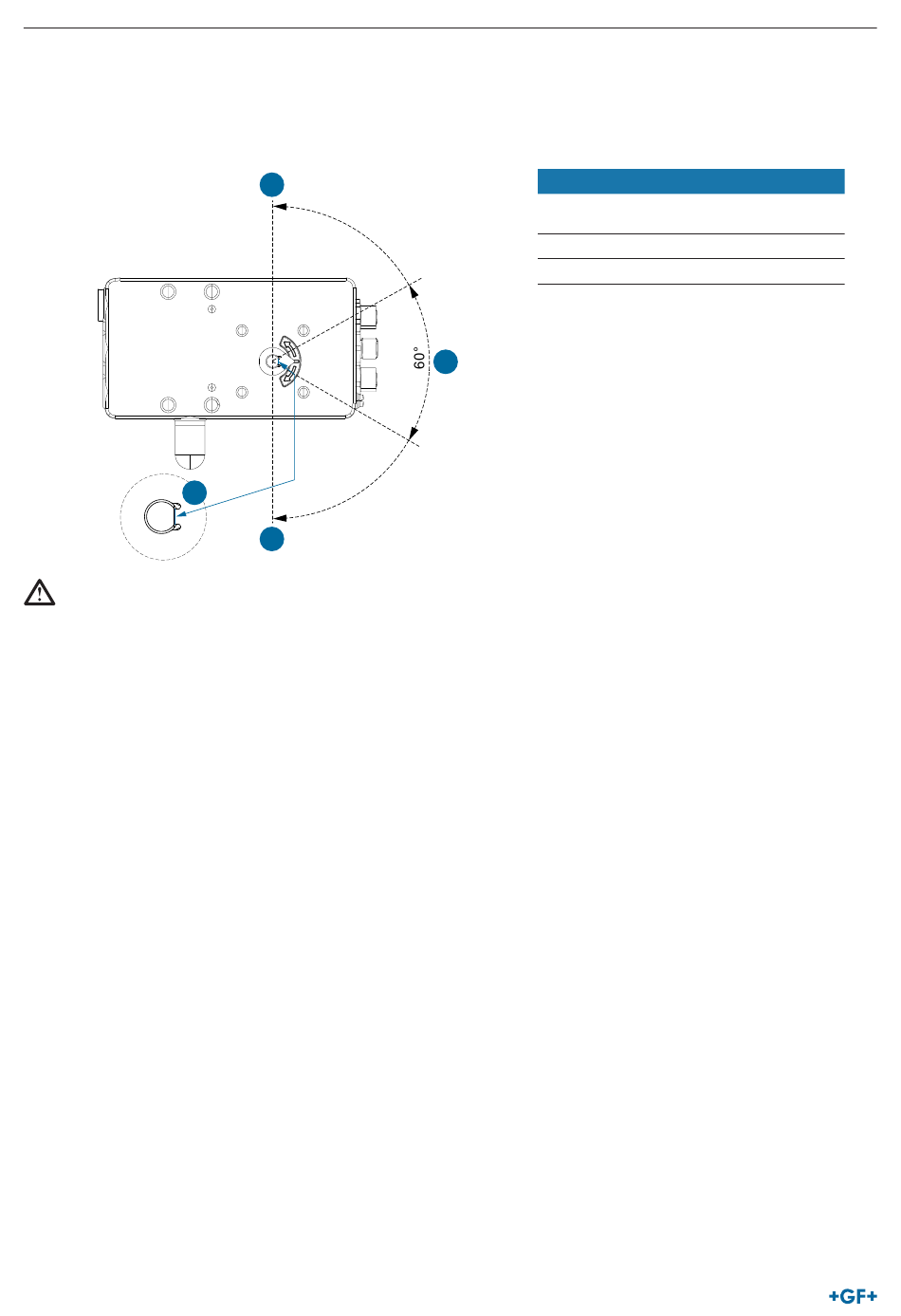

No.
Designation
1
Ideal pivoting range
(min. 30° / max. 180°)
2
Maximum pivoting range
3
Flattened shaft
1
Operating Instructions
