Type RPC positioner
3

Design and function

3.1

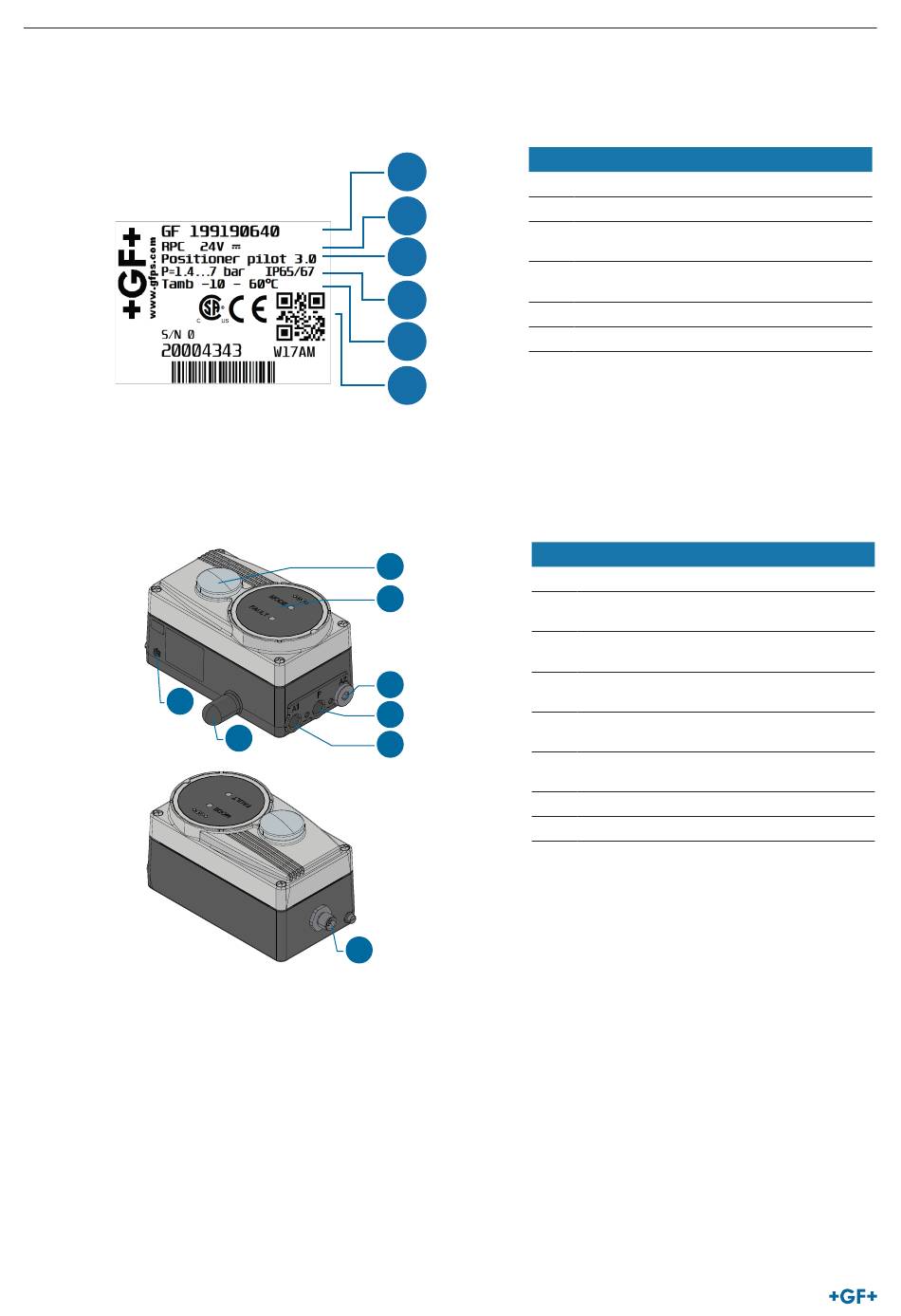

Type plate on the product

3.2

Construction

7
12
1
2
3
4
5
6
1
2
5
4
6
3
8
No. Designation
1 Article number
2 Type
3 Control function, control valve, supply
voltage
4 Maximum working pressure, protection
rating
5 Max. ambient temperature
6 Serial number; CE Marking
No. Designation
1 Mechanical position indication
2 Display module with 2 LEDs
Below decoding module with slide switches
3 Working connection 1
(Connection: A1)
4 Pressure connection 1.4 - 7 bar
(Connection: P)
5 Working connection 2
(Connection: A2)
6 Venting connection/
Venting filter
7 Overpressure valve
8 Circular connector
Operating Instructions
