SETTING
EC72Q000

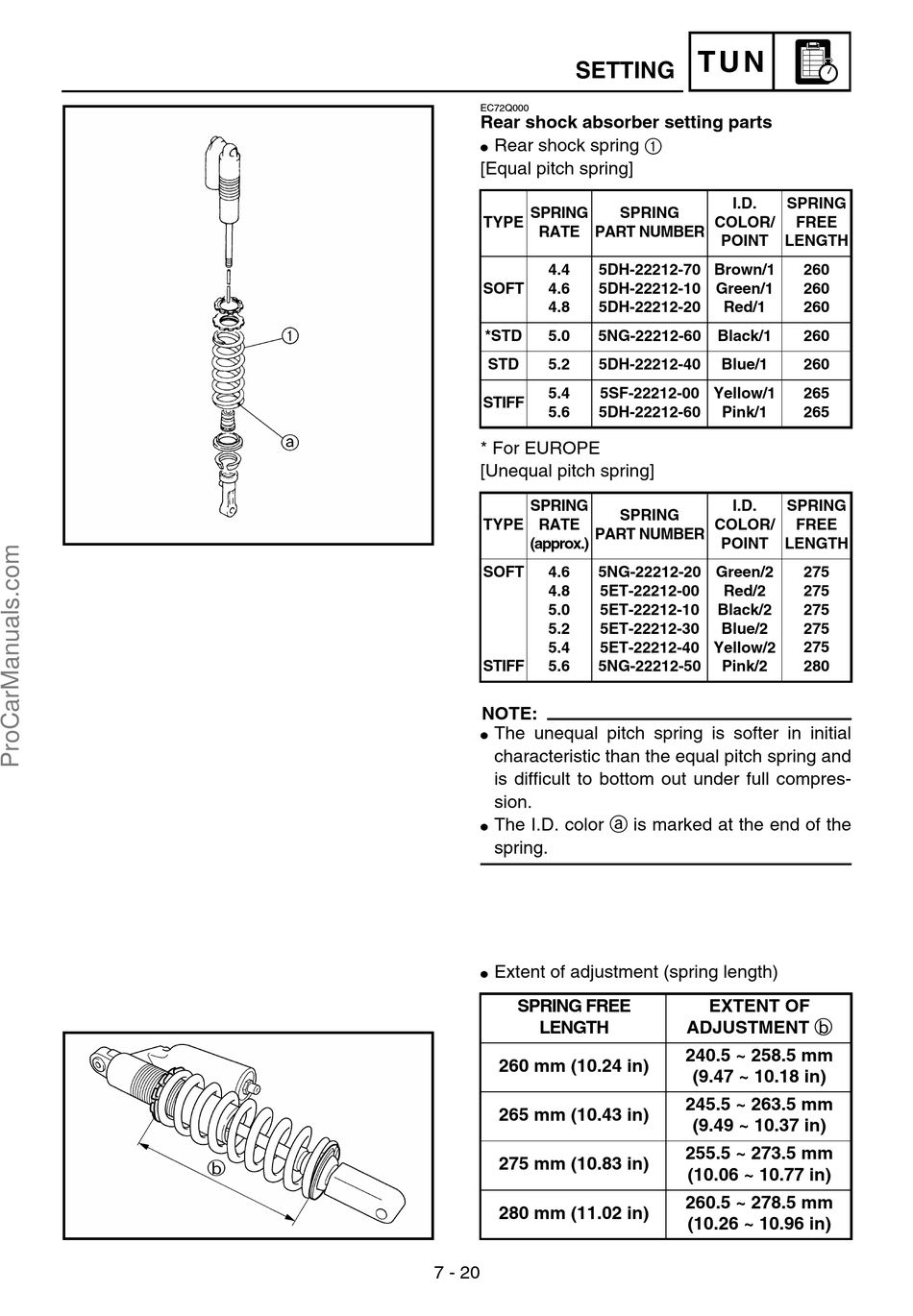

Rear shock absorber setting parts
Rear shock spring 1
G
[Equal pitch spring]
SPRING
TYPE
RATE PART NUMBER
4.4 5DH-22212-70
SOFT 4.6 5DH-22212-10
4.8 5DH-22212-20
*STD 5.0 5NG-22212-60
STD 5.2 5DH-22212-40
5.4 5SF-22212-00
STIFF
5.6 5DH-22212-60
* For EUROPE
[Unequal pitch spring]
SPRING
TYPE RATE
PART NUMBER
(approx.)
SOFT 4.6 5NG-22212-20
4.8 5ET-22212-00
5.0 5ET-22212-10
5.2 5ET-22212-30
5.4 5ET-22212-40
STIFF 5.6 5NG-22212-50
NOTE:
The unequal pitch spring is softer in initial
G
characteristic than the equal pitch spring and
is difficult to bottom out under full compres-
sion.
The I.D. color a is marked at the end of the
G
spring.
Extent of adjustment (spring length)
G
SPRING FREE
LENGTH
260 mm (10.24 in)
265 mm (10.43 in)
275 mm (10.83 in)
280 mm (11.02 in)
7 - 20
T U N
I.D. SPRING
SPRING
COLOR/
POINT LENGTH
Brown/1
Green/1
Red/1
Black/1
Blue/1
Yellow/1
Pink/1
I.D. SPRING
SPRING
COLOR/
POINT LENGTH
Green/2
Red/2
Black/2
Blue/2
Yellow/2
Pink/2
EXTENT OF
ADJUSTMENT b
240.5 ~ 258.5 mm
(9.47 ~ 10.18 in)
245.5 ~ 263.5 mm
(9.49 ~ 10.37 in)
255.5 ~ 273.5 mm
(10.06 ~ 10.77 in)
260.5 ~ 278.5 mm
(10.26 ~ 10.96 in)
FREE
260
260
260
260
260
265
265
FREE
275
275
275
275
275
280
