b
1
NOTE:
G
G
NOTE:
G
G
90˚
c
3
NOTE:
Apply the lithium soap base grease on the
throttle grip sliding surface.
5 - 43

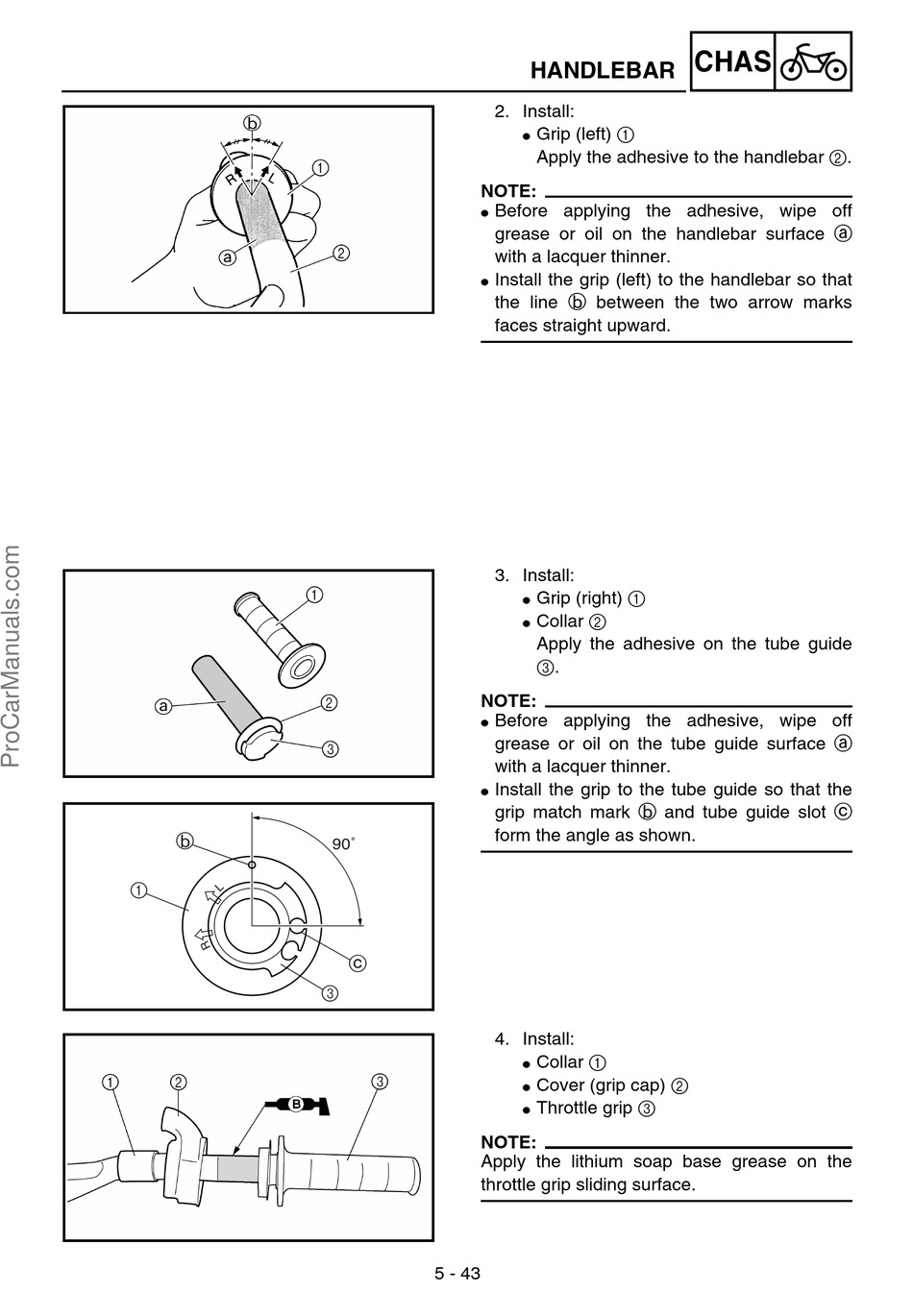

HANDLEBAR
2. Install:
Grip (left) 1
G
Apply the adhesive to the handlebar 2.
Before applying the adhesive, wipe off
grease or oil on the handlebar surface a
with a lacquer thinner.
Install the grip (left) to the handlebar so that
the line b between the two arrow marks
faces straight upward.
3. Install:
Grip (right) 1
G
Collar 2
G
Apply the adhesive on the tube guide
3.
Before applying the adhesive, wipe off
grease or oil on the tube guide surface a
with a lacquer thinner.
Install the grip to the tube guide so that the
grip match mark b and tube guide slot c
form the angle as shown.
4. Install:
Collar 1
G
Cover (grip cap) 2
G
Throttle grip 3
G
CHAS
