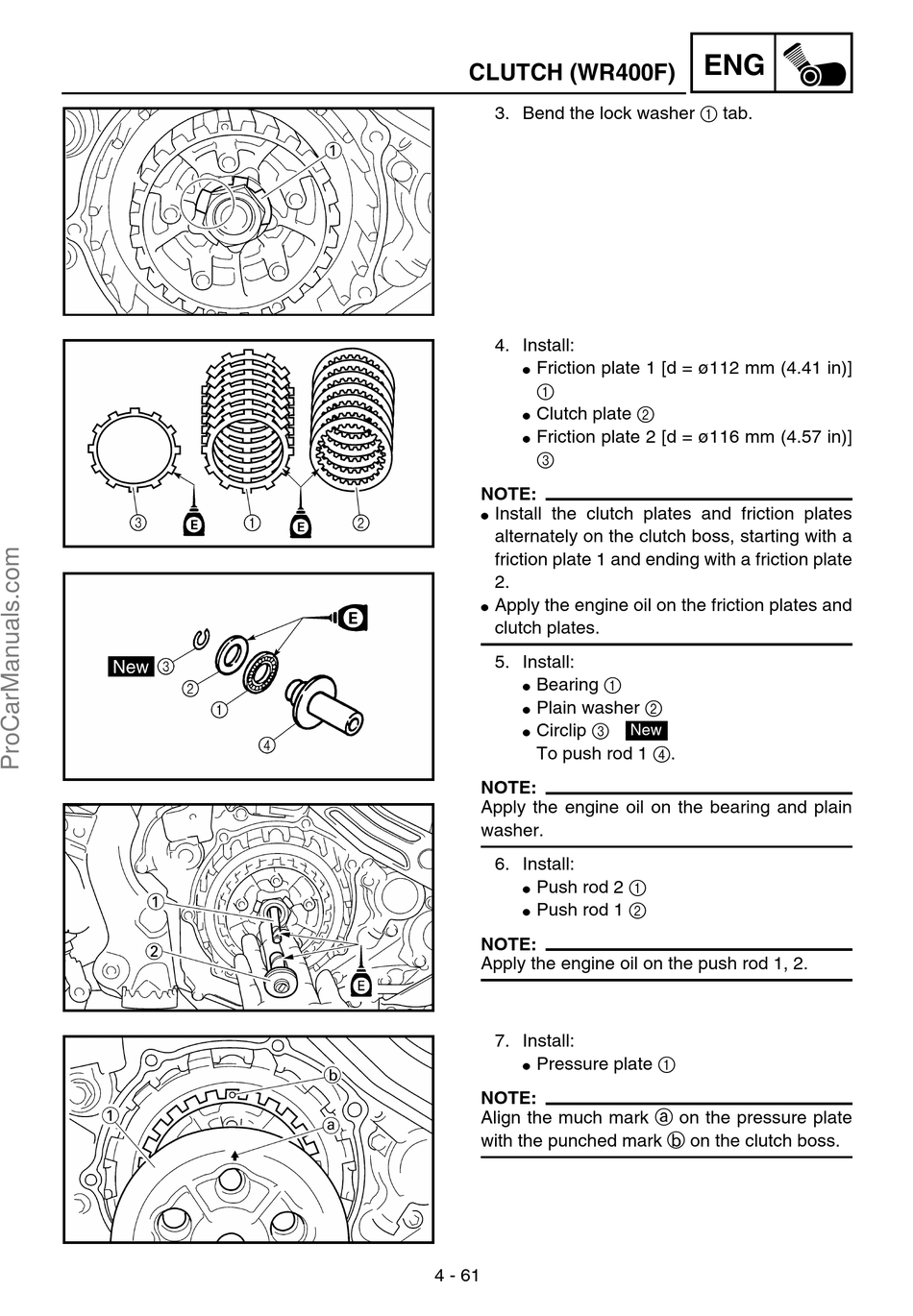

CLUTCH (WR400F)
3. Bend the lock washer 1 tab.
4. Install:
Friction plate 1 [d = ø112 mm (4.41 in)]
G
1
Clutch plate 2
G
Friction plate 2 [d = ø116 mm (4.57 in)]
G
3
NOTE:
Install the clutch plates and friction plates
G
alternately on the clutch boss, starting with a
friction plate 1 and ending with a friction plate
2.
Apply the engine oil on the friction plates and
G
clutch plates.
5. Install:
Bearing 1
G
Plain washer 2
G
Circlip 3
G
To push rod 1 4.
NOTE:
Apply the engine oil on the bearing and plain
washer.
6. Install:
Push rod 2 1
G
Push rod 1 2
G
NOTE:
Apply the engine oil on the push rod 1, 2.
7. Install:
Pressure plate 1
G
NOTE:
Align the much mark a on the pressure plate
with the punched mark b on the clutch boss.
4 - 61
ENG
New
