1
a
1
2
NOTE:
Install the throttle cable cover with its pawl a
hung on the carburetor.
4 - 21

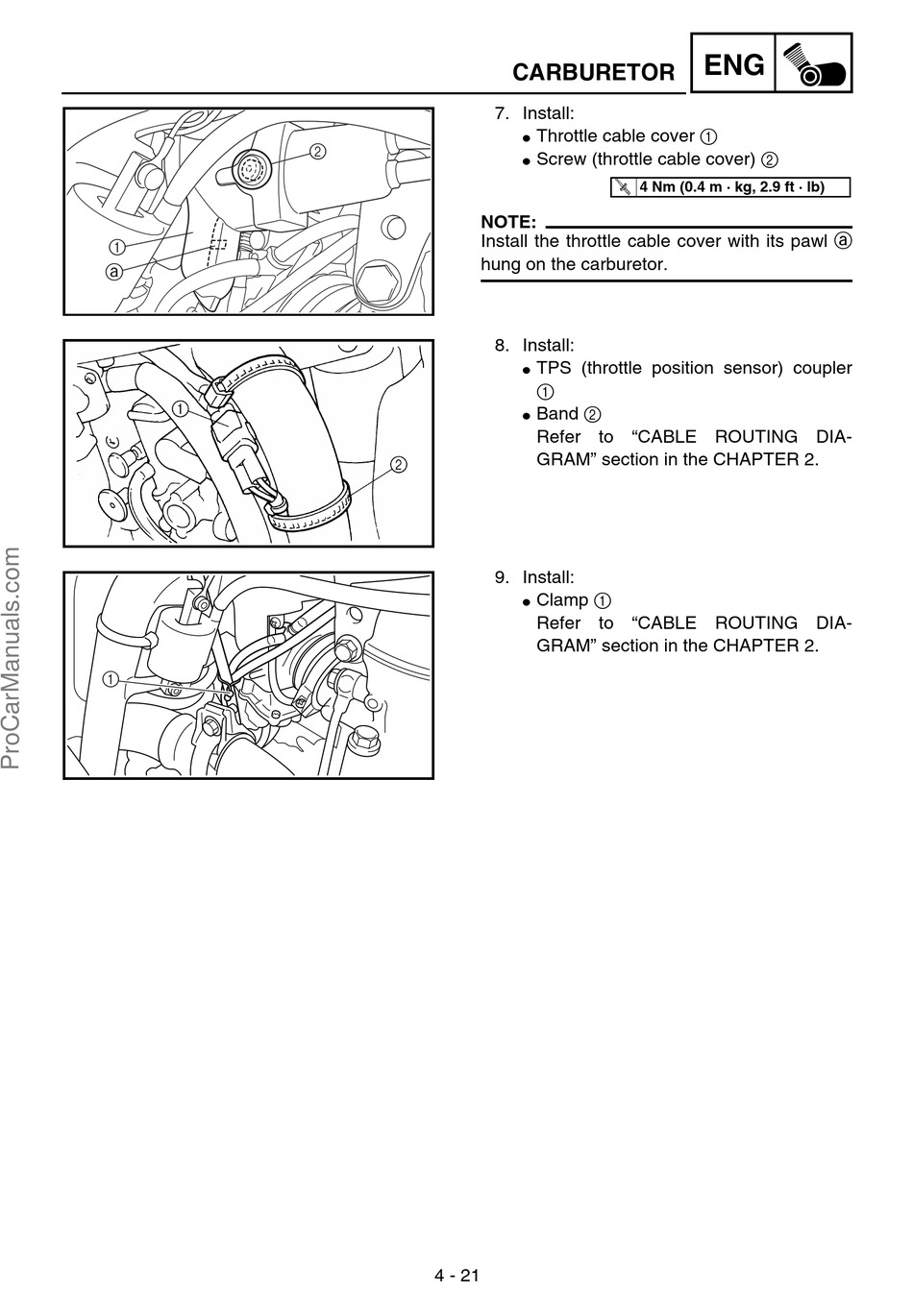

CARBURETOR
7. Install:
Throttle cable cover 1
G
Screw (throttle cable cover) 2
G
4 Nm (0.4 m · kg, 2.9 ft · lb)
8. Install:
TPS (throttle position sensor) coupler
G
1
Band 2
G
Refer to "CABLE ROUTING DIA-
GRAM" section in the CHAPTER 2.
9. Install:
Clamp 1
G
Refer to "CABLE ROUTING DIA-
GRAM" section in the CHAPTER 2.
ENG
