1
L
B
2
2
1
6 - 13

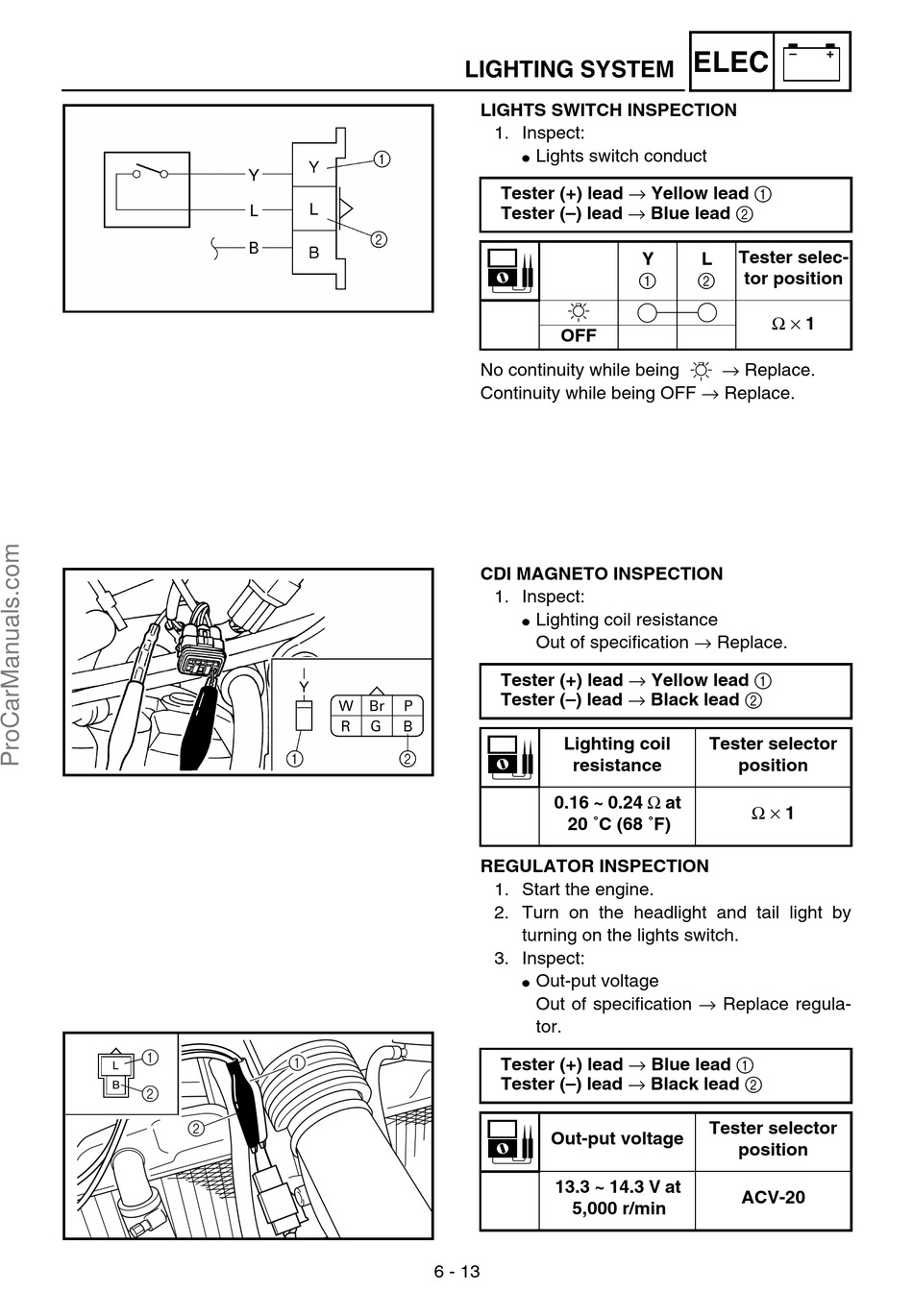

LIGHTING SYSTEM
LIGHTS SWITCH INSPECTION
1. Inspect:
Lights switch conduct
G
Tester (+) lead → Yellow lead 1
Tester (–) lead → Blue lead 2
OFF
No continuity while being
Continuity while being OFF → Replace.
CDI MAGNETO INSPECTION
1. Inspect:
Lighting coil resistance
G
Out of specification → Replace.
Tester (+) lead → Yellow lead 1
Tester (–) lead → Black lead 2
Lighting coil
resistance
0.16 ~ 0.24 Ω at
20 ˚C (68 ˚F)
REGULATOR INSPECTION
1. Start the engine.
2. Turn on the headlight and tail light by
turning on the lights switch.
3. Inspect:
Out-put voltage
G
Out of specification → Replace regula-
tor.
Tester (+) lead → Blue lead 1
Tester (–) lead → Black lead 2
Out-put voltage
13.3 ~ 14.3 V at
5,000 r/min
–
ELEC
Tester selec-
Y
L
tor position
1
2
Ω × 1
→ Replace.
Tester selector
position
Ω × 1
Tester selector
position
ACV-20
+
