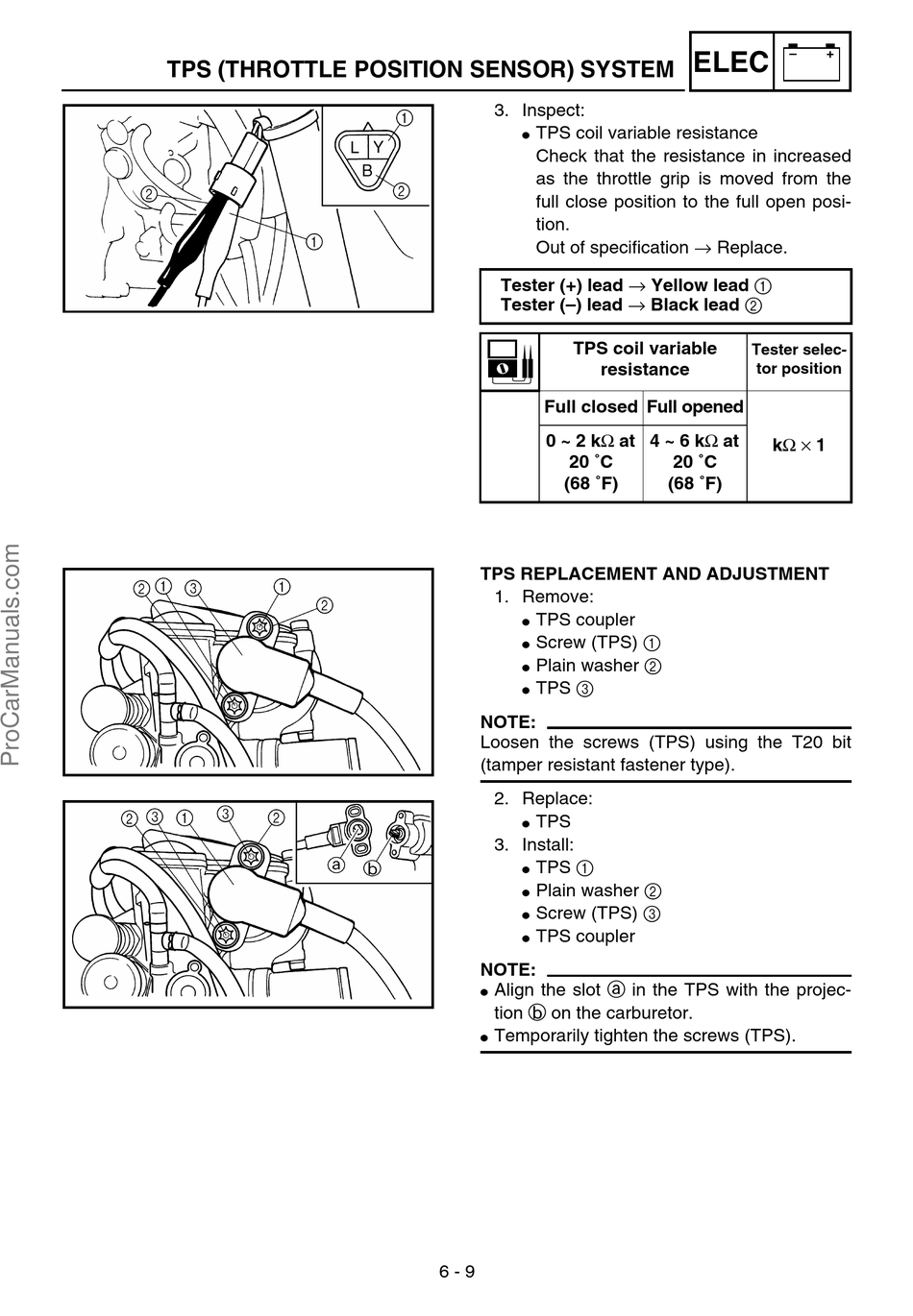

TPS (THROTTLE POSITION SENSOR) SYSTEM
3. Inspect:
TPS coil variable resistance
G
Check that the resistance in increased
as the throttle grip is moved from the
full close position to the full open posi-
tion.
Out of specification → Replace.
Tester (+) lead → Yellow lead 1
Tester (–) lead → Black lead 2
TPS coil variable
resistance
Full closed Full opened
0 ~ 2 kΩ at
20 ˚C
(68 ˚F)
TPS REPLACEMENT AND ADJUSTMENT
1. Remove:
TPS coupler
G
Screw (TPS) 1
G
Plain washer 2
G
TPS 3
G
NOTE:
Loosen the screws (TPS) using the T20 bit
(tamper resistant fastener type).
2. Replace:
TPS
G
3. Install:
TPS 1
G
Plain washer 2
G
Screw (TPS) 3
G
TPS coupler
G
NOTE:
Align the slot a in the TPS with the projec-
G
tion b on the carburetor.
Temporarily tighten the screws (TPS).
G
6 - 9
ELEC
Tester selec-
tor position
4 ~ 6 kΩ at
kΩ × 1
20 ˚C
(68 ˚F)
+
