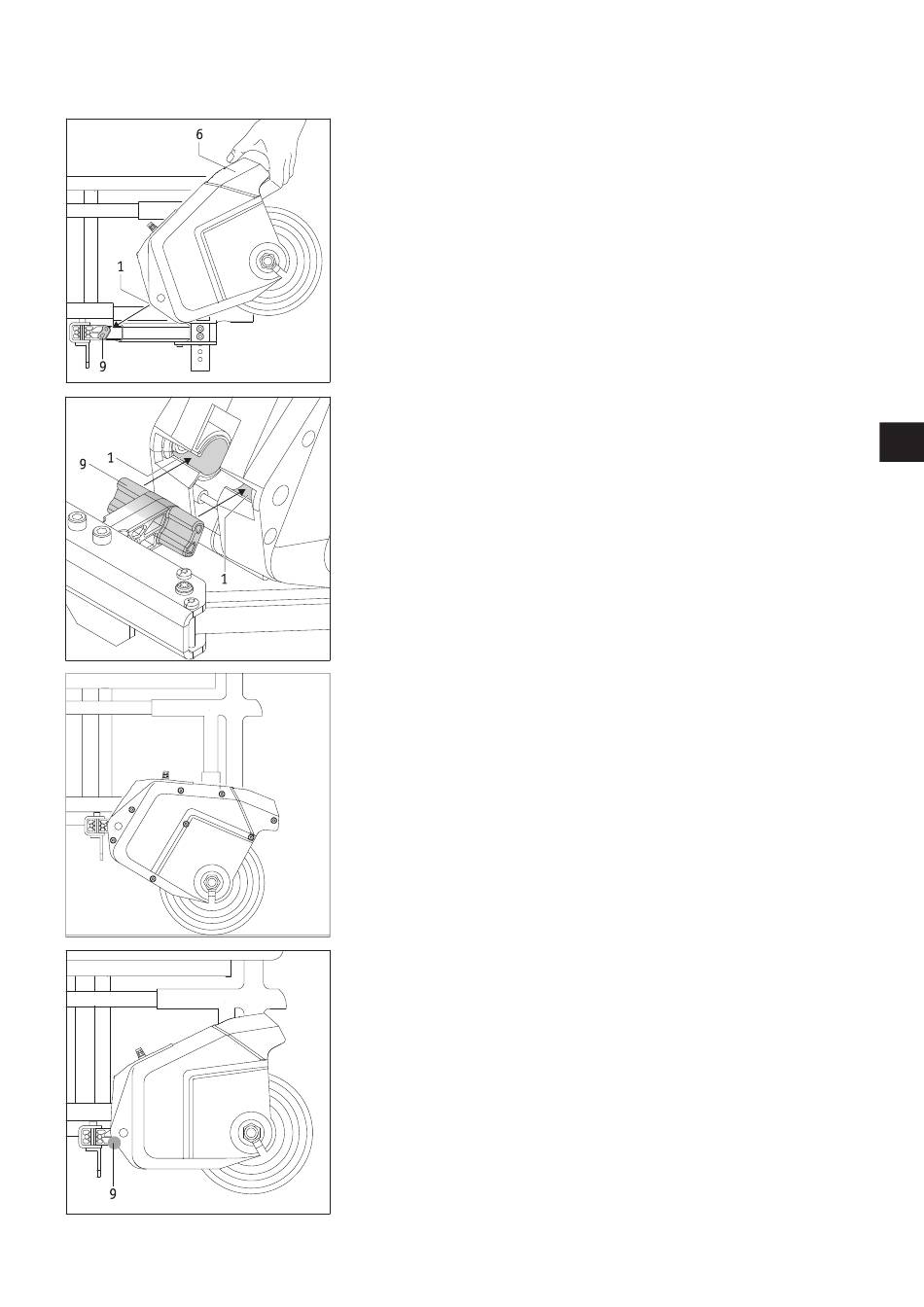

2.1 Attaching the via GO to the wheelchair

• Make sure that both manual drive wheels have been properly attached to the wheel-
chair.
• Apply the wheelchair brakes to prevent the wheelchair rolling away inadvertently.
• Attach the control unit to its bracket on the handle of the wheelchair (see chapter
2.4).
• Make sure that the via GO is switched off (see chapter 2.8).
• Grip the via GO by its handle [6].
• Roll the via GO over the drive wheel and up to the lock [9], lift the drive unit and
push it forward slightly until it slides over the lock [9].
• You can lower the via GO towards the ground if the lock [9] is correctly in the mount
[1].
• You may now use the via GO.
Note: If the via GO cannot be lowered to the ground, this is either because it is not
correctly in the lock [9] or because it is not completely in the lock. For details, see also
chapter 2.3

2.2 Removing the via GO from the wheelchair

• Make sure that the via GO is switched off (see chapter 2.8).
• Apply the wheelchair brakes to prevent the wheelchair rolling away inadvertently.
• Grip the via GO by its handle [6] and swing it up and away from the ground.
• Pull the via GO out of the lock [9].
• Remove the control unit from its mount on the handle of the wheelchair (see chapter
2.5) and insert it in the storage compartment [2] on the via GO (see chapter 2.6).

2.3 Parked position of the via GO on the wheelchair

The via GO can remain in a parked position underneath the wheelchair if it is not being
used.
• Lift the drive unit and pull it towards you by approx. 1 cm.
• If you now lower the drive unit, it will remain in the parked position.
• If the via GO is to be used again, lift the drive unit slightly, push it all the way for-
ward, and lower it.
