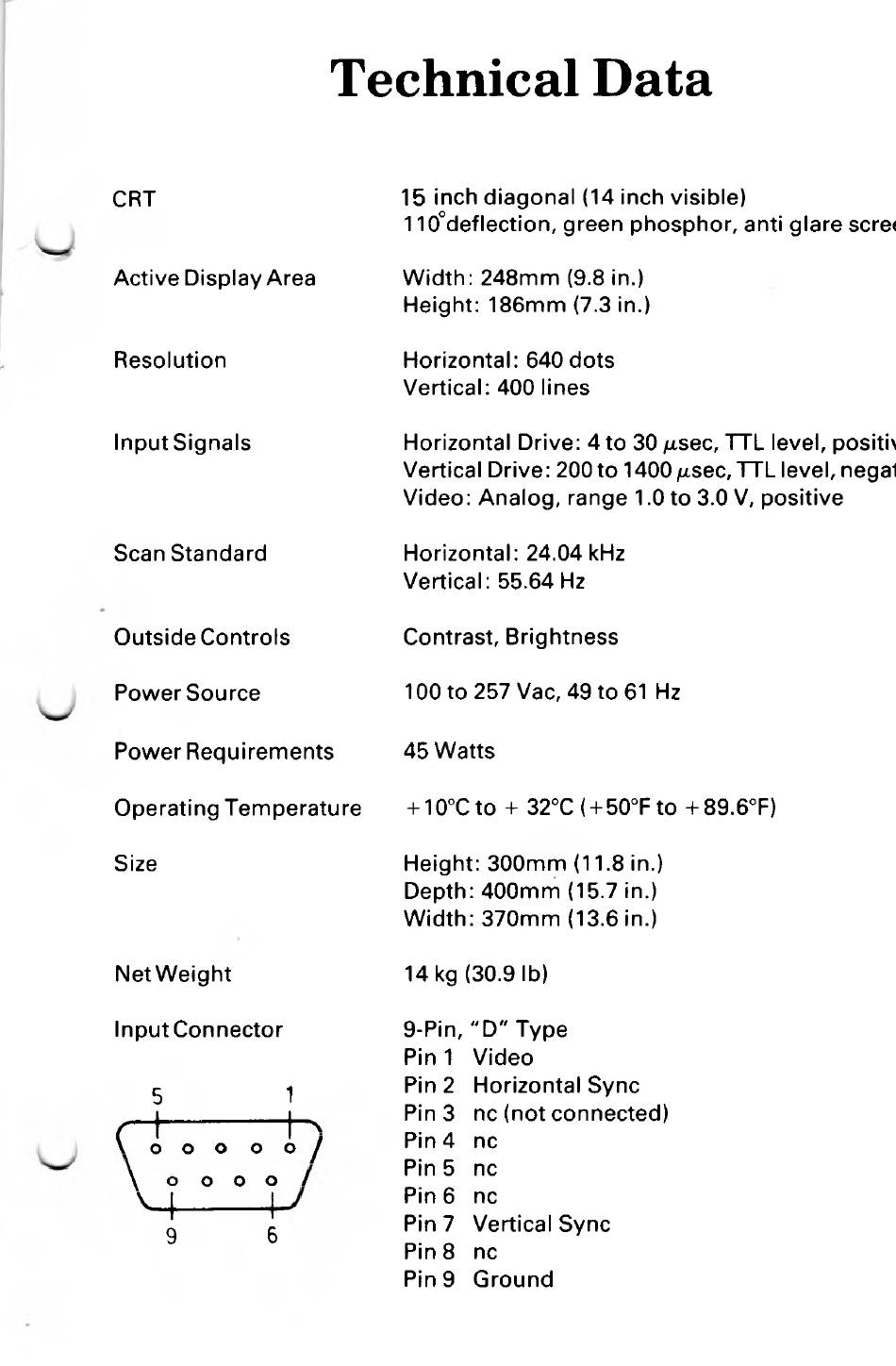

Technical Data
15 inch diagonal (14 inch visible)
110°deflection, green phosphor, anti glare scre<
Width: 248mm (9.8 in.)
Height: 186mm (7.3 in.)
Horizontal: 640 dots
Vertical: 400 lines
Horizontal Drive: 4 to 30 ^isec, TTL level, positi\
Vertical Drive: 200to 1400/u.sec, TTL level, negat
Video: Analog, range 1.0 to 3.0 V, positive
Horizontal: 24.04 kHz
Vertical: 55.64 Hz
Contrast, Brightness
100 to 257 Vac, 49 to 61 Hz
45 Watts
+ 10°C to + 32°C ( + 50°F to +89.6°F)
Height: 300mm (11.8 in.)
Depth: 400mm (15.7 in.)
Width: 370mm (13.6 in.)
14 kg (30.9 lb)
9-Pin, "D" Type
Pin 1 Video
Pin 2 Horizontal Sync
1
Pin 3 nc (not connected)
Pin 4 nc
J
Pin 5 nc
/
!
Pin 6 nc
Pin 7 Vertical Sync
Pin 8 nc
Pin 9 Ground
