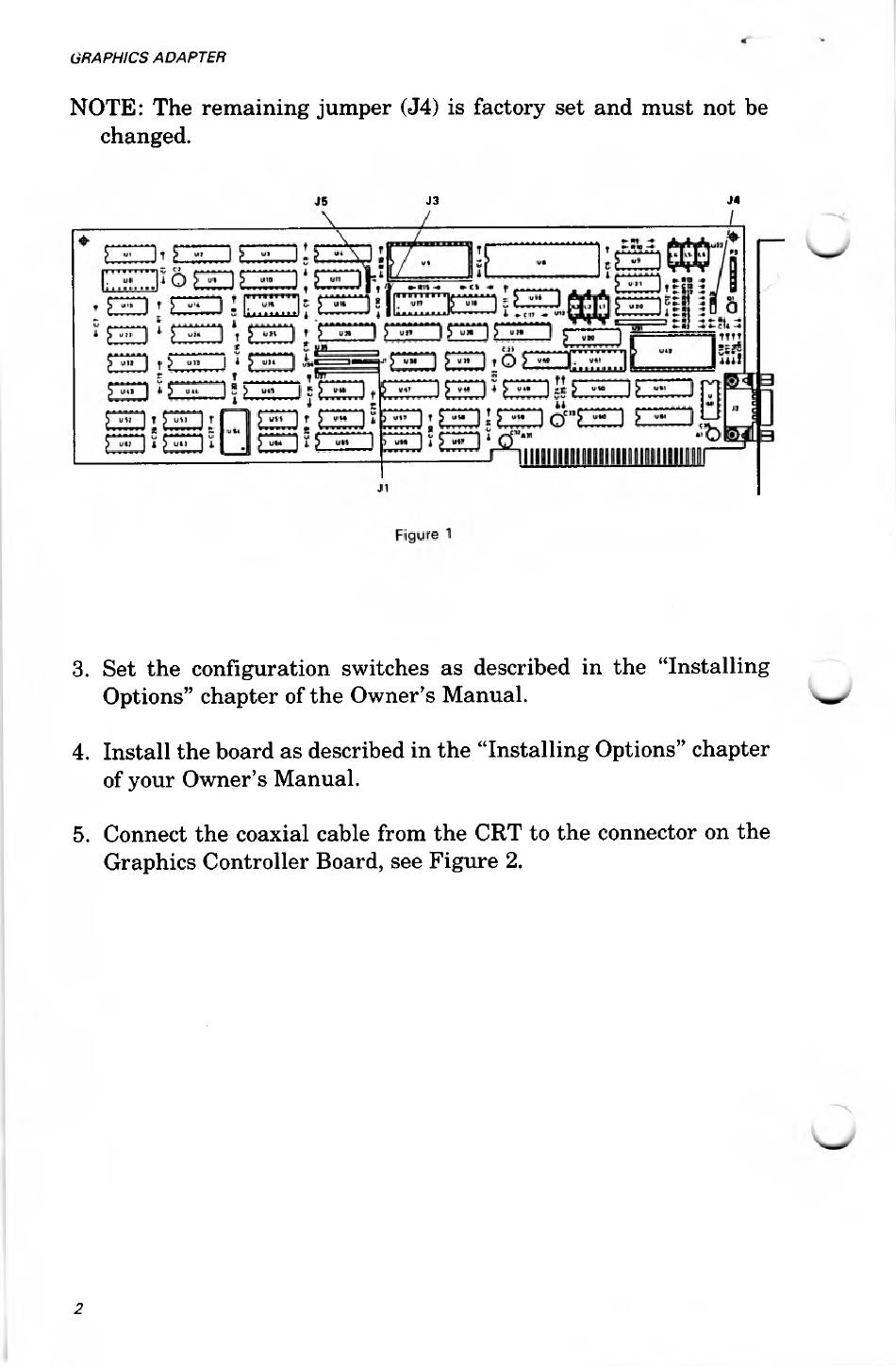

NOTE: The rem aining jum per (J4) is factory set and m ust not be
changed.
3. Set the configuration switches as described in the "Installing
Options" chapter of the Owner's M anual.
4. Install the board as described in the "Installing Options" chapter
of your Ow ner's M anual.
5. Connect the coaxial cable from the CRT to the connector on the
Graphics Controller Board, see Figure 2,
J 5 J 3 J 4
