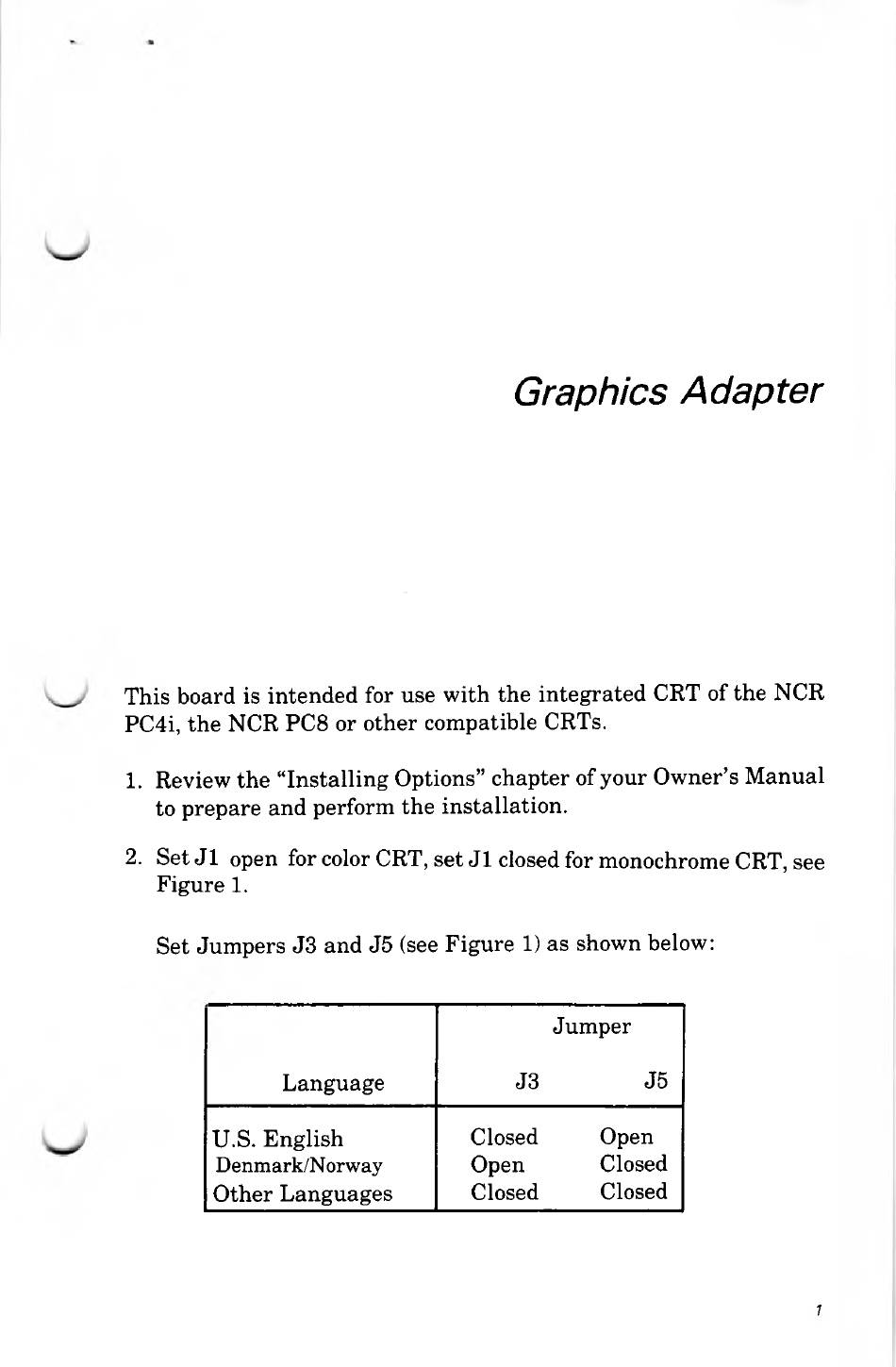

This board is intended for use w ith the integrated CRT of the NCR
PC4i, the NCR PC8 or other compatible CRTs.
1. Review the "Installing Options" chapter of your O w ner's M anual
to prepare and perform the installation.
2. Set J 1 open for color CRT, set J1 closed for monochrome CRT, see
Figure 1.
Set Jum pers J3 and J5 (see Figure 1) as shown below:
Language
U.S. English
Denmark/N orway
O ther Languages
Graphics Adapter
Jum per
J3
Open
Closed
Closed
Open
Closed
Closed
J5
