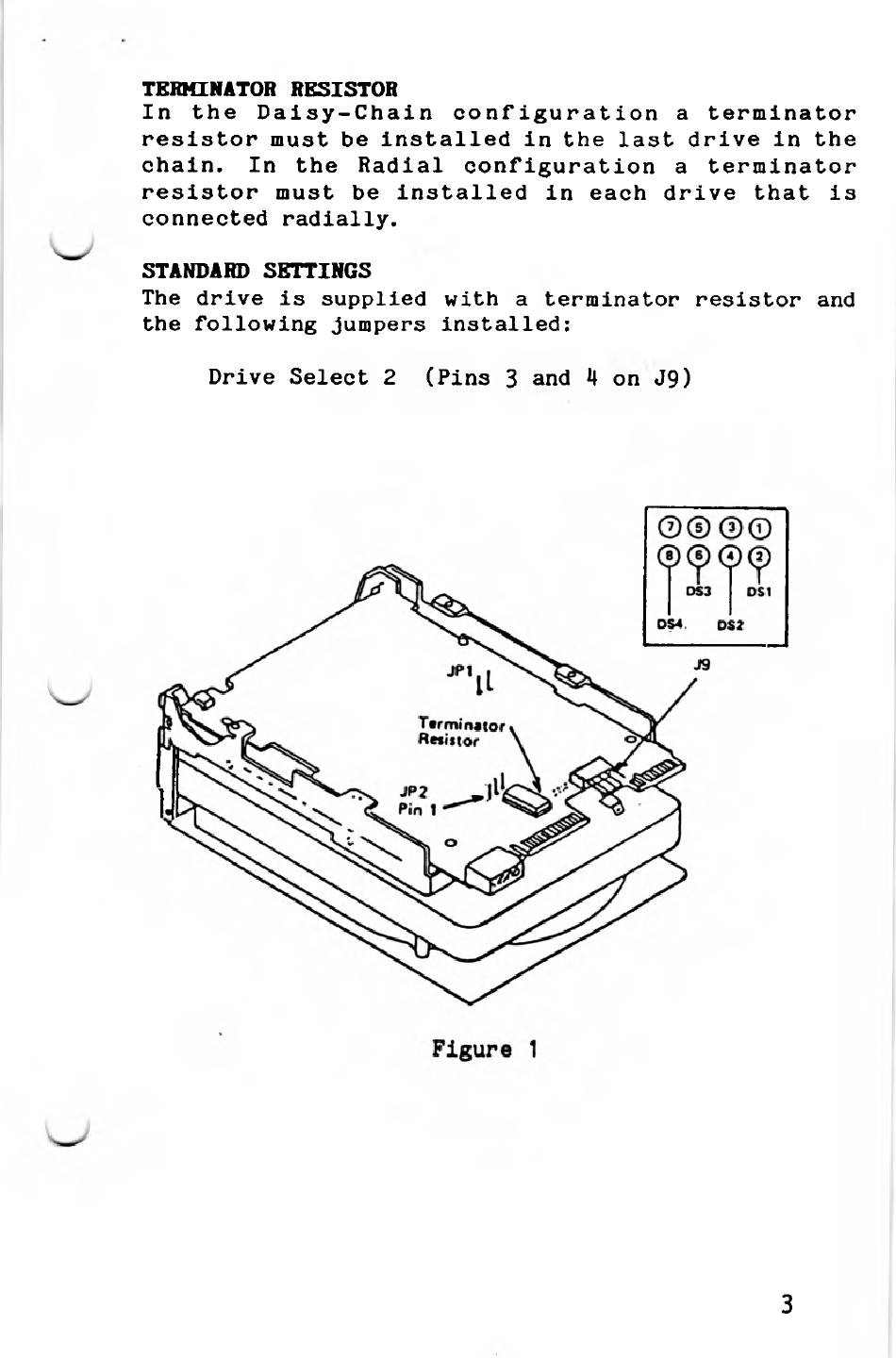

TERMINATOR RESISTOR
I n t h e D a i s y - C h a i n c o n f i g u r a t i o n a t e r m i n a t o r
r e s i s t o r mus t be i n s t a l l e d i n t h e l a s t d r i v e i n t h e
c h a i n .
I n t h e R a d i a l c o n f i g u r a t i o n a t e r m i n a t o r
r e s i s t o r mus t be i n s t a l l e d i n e ac h d r i v e t h a t i s
c o n n e c t e d r a d i a l l y .
STANDARD SETTINGS
The d r i v e i s su p p li e d with a t e r m i n a t o r r e s i s t o r and
the f o l l o w i n g jumpers i n s t a l l e d :
Drive S e l e c t 2
(P in s 3 and 4 on J9)
