If th is disk drive is to be the last drive in a chain (the disk drive
connected to the end of the data cable) be sure th a t a term i­
nator resistor is installed.
Be sure th a t th ere are no term inator resistors installed in any
other drives in the chain.
Install the disk drive as described in your O w ner's M anual,

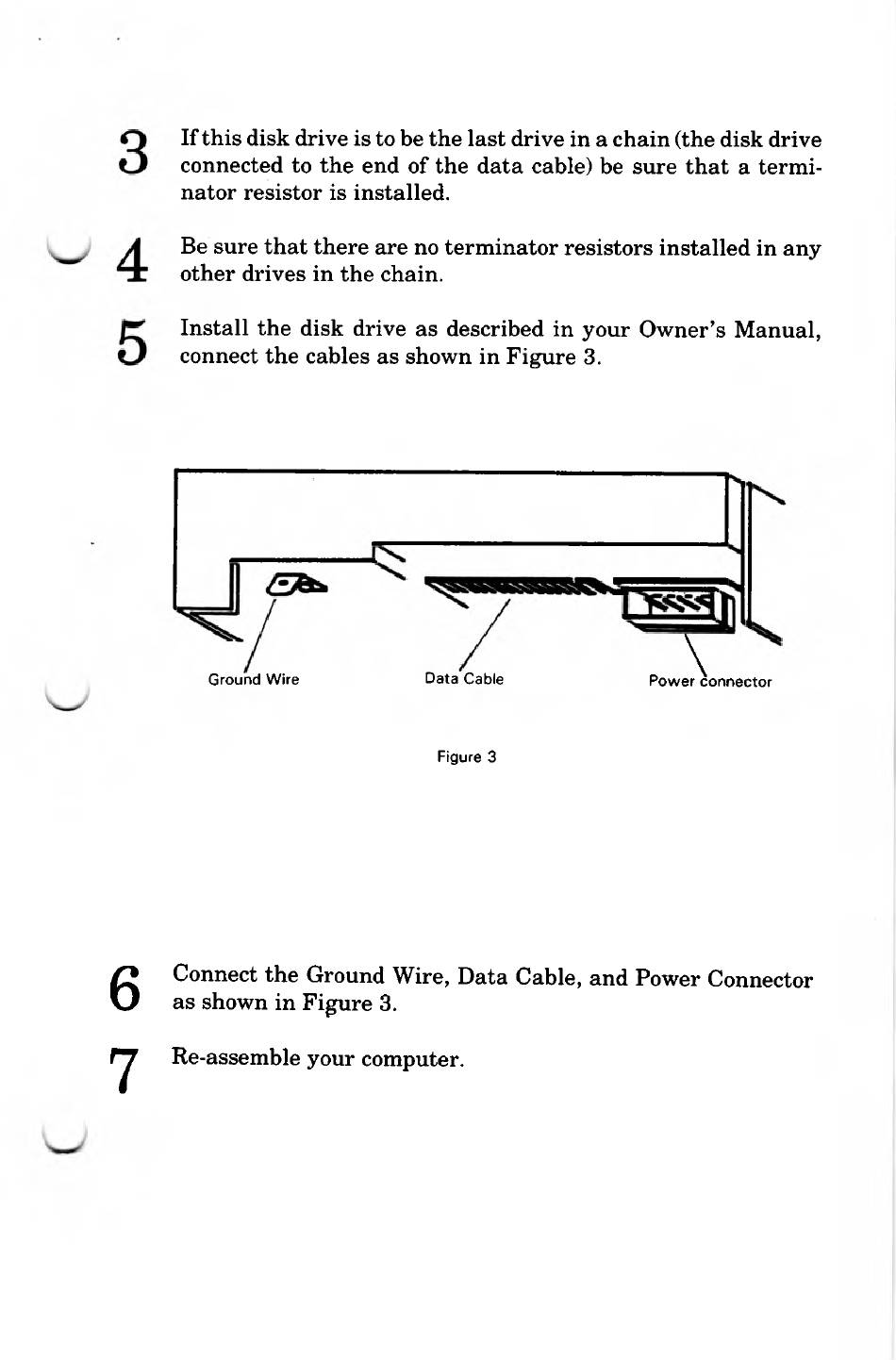

connect the cables as shown in Figure 3.
Ground Wire
6
Connect the Ground W ire, D ata Cable, and Power Connector
as shown in Figure 3.
7
Re-assemble your computer.
Data Cable
Figure 3
\
Power connector
