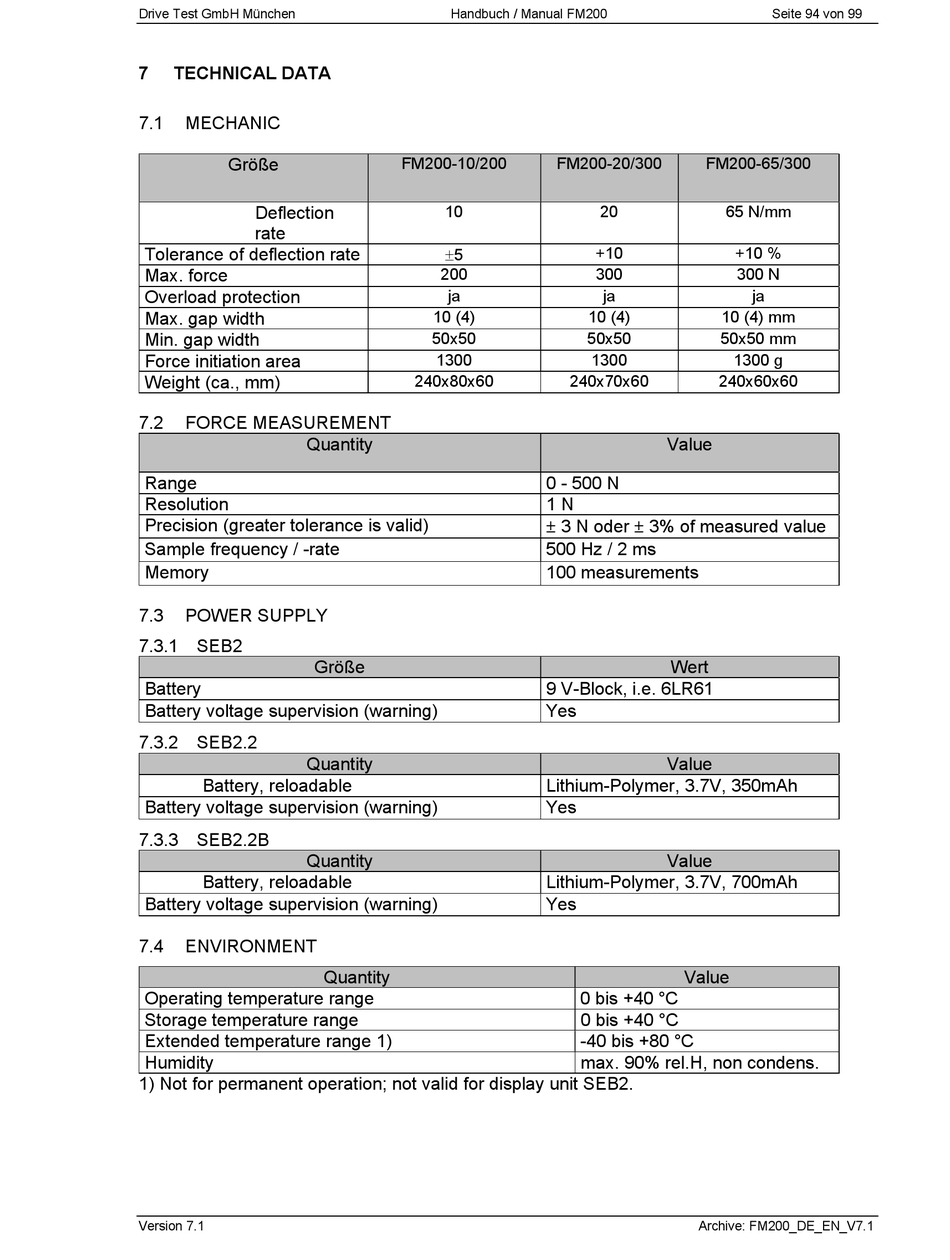

TECHNICAL DATA

7.1

MECHANIC

Größe
Deflection
rate
Tolerance of deflection rate
Max. force
Overload protection
Max. gap width
Min. gap width
Force initiation area
Weight (ca., mm)
7.2

FORCE MEASUREMENT

Quantity
Range
Resolution
Precision (greater tolerance is valid)
Sample frequency / -rate
Memory
7.3

POWER SUPPLY

7.3.1 SEB2

Größe
Battery
Battery voltage supervision (warning)

7.3.2 SEB2.2

Quantity
Battery, reloadable
Battery voltage supervision (warning)

7.3.3 SEB2.2B

Quantity
Battery, reloadable
Battery voltage supervision (warning)
7.4

ENVIRONMENT

Operating temperature range
Storage temperature range
Extended temperature range 1)
Humidity
1) Not for permanent operation; not valid for display unit SEB2.
Version 7.1
Handbuch / Manual FM200
FM200-10/200
10
5
200
ja
10 (4)
50x50
1300
240x80x60
Quantity
FM200-20/300 FM200-65/300
20
+10
300
ja
10 (4) 10 (4) mm
50x50 50x50 mm
1300
240x70x60 240x60x60
Value
0 - 500 N
1 N
 3 N oder  3% of measured value
500 Hz / 2 ms
100 measurements
Wert
9 V-Block, i.e. 6LR61
Yes
Value
Lithium-Polymer, 3.7V, 350mAh
Yes
Value
Lithium-Polymer, 3.7V, 700mAh
Yes
Value
0 bis +40 °C
0 bis +40 °C
-40 bis +80 °C
max. 90% rel.H, non condens.
Archive: FM200_DE_EN_V7.1
Seite 94 von 99
65 N/mm
+10 %
300 N
ja
1300 g
