Drive Test GmbH München
5

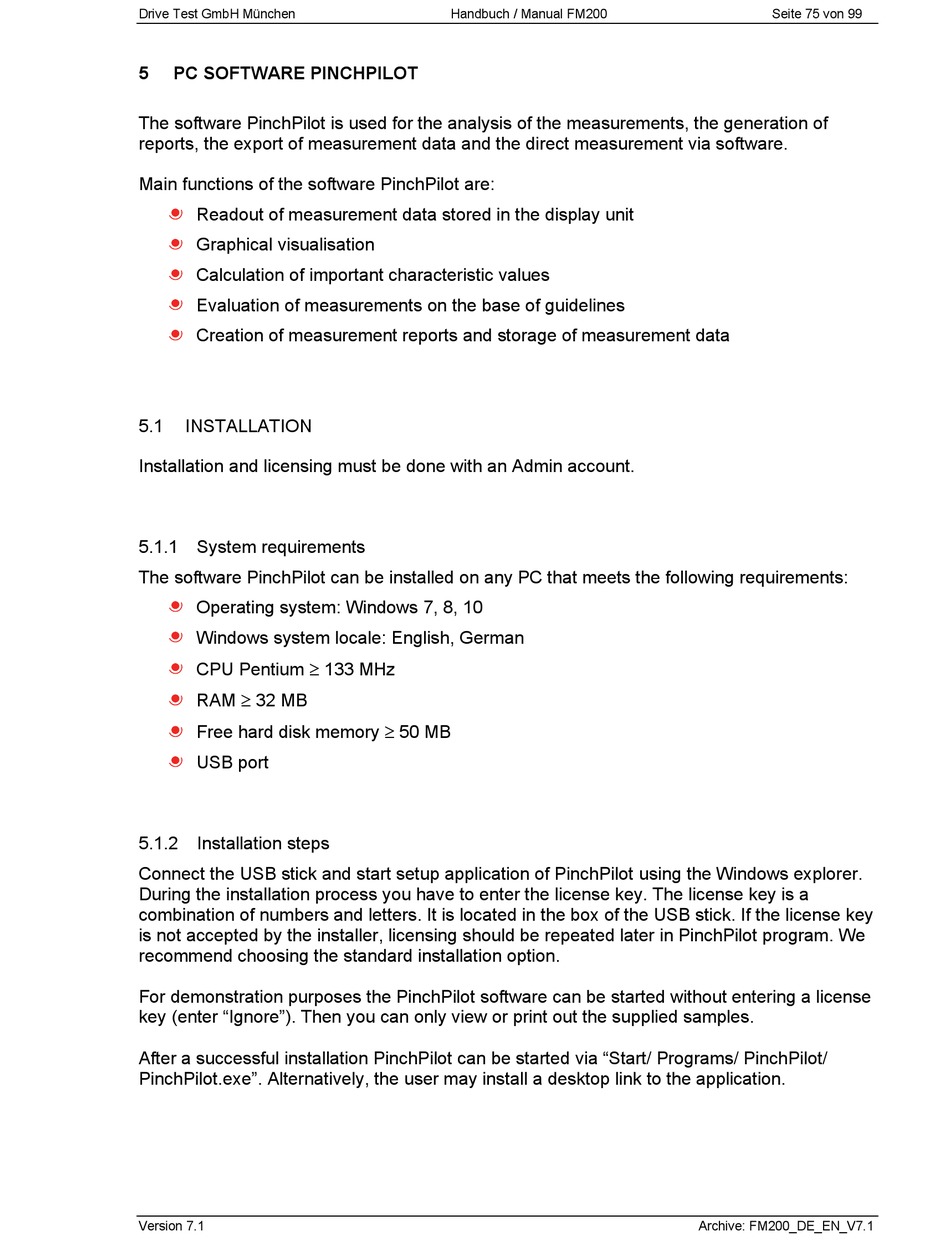

PC SOFTWARE PINCHPILOT

The software PinchPilot is used for the analysis of the measurements, the generation of
reports, the export of measurement data and the direct measurement via software.
Main functions of the software PinchPilot are:
Readout of measurement data stored in the display unit
Graphical visualisation
Calculation of important characteristic values
Evaluation of measurements on the base of guidelines
Creation of measurement reports and storage of measurement data
5.1

INSTALLATION

Installation and licensing must be done with an Admin account.

5.1.1 System requirements

The software PinchPilot can be installed on any PC that meets the following requirements:
Operating system: Windows 7, 8, 10
Windows system locale: English, German
CPU Pentium  133 MHz
RAM  32 MB
Free hard disk memory  50 MB
USB port

5.1.2 Installation steps

Connect the USB stick and start setup application of PinchPilot using the Windows explorer.
During the installation process you have to enter the license key. The license key is a
combination of numbers and letters. It is located in the box of the USB stick. If the license key
is not accepted by the installer, licensing should be repeated later in PinchPilot program. We
recommend choosing the standard installation option.
For demonstration purposes the PinchPilot software can be started without entering a license
key (enter "Ignore"). Then you can only view or print out the supplied samples.
After a successful installation PinchPilot can be started via "Start/ Programs/ PinchPilot/
PinchPilot.exe". Alternatively, the user may install a desktop link to the application.
Version 7.1
Handbuch / Manual FM200 Seite 75 von 99
Archive: FM200_DE_EN_V7.1
