PinchPilot supports "drag and drop". With this method, lines or a group of lines in the
sequence window can be moved. When Windows explorer is on the monitor, some loading
processes can be elegantly executed:
Get measurements into the graphic display or into the sequence window.
Get templates into the sequence window.

5.10.3 Options of sequences

4-Lines vs. 1-Line:
In case of triple measurements, the 4-lines representation makes sense. The table contains
the results of all three measurements plus the average values. The alternative is the 1-line
representation. Each measurement is represented in one line which contains the average
values. With this method it is possible to present many measurements on one sheet.
Settings:
Figure 5.8 shows the settings for measurement sequences:
Update (matching):
Every measurement gets at the time of its creation a guideline and a limit property according
to the sensor used and the setting of the display unit. Normally, the application of sequence
properties to the measurement is disabled, if guideline or limit property from the sequence
and measurement do not comply.
However, the user can allow the application by changing the option settings:
Allow update (matching) with guideline conflict
Allow update (matching) with limit conflict
Move files in the object directory:
The measurement directory is a folder carrying the name entered into the object field of
sequence properties. The object directory is located below the upload directory. Moving
measurement data files is performed during the matching (update) process. If the object
directory does not exist, it will be created automatically. Eventually existing subdirectories will
be moved as well.
Version 7.1
Handbuch / Manual FM200

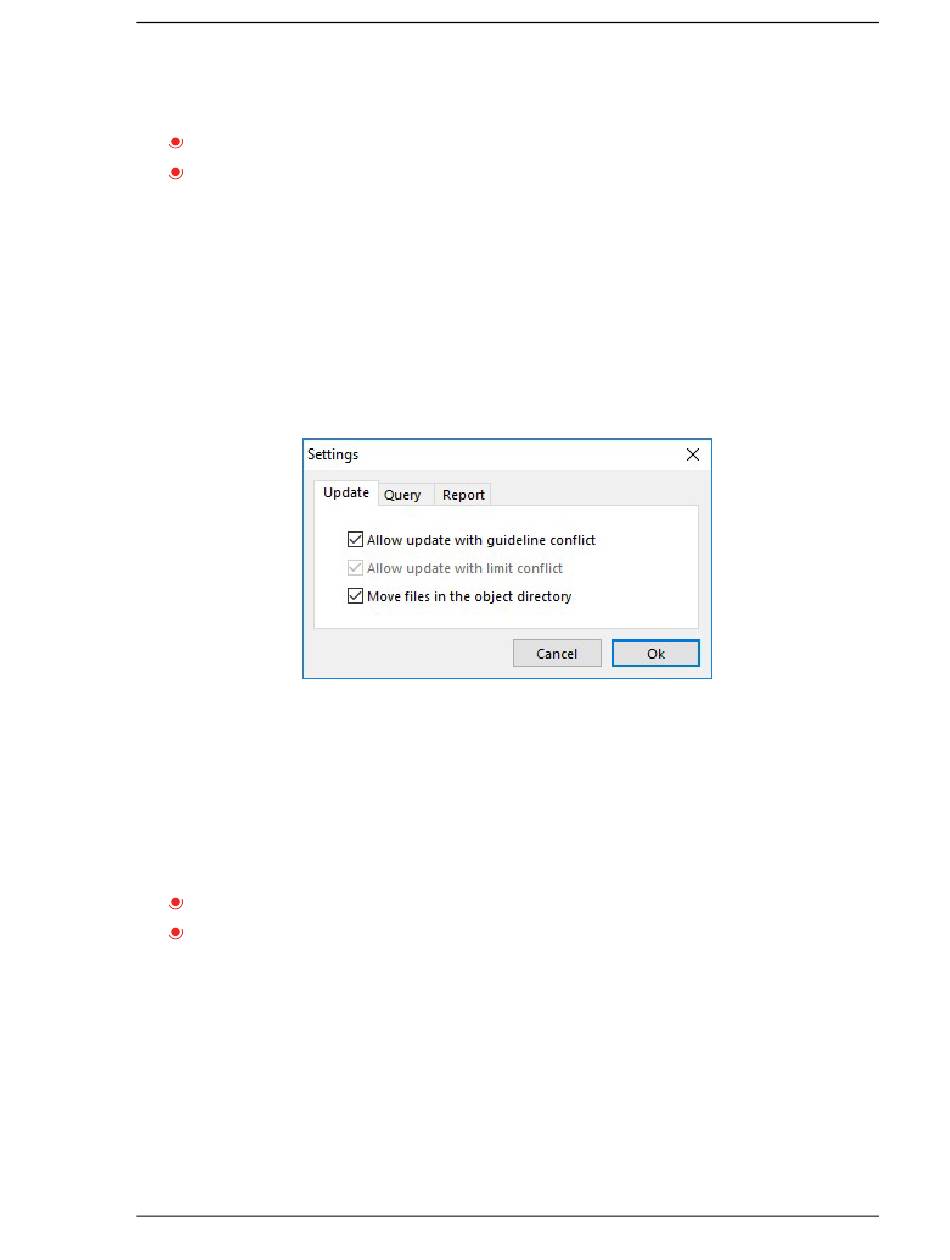

Fig. 5.8: Settings for measurement sequences
