3.8

BATTERY SEB2

The SEB2 is equipped with a non rechargeable Alkaline battery.

3.8.1 Battery load state

When the message „BAT" is permanently indicated on the LCD display, it is time for a battery
exchange. A special capacitor ensures that no measurement data will be lost and the real
time clock does not stop running.
Change the battery by removing the cap on left hand side of the display unit. Pressing the
two locking buttons does this.


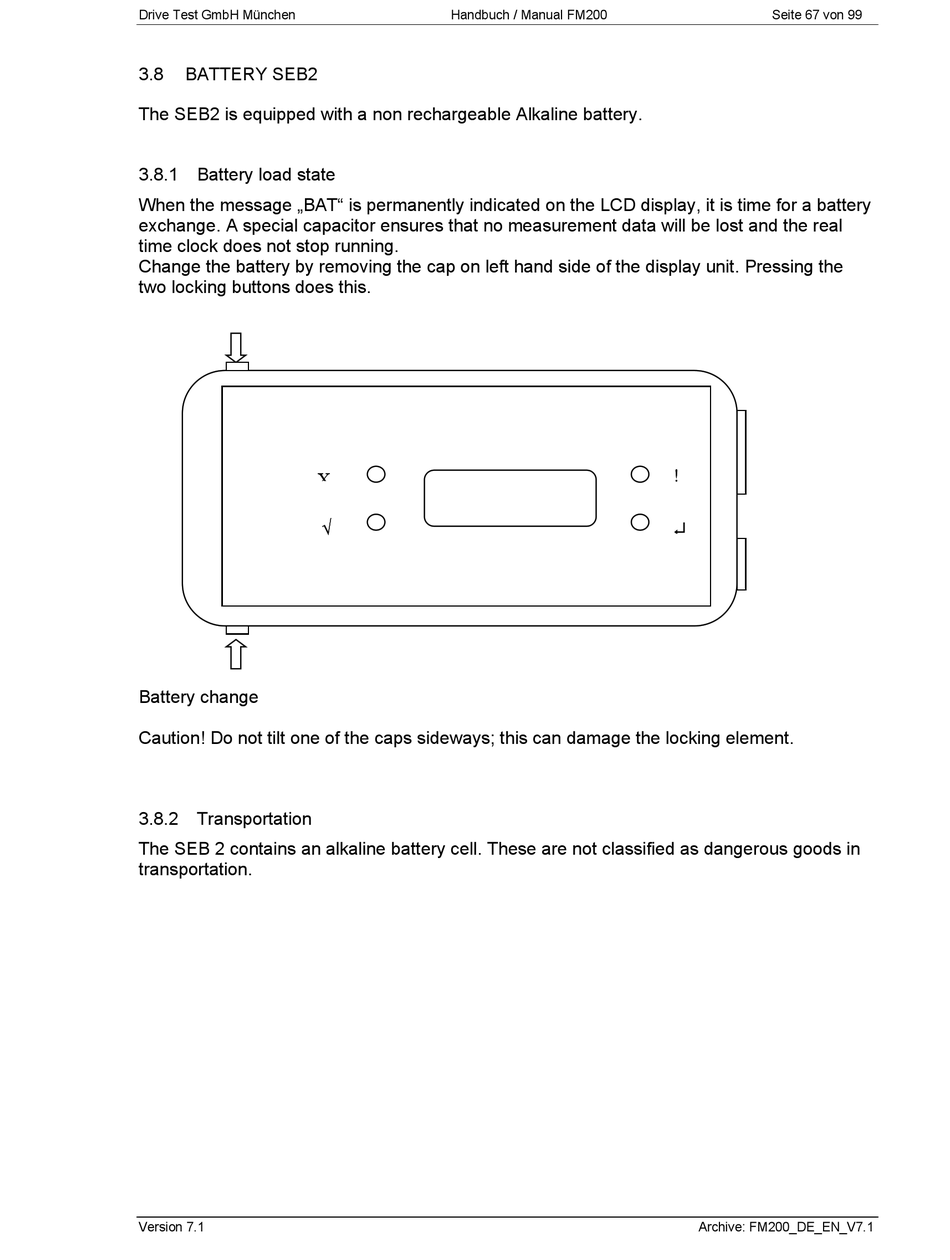

Battery change
Caution! Do not tilt one of the caps sideways; this can damage the locking element.

3.8.2 Transportation

The SEB 2 contains an alkaline battery cell. These are not classified as dangerous goods in
transportation.
