2.2

MEASURING POSITION

The instrument is to be used such that the static part is connected to the stop of the closing
system and the movable part faces towards the moving edge.
In case of two moving edges, choose one of the edges for the static part and follow the
movement of this edge manually. Select a solid and even underlay.

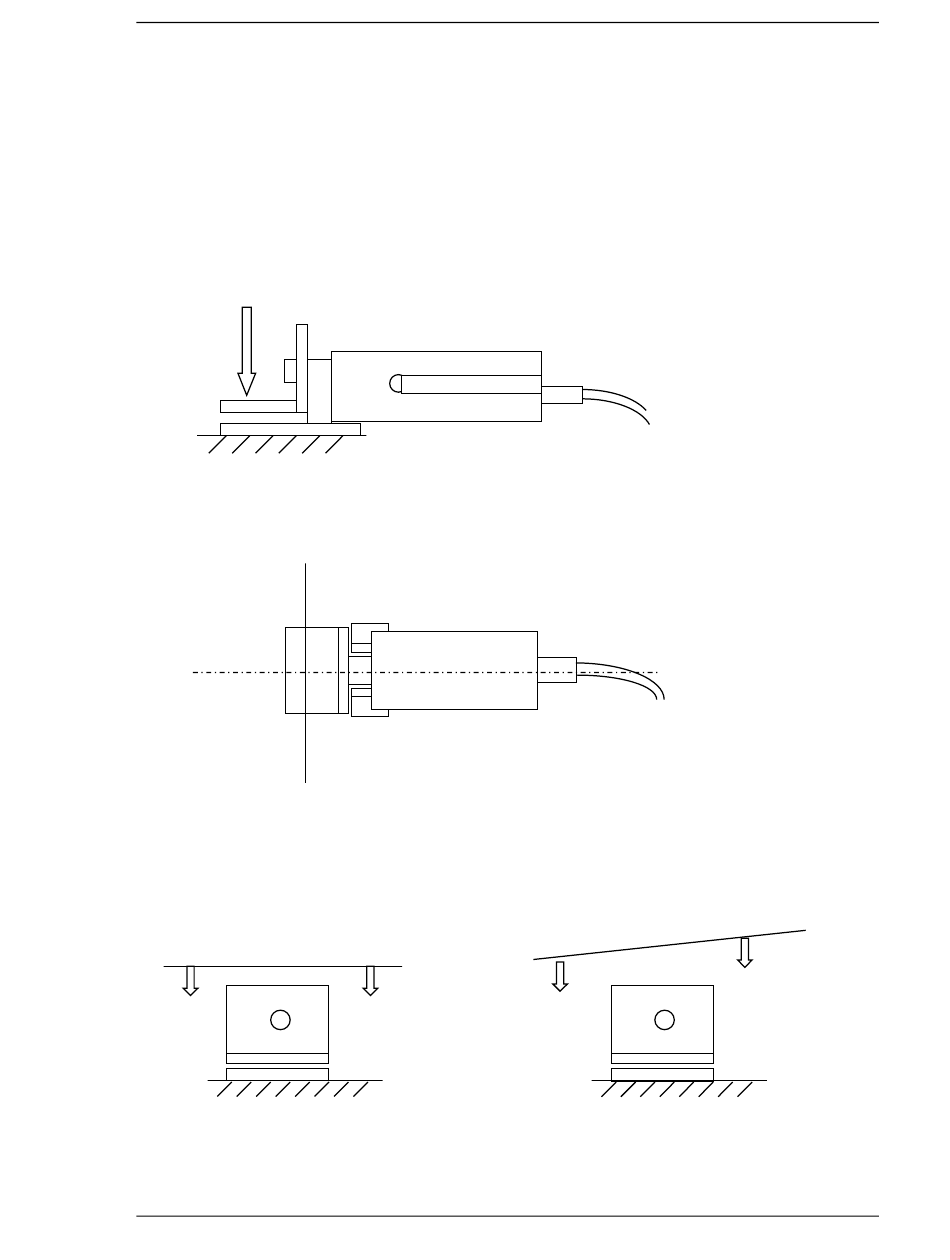

Vertical force initiation:
The force initiation should be vertical to the upper force initiations area.
Lined Force Initiation:
The force should be initiated in the form of a line in an angle of 90° to the symmetrical axis of
the sensor. The line should go through the centre of the initiation disc.
Best force initiations line
Parallel Force Initiation:
The force initiation area and the moving edge should be parallel to each other.
Right Wrong
