Integration into the LoRa network

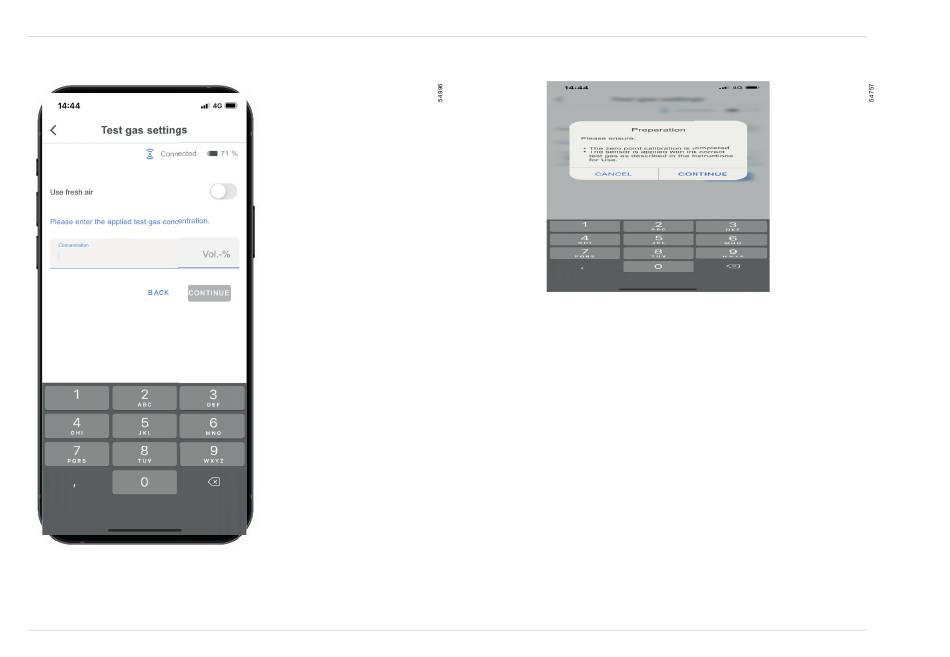

2. Enter the concentration of the test gas used (target gas).
3. Apply the test gas (see "Preparing the test gas supply", page 69).
74
4. Check the preparations.
5. Wait until the stability criterion for calibration is met. ("Span
Calibration" button will be greyed out until the stability criterion is
met.)
6. Press "Span Calibration" to set the sensitivity.
7. Check whether the measured value shown corresponds to the
target gas concentration.
8. Terminate the supply of target gas.
7 Integration into the LoRa network
LoRa radio technology is used for the remote data transmission of
measured values from the X-node to the LoRa network server via
LoRaWAN-capable gateways. The design of the network, as well as
the integration of the X-node, are specific to the customer and will
therefore not be described in any further detail. Instead, access to the
necessary information, to the payload decoder, as well as a list of
requirements for the integration of an X-node in a LoRa network, will
be shown.
