Operation and controls
– A User PIN is already saved in the X-node device

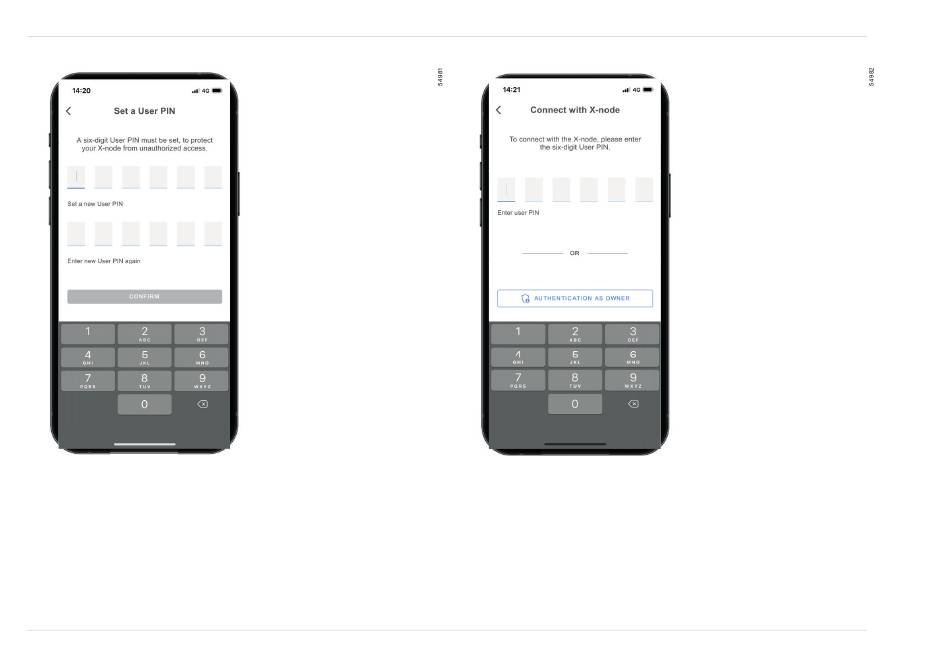

If the Owner has already saved a PIN for the User Level, then the
User PIN will be requested when initially connecting to the
smartphone (see the following figure).
If Owner authorisations are required, the Owner Key can be
entered using the "Scan key card" option and Owner Level
authorisations activated.
60
– A PIN is already saved in the X-node and a connection was
already established with the device
In this case, the device will appear with a white symbol on the
overview page. When establishing the connection, the User PIN
saved to the app (which was already entered) will be used so that
there is no new PIN request.
