General instructions for installation:
– Always install the X-node in the middle of a room or monitored
surroundings where there is little or no vibration in order to ensure
there is never any obstruction to the flow of gas.
– Do not install the X-node close to windows, doors or ventilation
systems where there could be unusually large currents of air.
4.2

Assembly and commissioning

Insert a DrägerSensor before starting up the X-node. Compatible
sensors are listed in Section 3.3 Compatible sensors.
Prerequisites
– Only use sensors that have been removed from the container
immediately before setting up at the place of initial installation.
Technical manual |
Dräger X-node
Device installation and commissioning

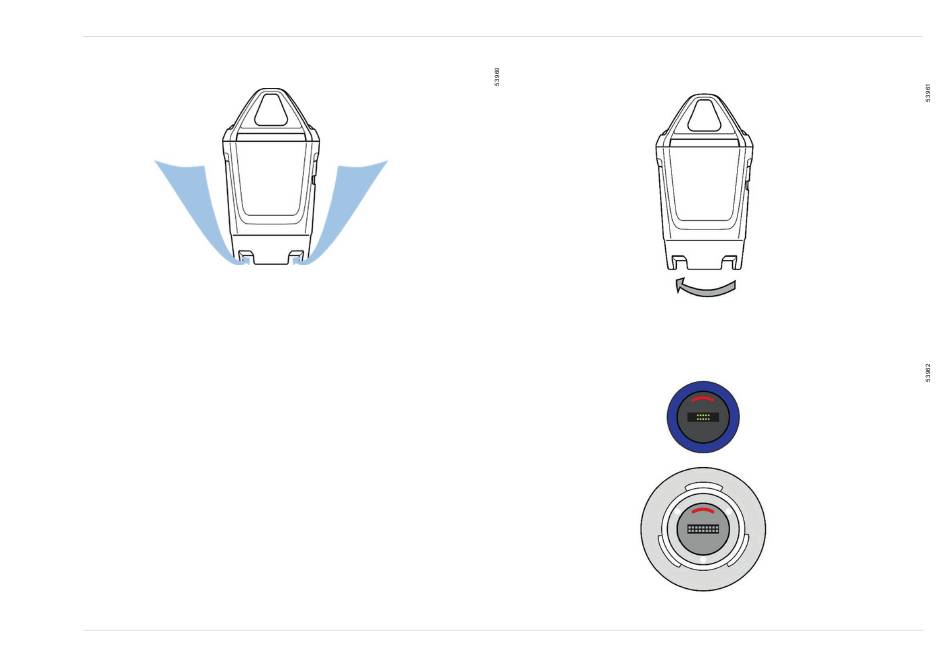

1. Remove the bayonet ring by rotating it in a clockwise direction.
2. Insert the sensor and rotate it carefully until the guide ridges are
aligned over each other.
