Pressure infusor panel

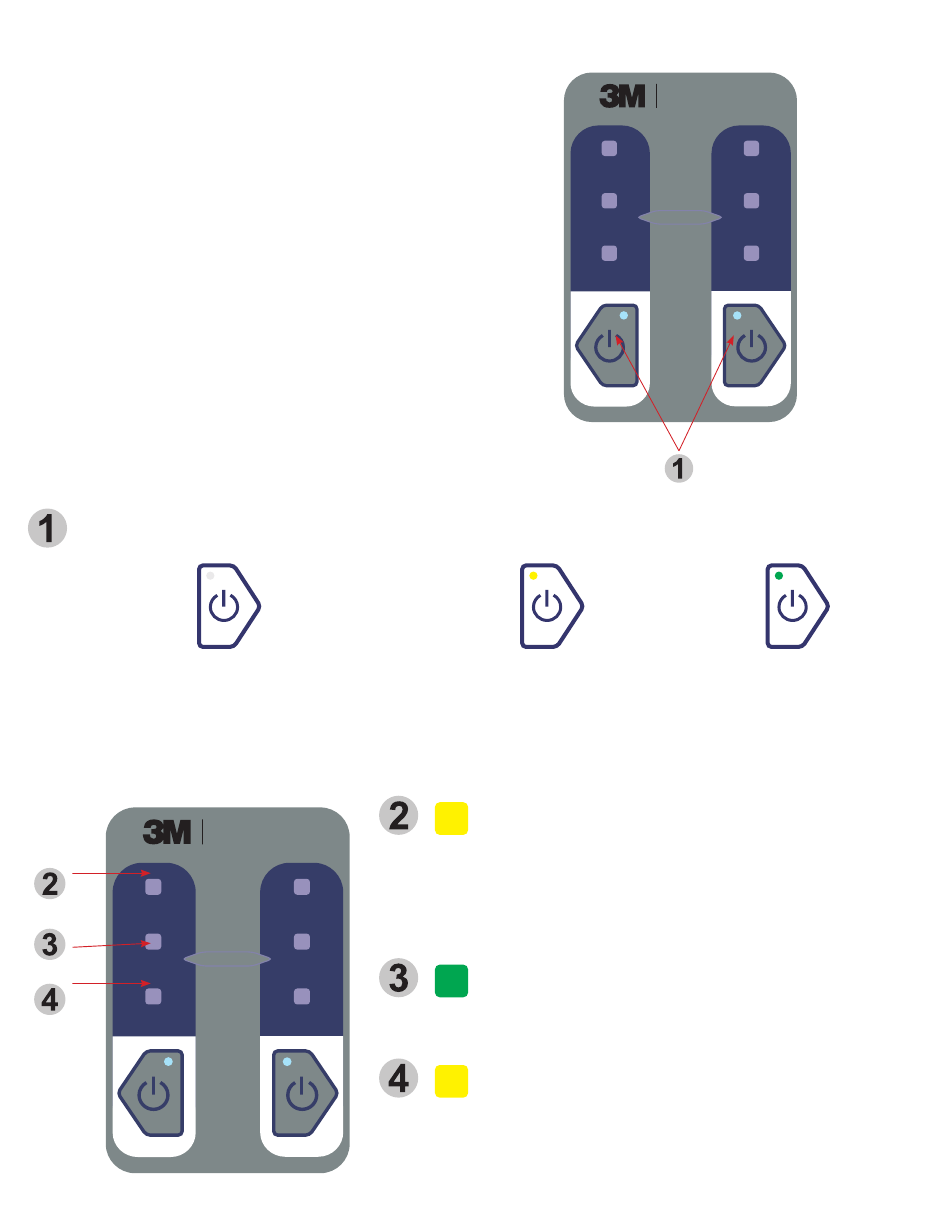

The pressure infusor panel displays the status of the pressure infusors�
When the pressure infusor is initially turned ON, the indicators will
illuminate to show operation� The pressure infusor power indicator
illuminates yellow (standby) when the main power switch is turned
ON and the pressure infusors are able to be turned ON� A green
LED indicates that the infusor is ON� To pressurize/depressurize
the pressure infusor, verify the pressure infusor door is closed and
latched, then press the pressure infusor start/stop button� Each
pressure infusor is controlled independently�
Pressure Infusor Power
no power to unit
The indicator on the start/stop button notifies the user of the status
of each pressure infusor� No light indicates that the unit is either
not plugged in, the main power switch is not turned ON, or there
is a system fault� See "Section 4: Troubleshooting" on 7 for more
information�
High High
In Range In Range
300 mmHg
Low Low
Ranger
™
High High
In Range In Range
Low
Low
High High
In Range In Range
Low Low
standby
A yellow indicator notifies the user
that the pressure infusor is in standby
mode and is ready to be turned ON�
High
Visual and audible indicator: The High yellow indicator illuminates and
an audible indicator notifies the user when the pressure infusor bladder is
above 330 mmHg. The visual and audible indicator will continue as long as
the pressure remains above 330 mmHg. If the High condition is observed,
the infusor chamber should be turned OFF by using the pressure infusor
start/stop button. Use of the infusor chamber should be discontinued
immediately, and 3M contacted for repair and servicing.
In Range
Visual only: The In Range green indicator flashes as the pressure is
increasing in the pressure infusor� Once the pressure is within the target
range of 230 330 mmHg, the indicator will be at a consistent green�
Low
Visual and audible indicator: The Low yellow indicator illuminates and an
audible indicator notifies the user when the pressure infusor bladder has not
reached 230 mmHg within approximately 30 seconds or when the pressure
drops below 230 mmHg during use�
5
Ranger
™
High High
In Range In Range
300 mmHg
Low
Low
ON
A green indicator notifies the user that
the infusor is pressurized�
