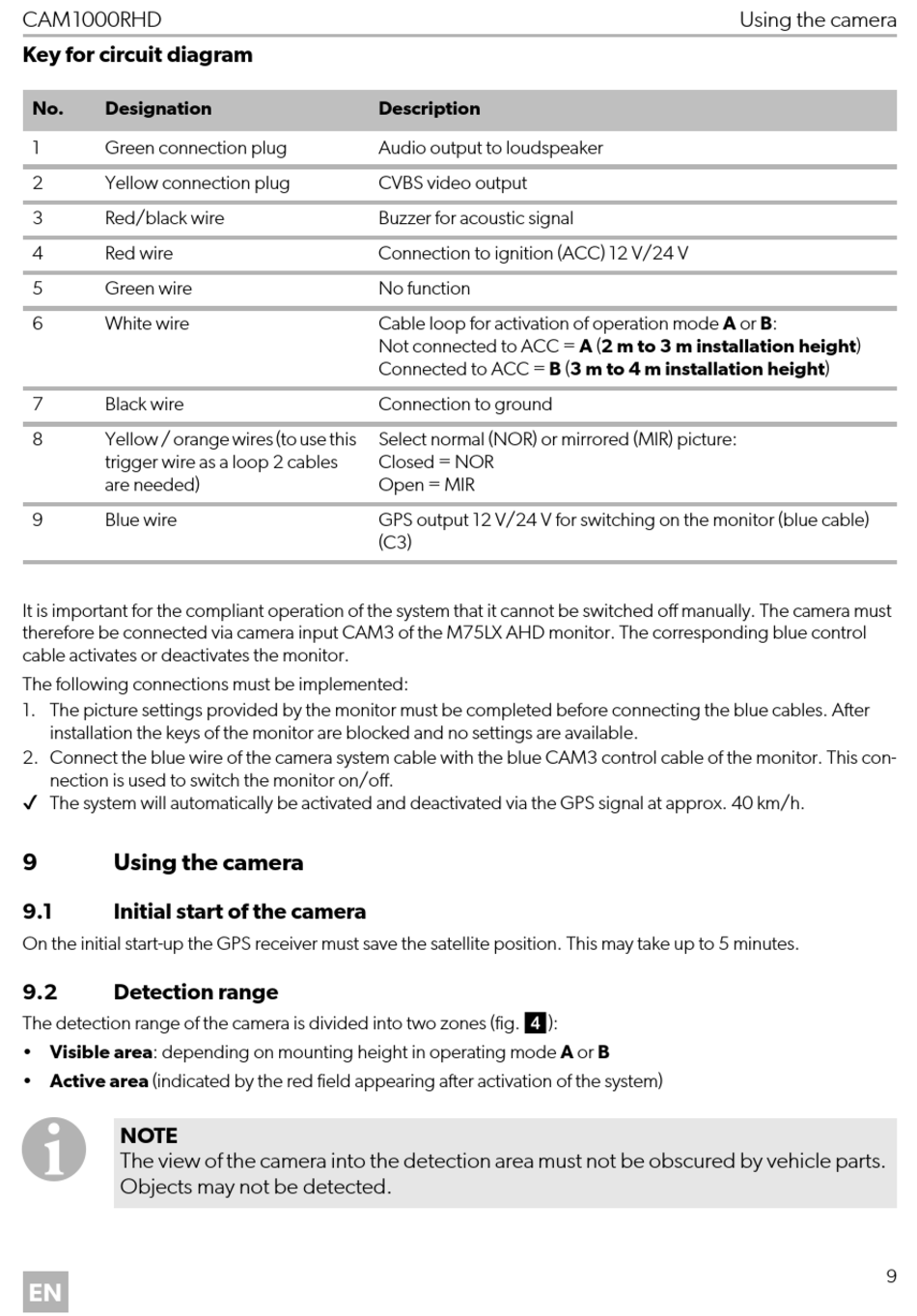

CAM1000RHD
Key for circuit diagram
No. Designation
1 Green connection plug
2 Yellow connection plug
3 Red/black wire
4 Red wire
5 Green wire
6 White wire
7 Black wire
8 Yellow / orange wires (to use this
trigger wire as a loop 2 cables
are needed)
9 Blue wire
It is important for the compliant operation of the system that it cannot be switched off manually. The camera must
therefore be connected via camera input CAM3 of the M75LX AHD monitor. The corresponding blue control
cable activates or deactivates the monitor.
The following connections must be implemented:
1. The picture settings provided by the monitor must be completed before connecting the blue cables. After
installation the keys of the monitor are blocked and no settings are available.
2. Connect the blue wire of the camera system cable with the blue CAM3 control cable of the monitor. This con-
nection is used to switch the monitor on/off.
✔ The system will automatically be activated and deactivated via the GPS signal at approx. 40 km/h.
9

Using the camera

9.1 Initial start of the camera
On the initial start-up the GPS receiver must save the satellite position. This may take up to 5 minutes.
9.2

Detection range

The detection range of the camera is divided into two zones (fig. 4):
• Visible area: depending on mounting height in operating mode A or B
• Active area (indicated by the red field appearing after activation of the system)
I
NOTE
The view of the camera into the detection area must not be obscured by vehicle parts.
Objects may not be detected.
EN
Description
Audio output to loudspeaker
CVBS video output
Buzzer for acoustic signal
Connection to ignition (ACC) 12 V/24 V
No function
Cable loop for activation of operation mode A or B:
Not connected to ACC = A (2 m to 3 m installation height)
Connected to ACC = B (3 m to 4 m installation height)
Connection to ground
Select normal (NOR) or mirrored (MIR) picture:
Closed = NOR
Open = MIR
GPS output 12 V/24 V for switching on the monitor (blue cable)
(C3)
