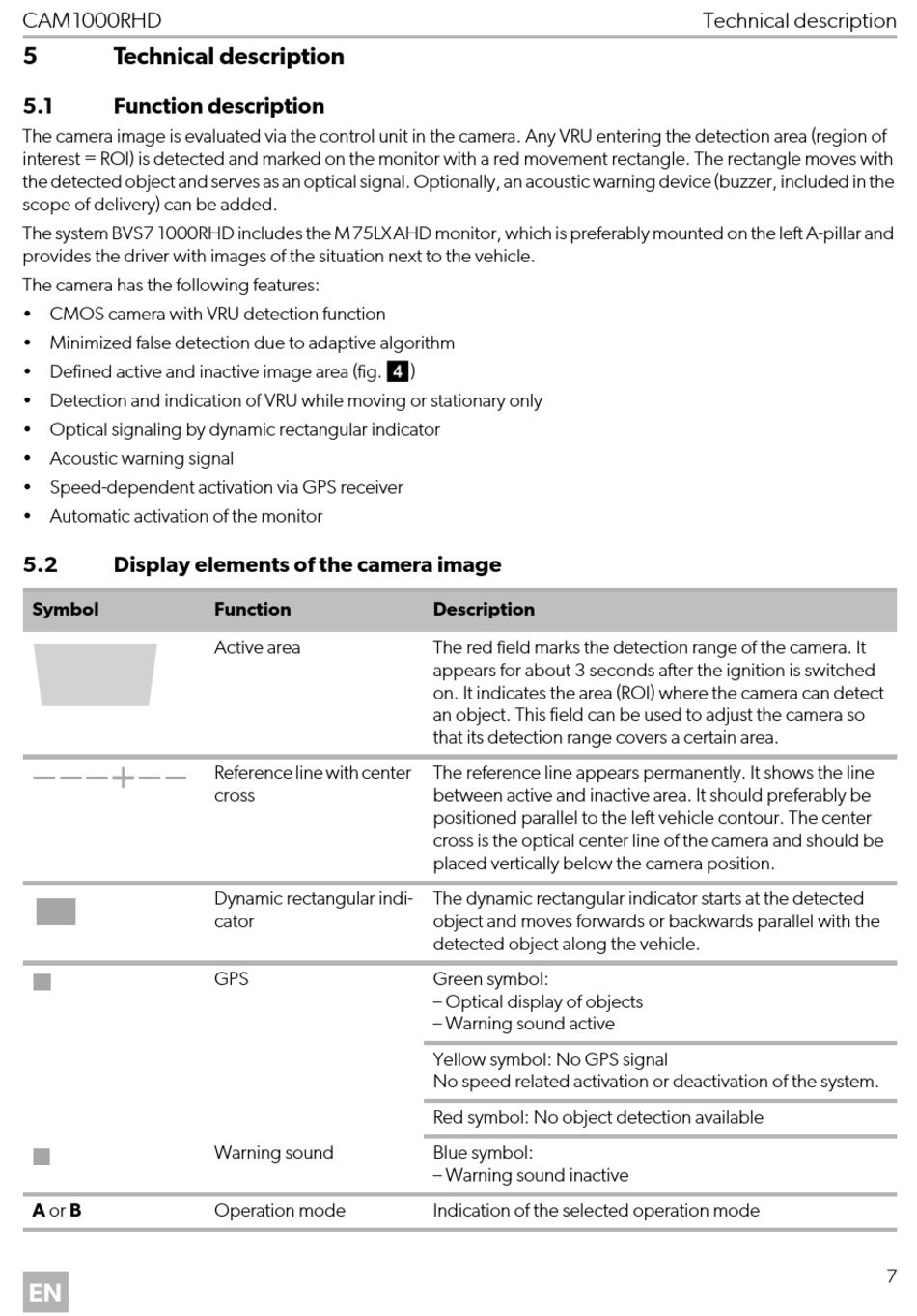

5

Technical description

5.1

Function description

The camera image is evaluated via the control unit in the camera. Any VRU entering the detection area (region of
interest = ROI) is detected and marked on the monitor with a red movement rectangle. The rectangle moves with
the detected object and serves as an optical signal. Optionally, an acoustic warning device (buzzer, included in the
scope of delivery) can be added.
The system BVS7 1000RHD includes the M75LXAHD monitor, which is preferably mounted on the left A-pillar and
provides the driver with images of the situation next to the vehicle.
The camera has the following features:
• CMOS camera with VRU detection function
• Minimized false detection due to adaptive algorithm
• Defined active and inactive image area (fig. 4)
• Detection and indication of VRU while moving or stationary only
• Optical signaling by dynamic rectangular indicator
• Acoustic warning signal
• Speed-dependent activation via GPS receiver
• Automatic activation of the monitor
5.2 Display elements of the camera image
Symbol
A or B
EN
Function
Active area
Reference line with center
cross
Dynamic rectangular indi-
cator
GPS
Warning sound
Operation mode
Description
The red field marks the detection range of the camera. It
appears for about 3 seconds after the ignition is switched
on. It indicates the area (ROI) where the camera can detect
an object. This field can be used to adjust the camera so
that its detection range covers a certain area.
The reference line appears permanently. It shows the line
between active and inactive area. It should preferably be
positioned parallel to the left vehicle contour. The center
cross is the optical center line of the camera and should be
placed vertically below the camera position.
The dynamic rectangular indicator starts at the detected
object and moves forwards or backwards parallel with the
detected object along the vehicle.
Green symbol:
– Optical display of objects
– Warning sound active
Yellow symbol: No GPS signal
No speed related activation or deactivation of the system.
Red symbol: No object detection available
Blue symbol:
– Warning sound inactive
Indication of the selected operation mode
