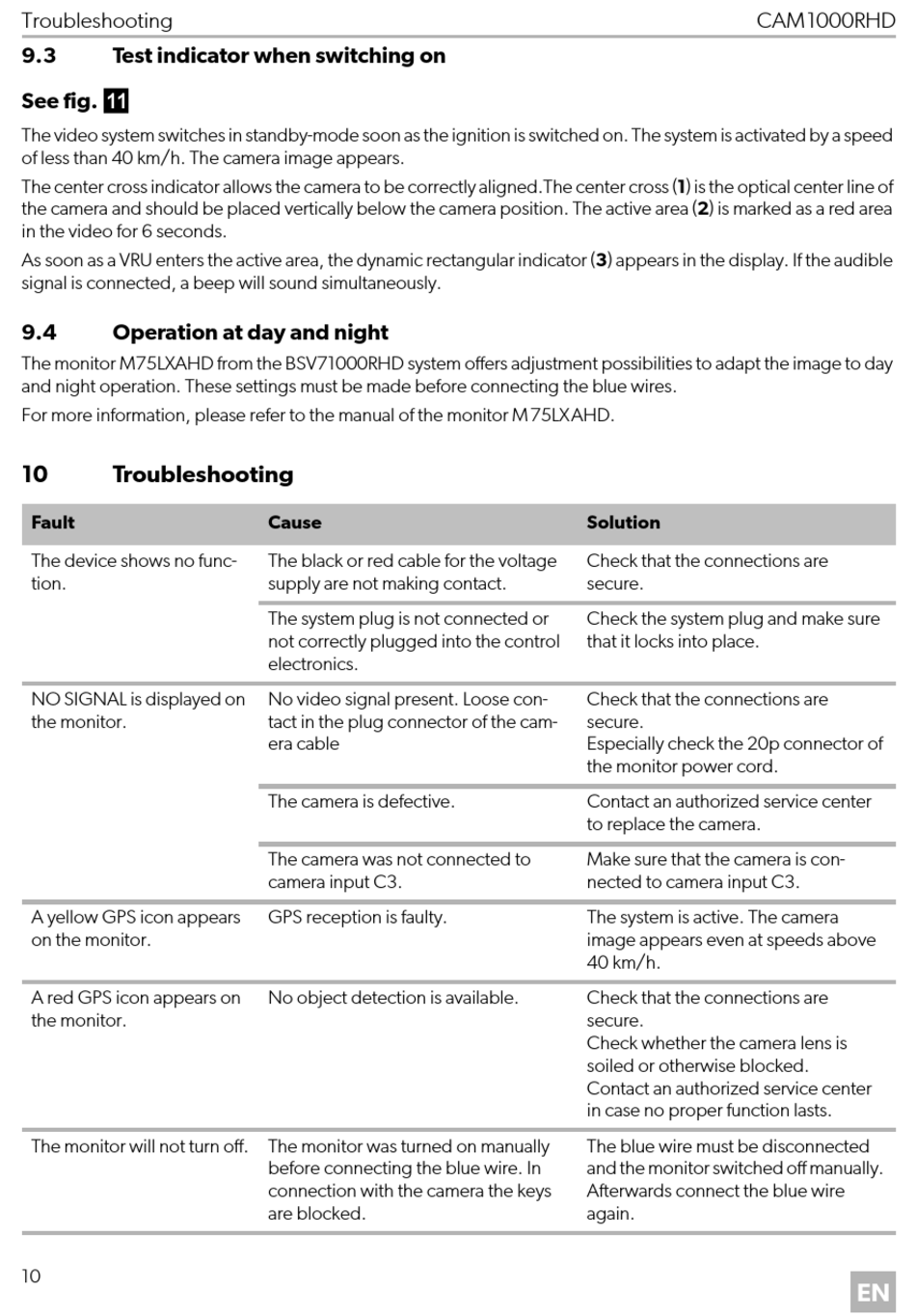

Troubleshooting

9.3 Test indicator when switching on
See fig. a
The video system switches in standby-mode soon as the ignition is switched on. The system is activated by a speed
of less than 40 km/h. The camera image appears.
The center cross indicator allows the camera to be correctly aligned.The center cross (1) is the optical center line of
the camera and should be placed vertically below the camera position. The active area (2) is marked as a red area
in the video for 6 seconds.
As soon as a VRU enters the active area, the dynamic rectangular indicator (3) appears in the display. If the audible
signal is connected, a beep will sound simultaneously.
9.4 Operation at day and night
The monitor M75LXAHD from the BSV71000RHD system offers adjustment possibilities to adapt the image to day
and night operation. These settings must be made before connecting the blue wires.
For more information, please refer to the manual of the monitor M75LXAHD.
10 Troubleshooting
Fault
The device shows no func-
tion.
NO SIGNAL is displayed on
the monitor.
A yellow GPS icon appears
on the monitor.
A red GPS icon appears on
the monitor.
The monitor will not turn off. The monitor was turned on manually
10
Cause
The black or red cable for the voltage
supply are not making contact.
The system plug is not connected or
not correctly plugged into the control
electronics.
No video signal present. Loose con-
tact in the plug connector of the cam-
era cable
The camera is defective.
The camera was not connected to
camera input C3.
GPS reception is faulty.
No object detection is available.
before connecting the blue wire. In
connection with the camera the keys
are blocked.
CAM1000RHD
Solution
Check that the connections are
secure.
Check the system plug and make sure
that it locks into place.
Check that the connections are
secure.
Especially check the 20p connector of
the monitor power cord.
Contact an authorized service center
to replace the camera.
Make sure that the camera is con-
nected to camera input C3.
The system is active. The camera
image appears even at speeds above
40 km/h.
Check that the connections are
secure.
Check whether the camera lens is
soiled or otherwise blocked.
Contact an authorized service center
in case no proper function lasts.
The blue wire must be disconnected
and the monitor switched off manually.
Afterwards connect the blue wire
again.
