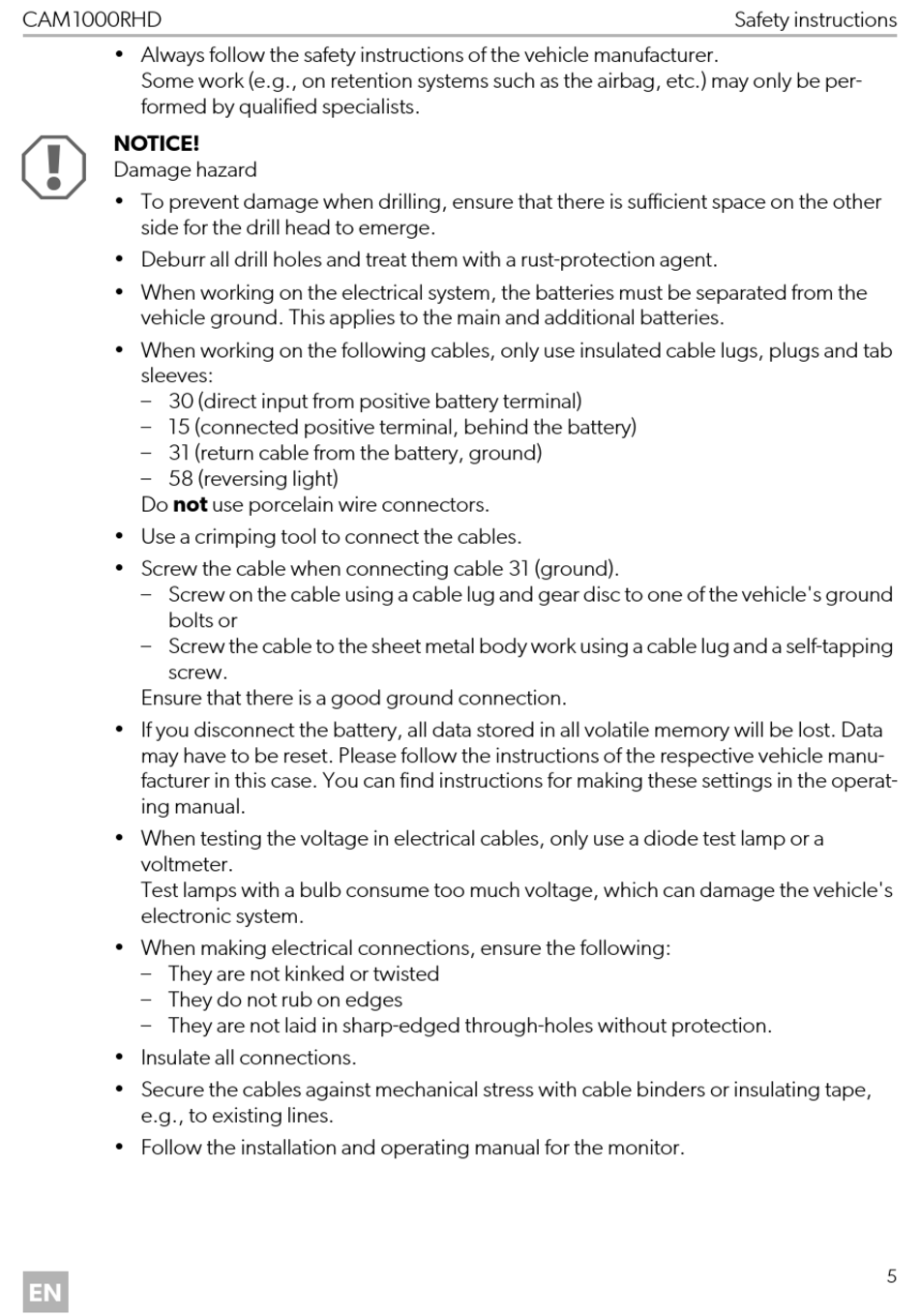

CAM1000RHD
• Always follow the safety instructions of the vehicle manufacturer.
Some work (e.g., on retention systems such as the airbag, etc.) may only be per-
formed by qualified specialists.
A
NOTICE!
Damage hazard
• To prevent damage when drilling, ensure that there is sufficient space on the other
side for the drill head to emerge.
• Deburr all drill holes and treat them with a rust-protection agent.
• When working on the electrical system, the batteries must be separated from the
vehicle ground. This applies to the main and additional batteries.
• When working on the following cables, only use insulated cable lugs, plugs and tab
sleeves:
– 30 (direct input from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return cable from the battery, ground)
– 58 (reversing light)
Do not use porcelain wire connectors.
• Use a crimping tool to connect the cables.
• Screw the cable when connecting cable 31 (ground).
– Screw on the cable using a cable lug and gear disc to one of the vehicle's ground
bolts or
– Screw the cable to the sheet metal body work using a cable lug and a self-tapping
screw.
Ensure that there is a good ground connection.
• If you disconnect the battery, all data stored in all volatile memory will be lost. Data
may have to be reset. Please follow the instructions of the respective vehicle manu-
facturer in this case. You can find instructions for making these settings in the operat-
ing manual.
• When testing the voltage in electrical cables, only use a diode test lamp or a
voltmeter.
Test lamps with a bulb consume too much voltage, which can damage the vehicle's
electronic system.
• When making electrical connections, ensure the following:
– They are not kinked or twisted
– They do not rub on edges
– They are not laid in sharp-edged through-holes without protection.
• Insulate all connections.
• Secure the cables against mechanical stress with cable binders or insulating tape,
e.g., to existing lines.
• Follow the installation and operating manual for the monitor.
EN
Safety instructions
5
