Deditec USB-BITP-200 Hardware Dokumentation Seite 73

4.2.2.1.5.2. I/O configuration 2
These settings are used to configure I/O modules. The mode or
voltage/current range can be set. This settings will be used when
the module is powered on.
Note: If there are no relevant I/O modules. Those settings have no
effect.

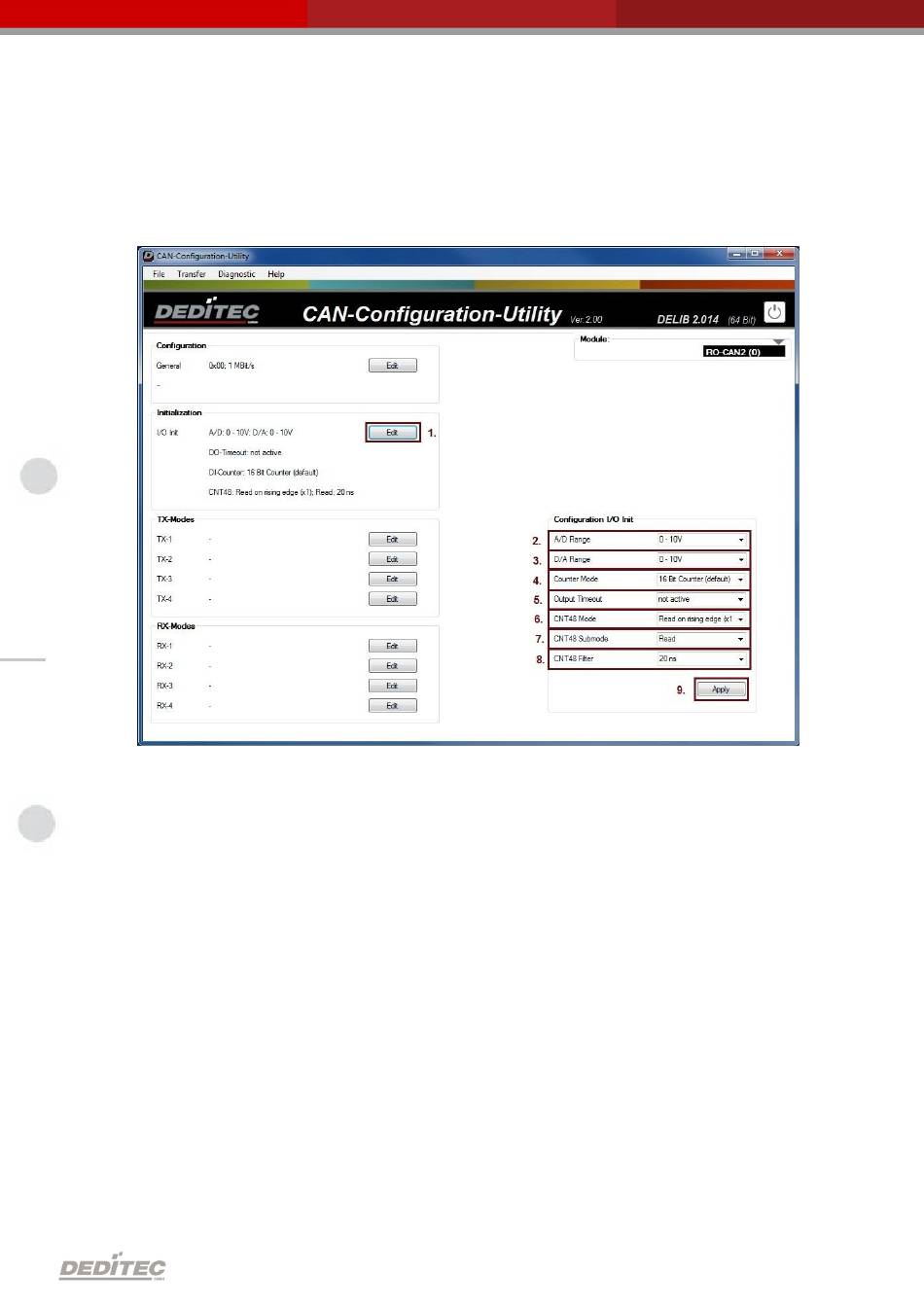

1. Via
"Edit" a additional window opens there you can edit settings.
2. The value range indicates the range in which analog signals are
digitally converted (e.g., in the range 0-10V).
3. The value range indicates the range in which digital signals are
converted analogously (for example in the range 0-10V).
4. Is responsible for the counter mode of O8-R8 modules.
Optionally can be counted with 16 bits, or be incremented or
decremented by 8 bits each.
5. Specifies the time after which the outputs switch off when a
Software | Seite 73
