4.2.2.12. Stepper

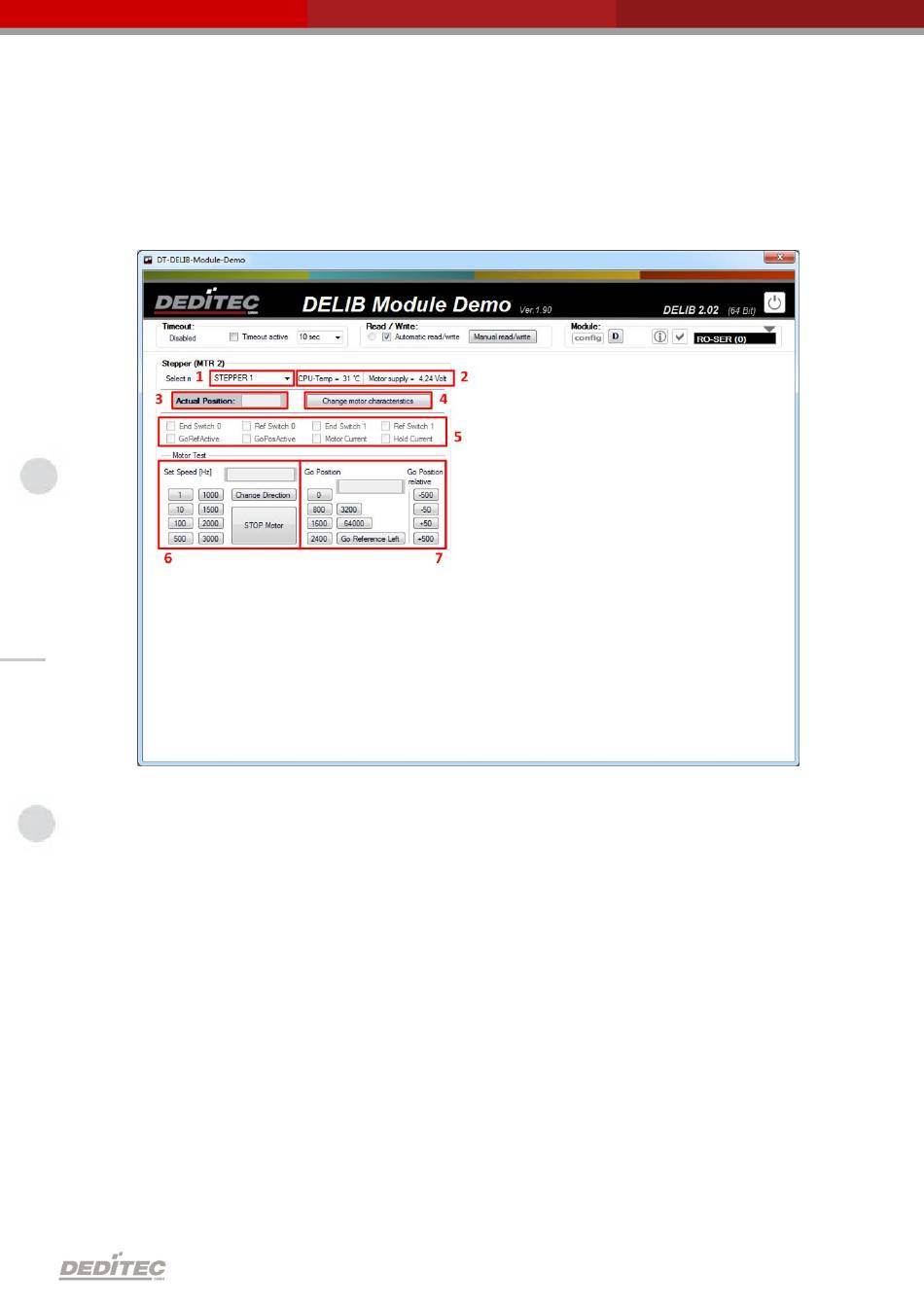

This example shows the 1st stepper motor of an RO-SER-
Stepper2 module.
1. Select the stepper motor.
2. Current CPU temperature and voltage supply of the stepper
motor.
3. Current stepper position.
4. Opens the Motor characteristic view. For example, the step mode
can be set here.
5. Overview of current switches.
6. Here the speed of the stepper motor can be set and read back.
7. Here you can define a position to be approached by the stepper
motor. Here, an absolute or relative position (to the current position)
can be defined.
