4.2.2.9. 48Bit counter input

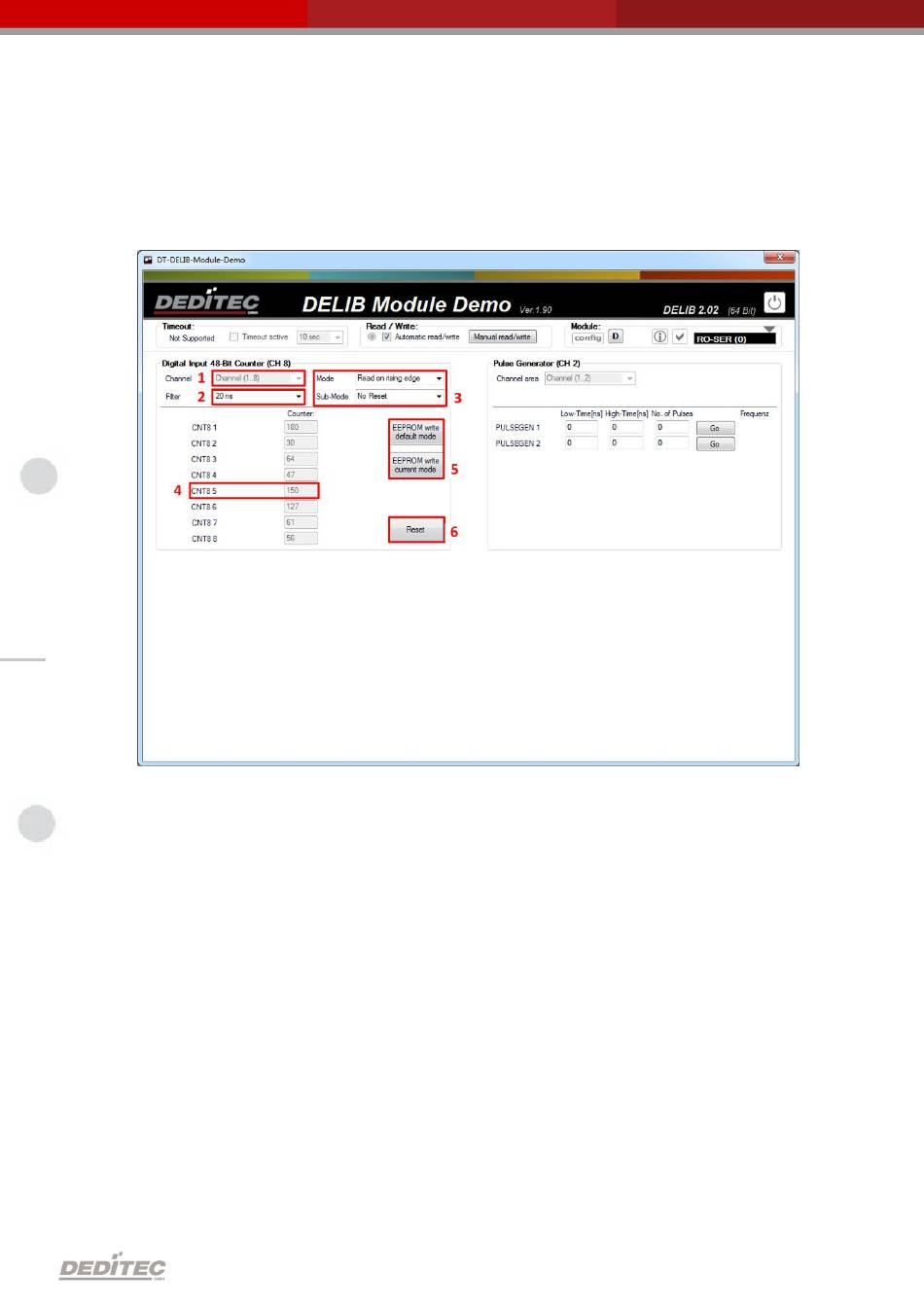

This example shows the 48Bit counter inputs of an RO-SER-CNT8
module.
1. Select the channel range to be displayed.
2. Select the input filter.
3. Select the counter mode.
4. The counter reading of counter channel 5 is 150.
5. The current counter mode and input filter of the input channels
can be stored in the module or reset to the factory setting.
6. Resets the count of the current channel range.
