4.2.1.3. Firmware update

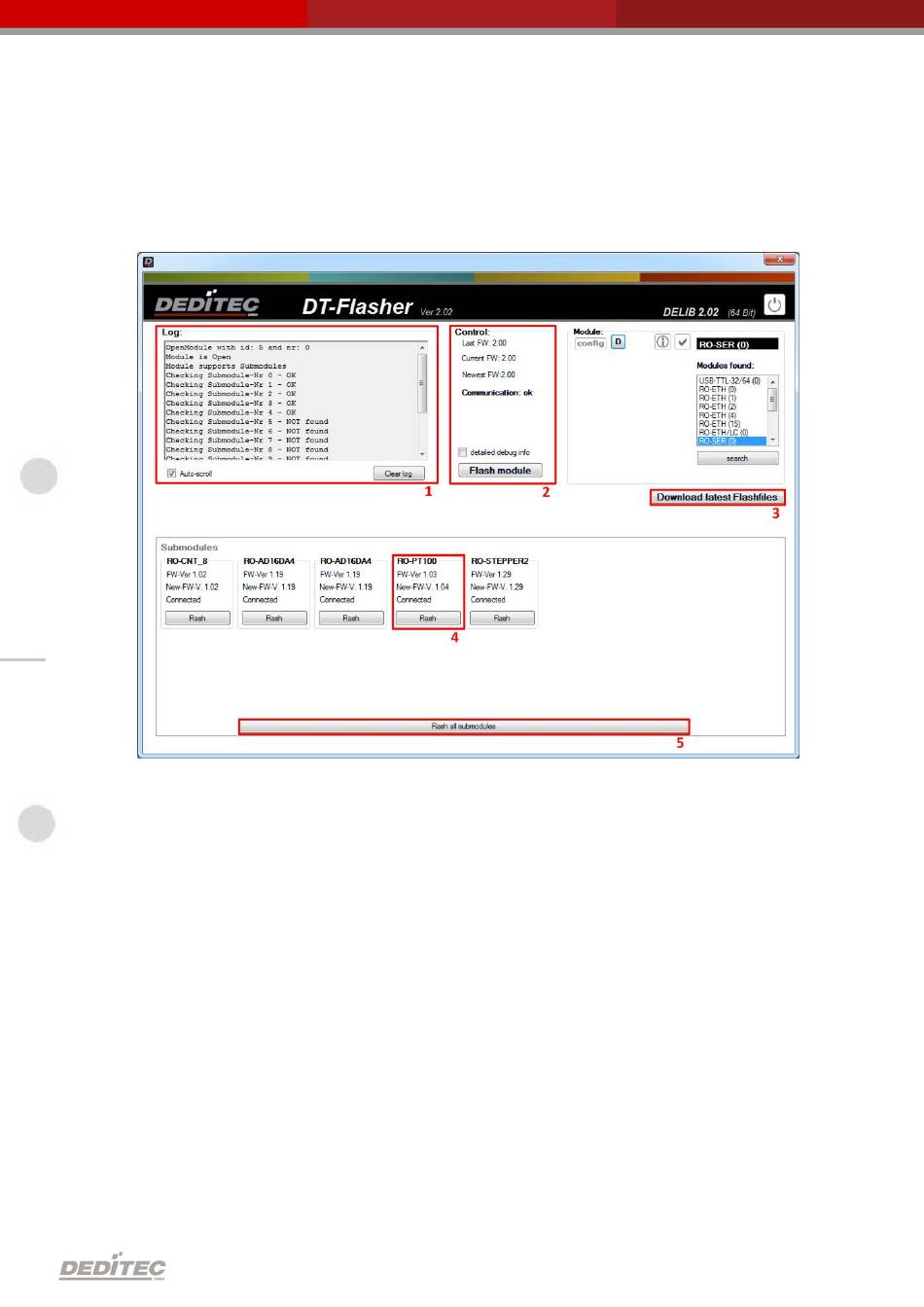

This example shows the module RO-SER-CNT8-AD32-DA8-
PT100-4-STEPPER2 before a firmware update.
1. Logbook - All messages during the firmware update are
displayed here. Auto-scroll determines whether to scroll down to
the last event automatically. Clear log clears the entire logbook.
2. Here you can get information about the interface module (in this
example, the RO-SER interface). Newest FW displays the latest
firmware version available for the module. Current FW displays the
version currently available on the module. After the module is
successfully flashed, Last FW shows the version that was played
before the firmware update. If the checkmark is set to detailed
debuginfo, detailed messages are written to the logbook (1) during
the firmware update. The firmware update for the interface module
is started with Flash module.
